1987-2006 Jeep Front Adjustable Track Bar (8155-01)

Description

Fits

Year	Make	Model	Trim
1987-1988	Jeep	Comanche	Laredo, Chief
1987-1988	Jeep	Cherokee	Chief
1987-1992	Jeep	Cherokee	Limited, Laredo
1987-1992	Jeep	Comanche	Pioneer,
1987-1990	Jeep	Cherokee	Pioneer
1987-1993	Jeep	Cherokee
1988-1992	Jeep	Comanche	Eliminator
1989-2001	Jeep	Cherokee	Sport
1991-1992	Jeep	Cherokee	Briarwood
1993-1998	Jeep	Grand Cherokee	Limited, Laredo
1993-1997	Jeep	Cherokee	Country
1993-1993	Jeep	Grand Cherokee
1994-2001	Jeep	Cherokee	SE
1994-1995	Jeep	Grand Cherokee	SE
1995-1995	Jeep	Grand Cherokee	Orvis
1996-1996	Jeep	Cherokee	Classic
1997-1997	Jeep	Grand Cherokee	Orvis
1997-2006	Jeep	Wrangler	Sport, SE
1997-1998	Jeep	Grand Cherokee	TSi
1997-2004	Jeep	Wrangler	Sahara
1998-1998	Jeep	Grand Cherokee	5.9 Limited
1998-2001	Jeep	Cherokee	Limited, Classic
2002-2006	Jeep	Wrangler	X
2003-2006	Jeep	Wrangler	Rubicon
2004-2006	Jeep	Wrangler	Unlimited
2006-2006	Jeep	Wrangler	65th Anniversary Edition

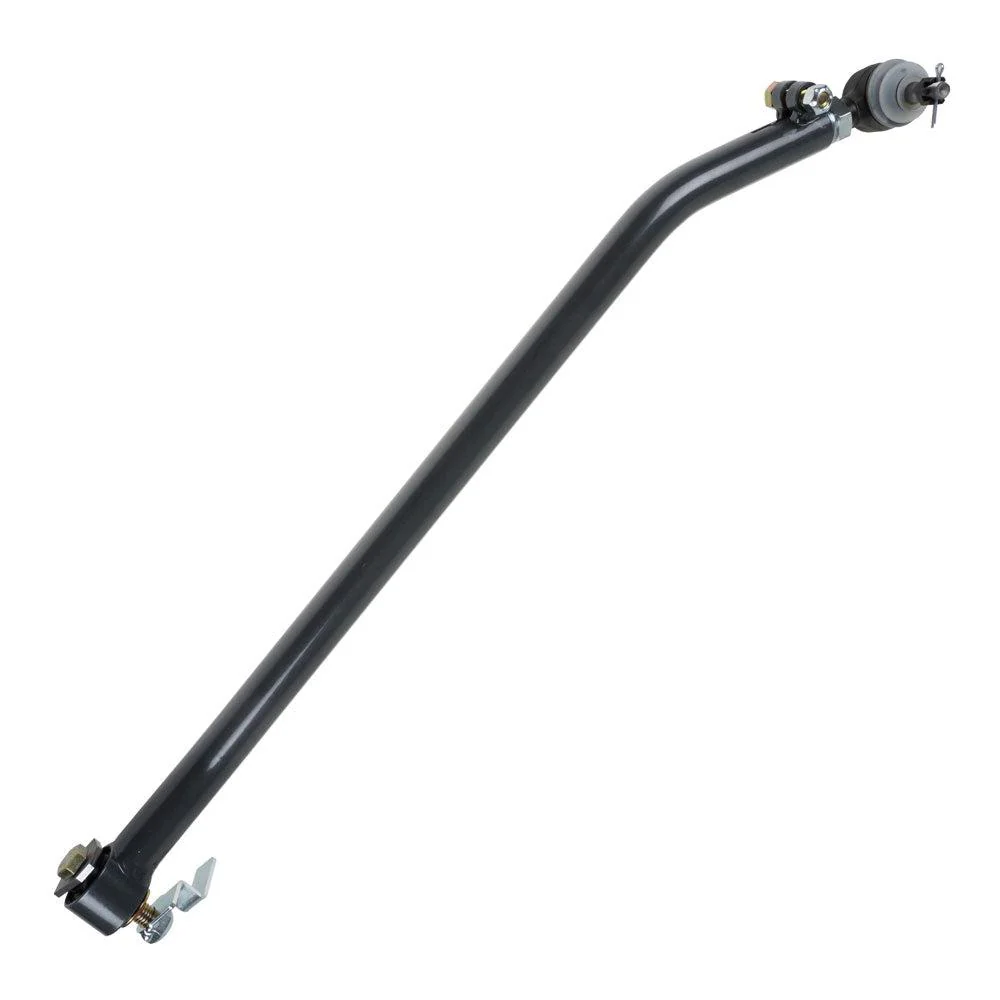

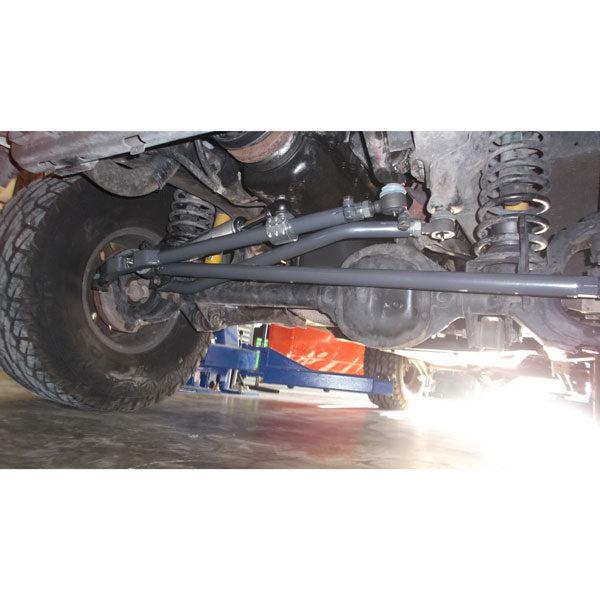

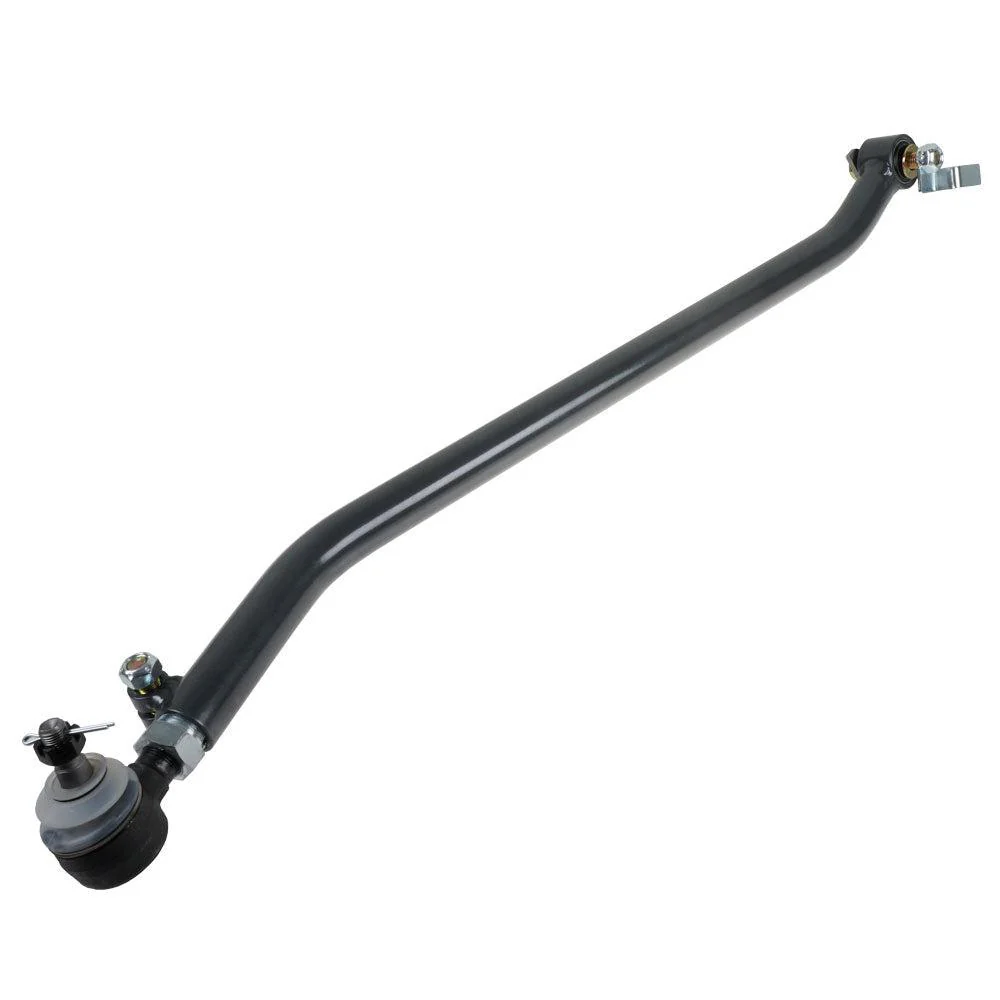

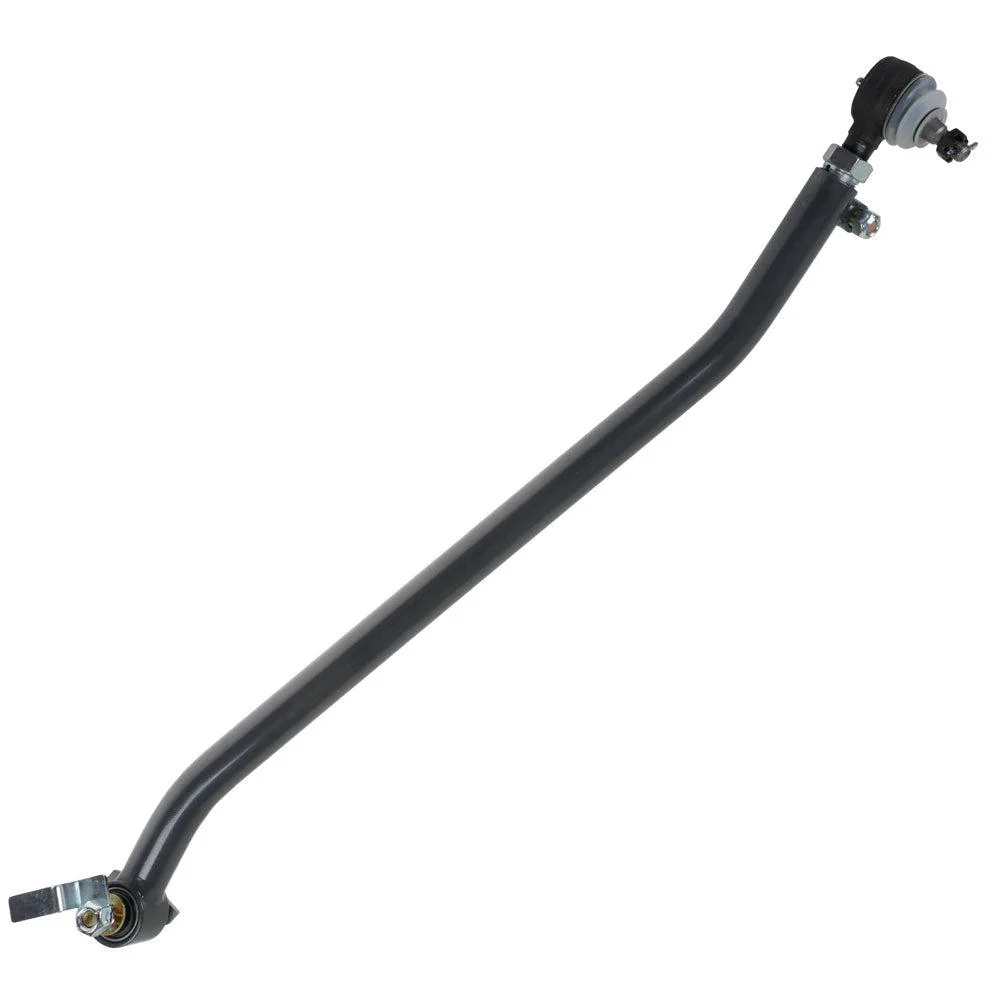

HD adjustable, front track bar designed as a factory-style replacement for TJ/LJ, XJ, ZJ, and MJ applications. It directly mounts to the factory tapered track bar mount on the frame but requires the axle mount to be drilled to 9/16" for added strength.  The track bar offers improved rigidity and allows centering of the front axle when running a suspension lift.

Part Number: 8155-01

Features

• Bolts into factory tapered track bar bracket on the frame
• Requires axle mount to be drilled to 9/16"
• Optional welding (required if desired to install axle gusset)
• Made from 1-3/8" 1018 CR Solid Round Barstock

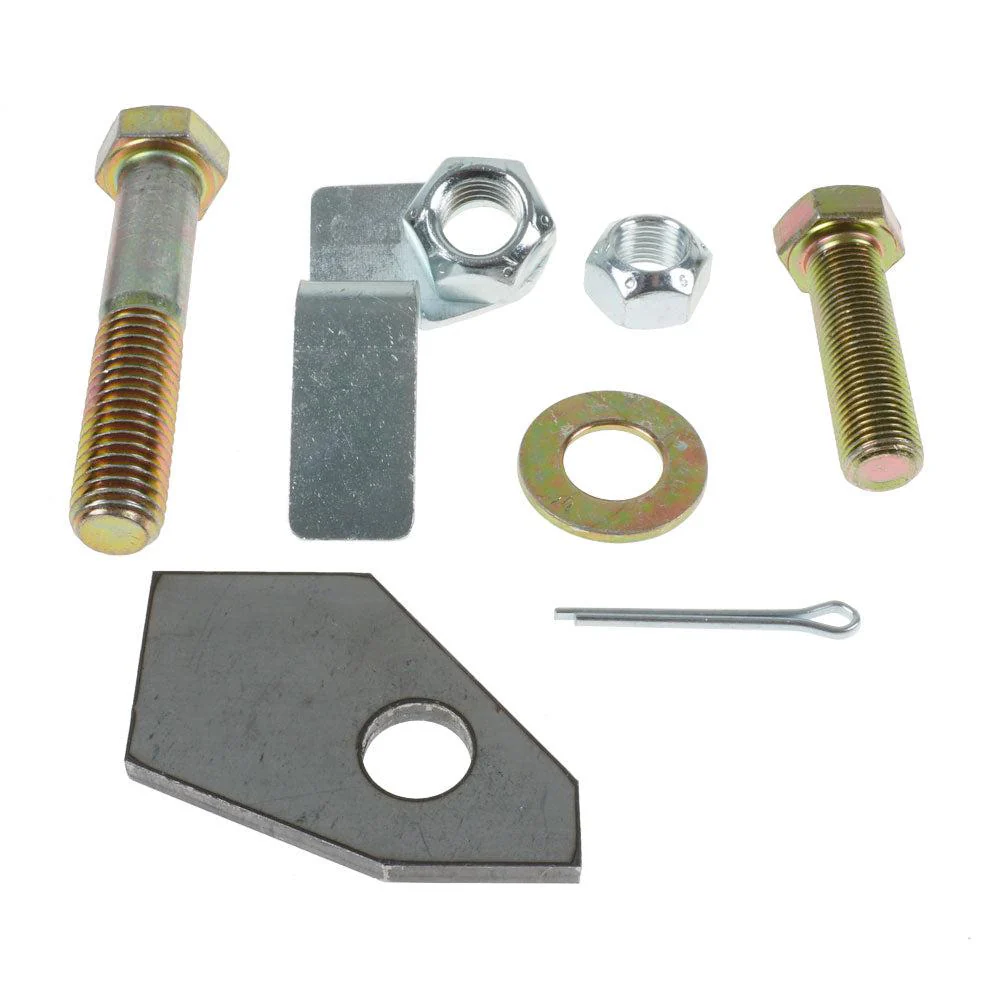

• Includes new Grade 8 mounting bolts and hardware
• Synergy double adjuster sleeve and pinch bolt assembly allows for adjustment of track bar length without removal from vehicle
• Suspension components feature an abrasive-resistant powder coat finish for maximum durability and corrosion resistance
• Fits 0-4" Lifts

Installation

Requires drilling. Sanding and welding are optional.

• Click Here

Notes

• 2.0" to 3.0" bump stop spacers will be required if the axle is pushed forward slightly from stock and an aftermarket diff cover is used. The larger diameter of the Synergy track bar and tie rod end will interfere with the diff cover if no bump stop spacer is used.
• We recommend cycling the suspension to full compression with the track bar installed to ensure no interference is occurring.
• Approximate collapsed length = 31 inch
• Approximate extended length = 32.4 inch
• Replacement bushing is 4323-01, replacement tie rod end is 4135-L
• Requires drilling. Sanding and welding optional
