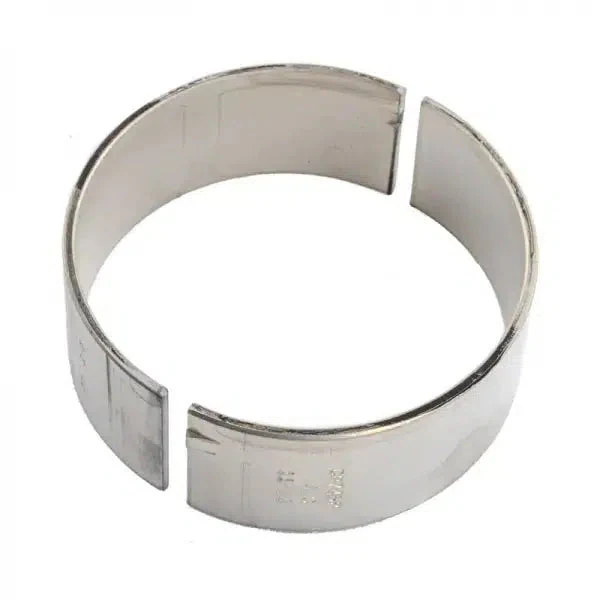

1989-2002 Cummins Performance Coated Rod Bearings (PDM-CB-1413HC)

Description

Fits

Year	Make	Engine
1989-2002	Dodge	5.9L Cummins

H series bearings have a medium level of eccentricity, high crush and rod bearings have a hardened steel back and thin overlay. These bearings also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.

The biggest benefit of coated bearings is preventing damage during cold starts and events where oil starvation is evident. Starting your car is almost the worst thing you can do as the oil has had time to drain out of the engine back into the pan. The oil is cold and thicker and takes time to get circulated throughout the engine, including to the crank bearings. The added dry film lubricant coating acts as a barrier between the bearing surface and the crank journal. Other benefits are less friction and longer bearing and crank journal life. The special coating also has moly and other ingredients that retain oil rather than repel it.

Part Number:  PDM-CB-1413HC

Features

• H - medium level of eccentricity, high crush and rod bearings have a hardened steel back and thin overlay
• H - enlarged chamfers for greater crankshaft fillet clearance
• HX - HX series bearings have and .001” extra clearance
• Coated bearings is preventing damage during cold starts

Notes

• These H and HX Clevite bearings were developed primarily for use in NASCAR-type racing but are suitable for all types of competition engines.
