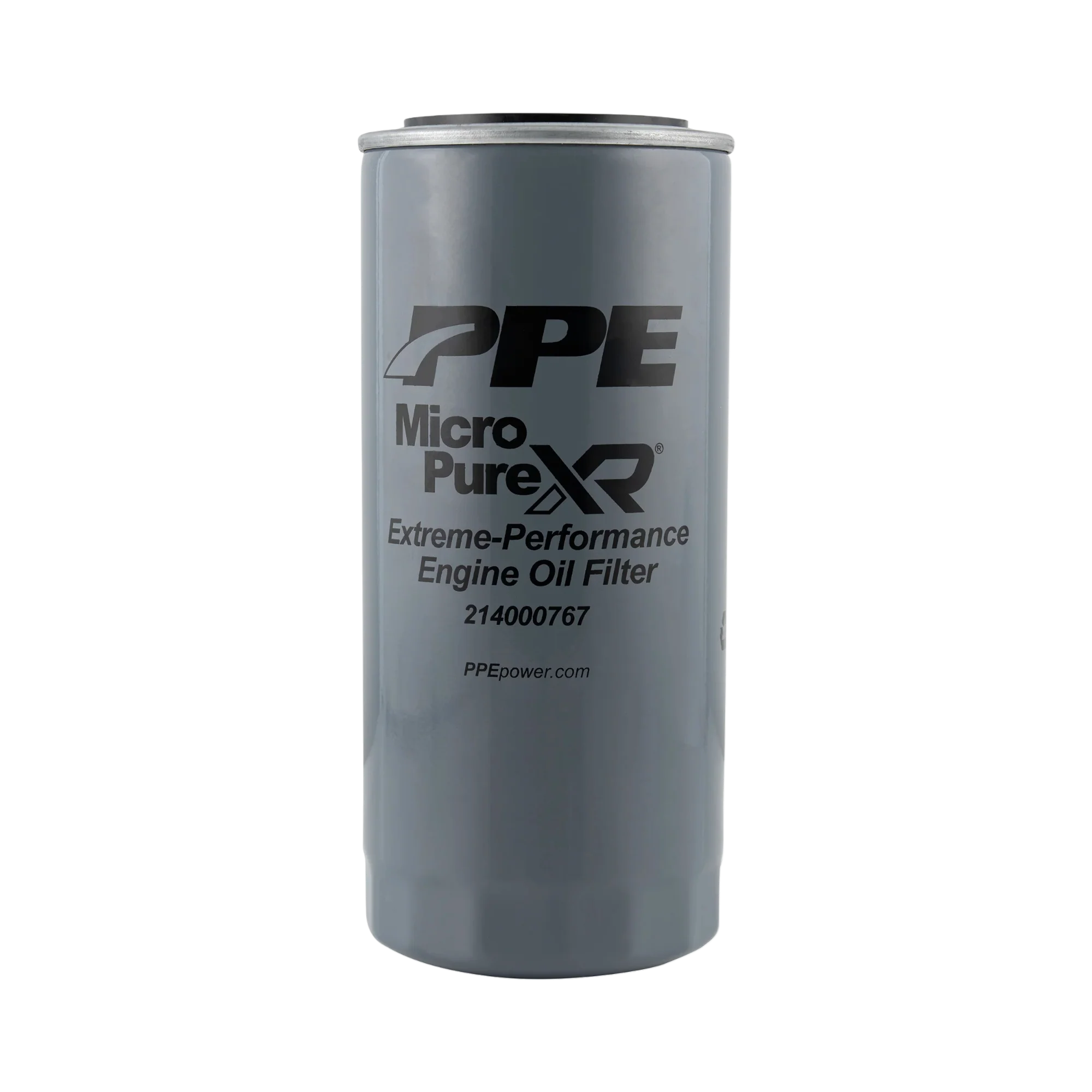

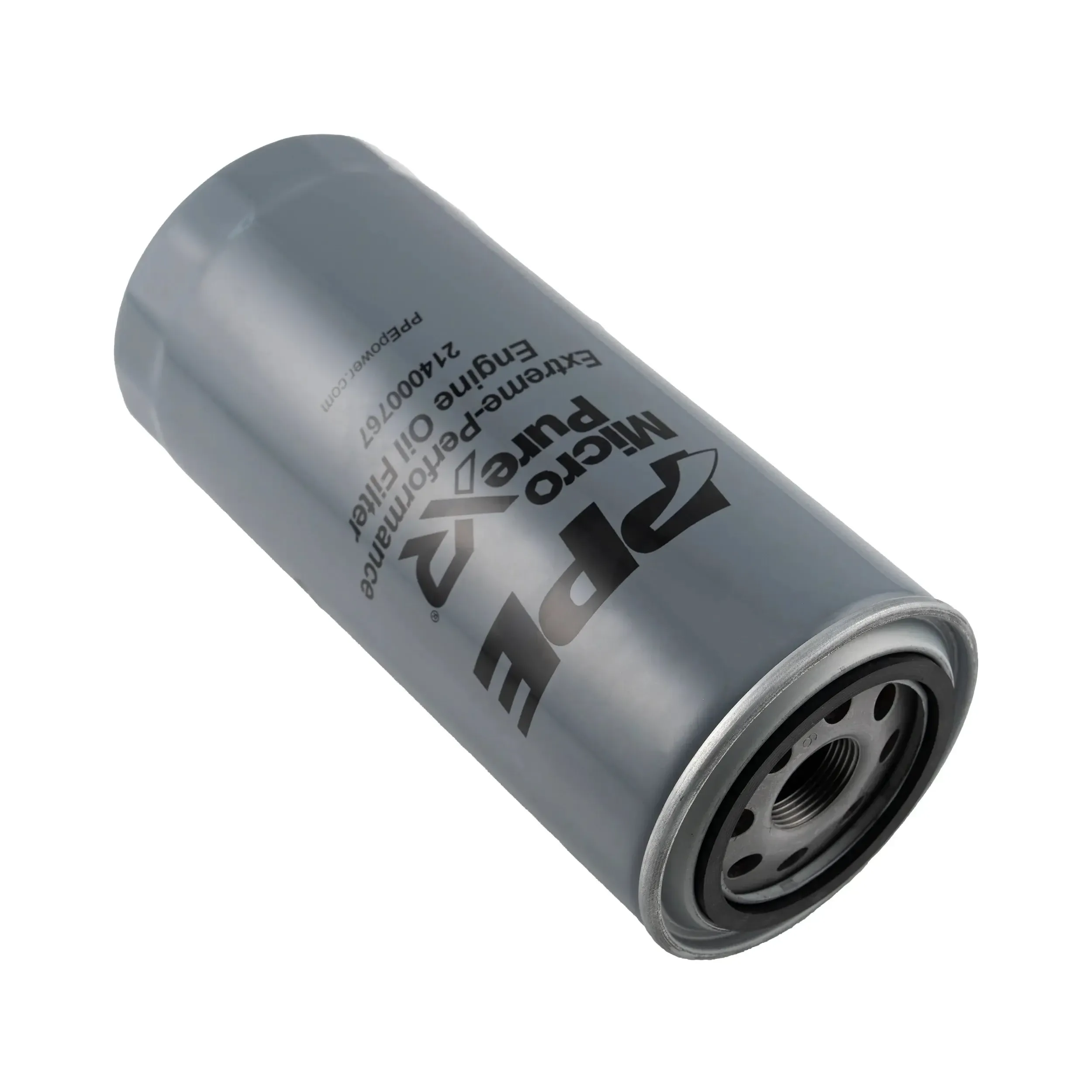

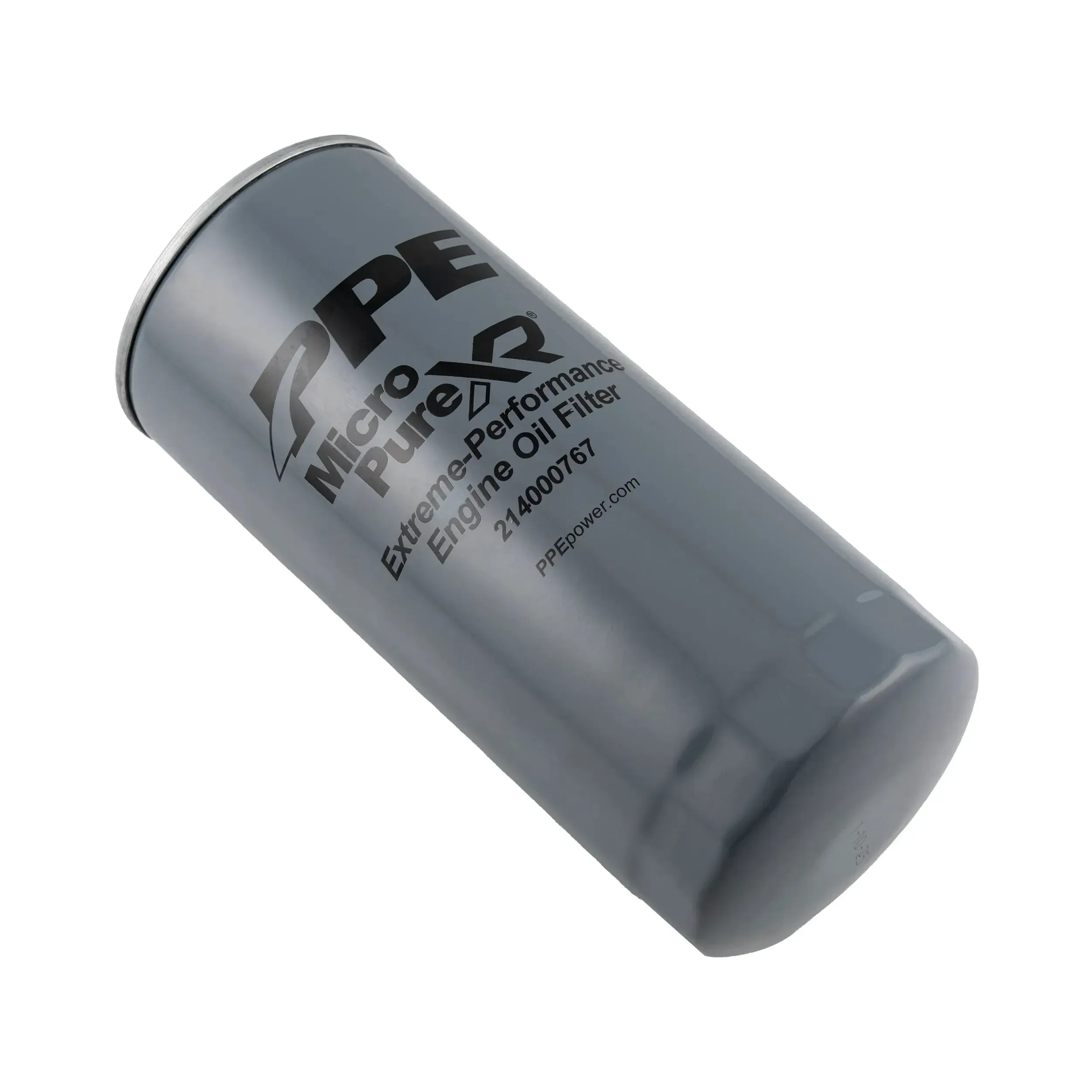

1989-2024 Cummins MicroPure XR® Engine Oil Filter (214000767)

Description

Fits

Year	Make	Model
1989-1993	Dodge	W250, W350, Ram 250, Ram 350 w/5.9L Cummins
1994-2006	Dodge	Ram 2500, Ram 3500 w/5.9L Cummins
2007-2009	Dodge	Ram 2500, Ram3500 w/6.7L Cummins
2010-2024	RAM	2500, 3500, 4500, 5500 w/6.7L Cummins



Upgrade your Cummins 5.9L or 6.7L with PPE’s MicroPure XR® oil filter for superior engine protection. With ultra-fine 5-micron filtration and reinforced construction, it extends oil life, prevents wear, and keeps your diesel running strong under heavy loads. Built for durability and peak performance, it’s the ultimate defence against contaminants.

Part Number: 214000767

OEM Part Number: MOPAR MO-285

Features

• 5-micron MicroPure XR® filtration
• 530 Square inches of ultra-fine synthetic microfiber media
• 15% increase over the stock filter
• Neodymium magnet captures ferrous debris
• High-strength steel base plate
• Durable metal center tube support
• TorqSTOP anti-over-tighten technology
• Silicone anti-drainback valve
• Heavy-duty coil spring seal
• Pleat-locking spiral bead

Additional Information

• Outer Diameter 3.7 inch (94mm)
• Thread Size 1'-16
• Total Height 8.4 inch (213mm)
• Gasket O.D. 2.81 inch (71.5mm)
• Gasket I.D. 2.44 inch (62mm)
• Filter Media Type Synthetic
• Anti-Drainback Valve Silicone
• Anti-Drainback Valve Temperature Rating 275°F
