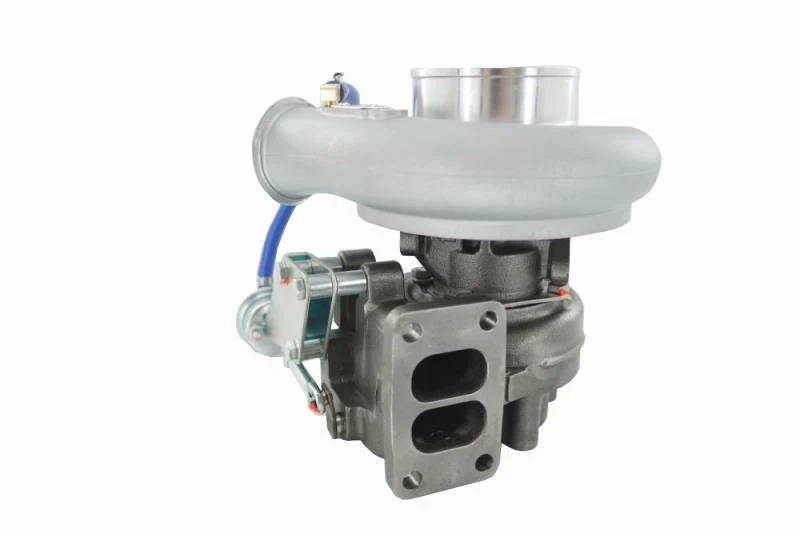

1991.5-2002 Cummins Stealth Mach 1 Turbocharger (CPS200228)

Description

Fits

Year	Make	Model	Engine
1991.5-2002	Dodge Ram	2500/3500	5.9L Cummins

The Stealth Mach 1 Turbo is an upgraded bolt-on turbocharger for 1991.5-2002 Dodge Ram 2500/3500 trucks with the 5.9L Cummins diesel engine. If you want streetable power out of a single turbo with improved top-end performance, this drop-in upgrade is capable of supporting up to 650 RWHP with proper supporting modifications.

Designed for 12-valve and early 24-valve 5.9L Cummins applications, the HX35 Stealth Mach 1 features a custom profile 11-blade 64mm billet compressor wheel matched to a modified compressor cover, plus a custom high-flow turbine inside a twin-scroll 12cm exhaust housing.

Part Number: CPS200228

Features

• 650+ RWHP peak power potential
• 64mm billet compressor wheel
• 40+ psi boost at sea level
• High spring-rate wastegate assembly
• 360-degree thrust bearing
• High-flow turbine wheel
• Quick spool-up
• Wide torque curve
• 12cm exhaust housing

Notes

• Installation gasket kit and downpipe adapters included
• Designed as a drop-in replacement for 12-valve and early 24-valve 5.9L Cummins applications

Additional Info

64mm Billet Compressor Wheel

• Custom profile 11-blade 64mm billet compressor wheel
• Matched to a modified compressor cover for improved airflow
• Designed to support higher top-end power while retaining streetable drivability

High-Flow Turbine Wheel

• Custom high-flow turbine wheel improves exhaust energy management
• Supports quick spool-up and a wide torque curve
• Works with the 12cm exhaust housing to support higher power levels

12cm Exhaust Housing

• Twin-scroll 12cm exhaust housing
• Designed to support strong top-end performance
• Helps maintain responsive drivability for a single-turbo setup

Wastegate And Bearing Upgrades

• High spring-rate wastegate assembly
• 360-degree thrust bearing
• Built for higher boost and performance-focused street use

Warranty

• One Year Limited
