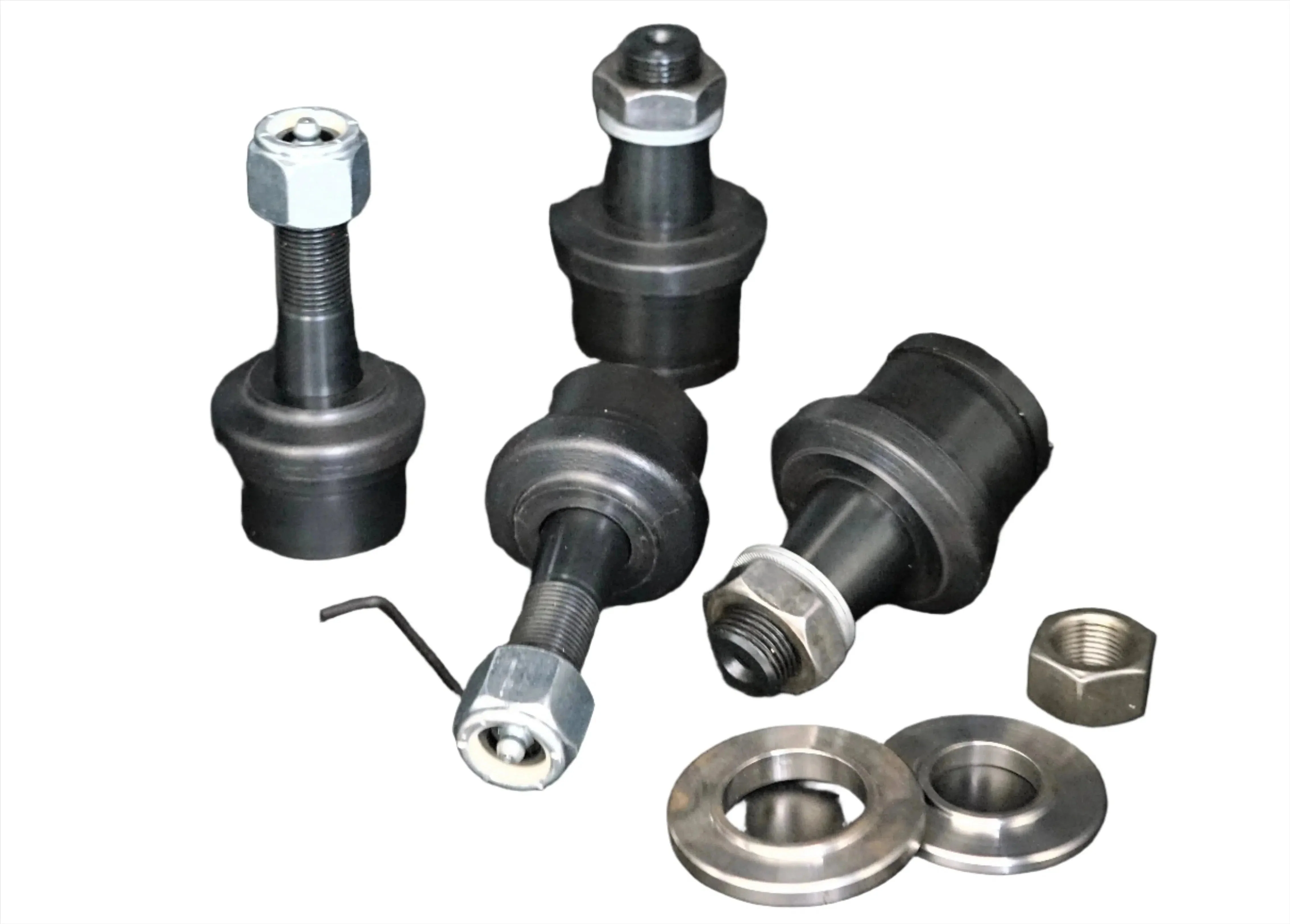

1992-2022 Powerstroke & Cummins Dana 60 Upper & Lower Ball Joint Kit (8607-80026-KIT)

Description

Fits

Year	Make	Model	Engine
2002-2005	Ford	Excursion	Any
1992-1997	Ford	F350	Powerstroke
1999-2022	Ford	F250 & F350 Superduty	Powerstroke
1999-2004	Ford	F450 Superduty	Powerstroke
1999-2004	Ford	F550 Superduty	Powerstroke
1994-1999	Dodge/Ram	2500/3500 4WD	Cummins

Ball joints are one of those aftermarket parts that you want to make sure are top quality. A bad ball joint can leave you stranded out on the highway, the trail, or the drag strip that sucks! EMF only does ball joints so you can trust these units to keep you driving! The Dana 60 is legendary, why not have a Ball Joint that is just as good!

Part Number: 8607-80026-KIT

Features

• Sold in a Set of 4
• Dana 60 Regular Size Upper Ball Joint Housing Measurement - 1.751"
• Dana 60 Regular Size Lower Ball Joint Housing Measurement - 1.979"
• Fully Serviceable, Rebuildable and Greaseable
• Removeable race and pin
• 4140 HTSR Material
• Gas Nitriding is a second heat treating process on the material resulting in up to a 30% strength increase
• Black corrosion resistant coating

Installation

• Click Here

Notes

• The Install Tools for the Upper and Lower Ball Joint are to avoid damaging the Rings when pressing the ball joints into the knuckle using a suitable Ball Joint Press. These are MANDATORY to avoid damage to the ring, we will not warranty damaged rings due to not using the provided washers.

Warranty

• Life-Time Warranty against Material and Manufacturers Defects. EMF will replace part of or the entire unit if it is determined to be an issue that falls under this category.  The customer is encouraged to contact EMF directly to determine the cause of the fault and to receive warrantied products.

• Warranty does not cover breakage due to misuse of the product, improper installation or as a result of another component failure on the vehicle.

• EMF Ball Joints are meant to be rebuilt, which means the internal races and pins will wear over time under normal circumstances. The internal race and pin components are not covered by the replacement Warranty unless it is determined there is a manufacturer defect that caused premature wear.  In order to maximize your product life, regular maintenance which includes tightening of the cap and greasing is required.
