1994-2002 Cummins Billet S363 68MM Upgraded Replacement Turbo (9402B636814F)

Description

Fits

Year	Make	Engine
1994-2002	Dodge Ram	5.9L Cummins

All Smeding Diesel Parts are Built To Order in Texas and are special orders, which can take longer than normal for fulfillment. If you're in a rush, contact us and we can make special arrangements.

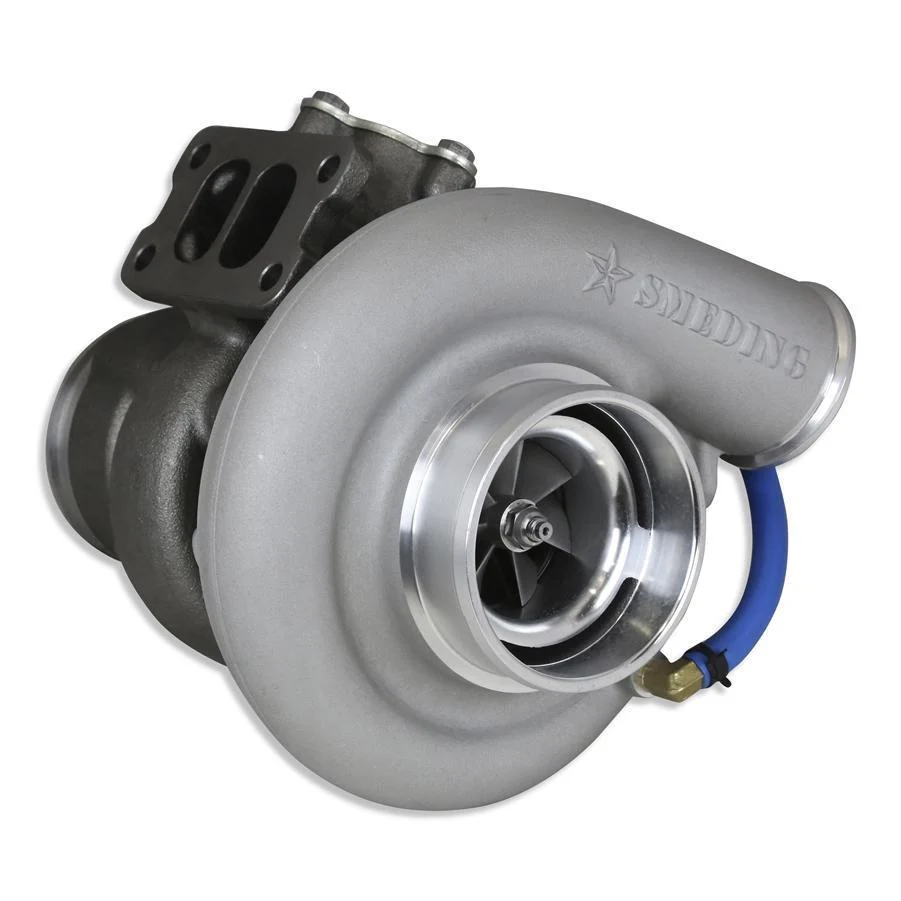

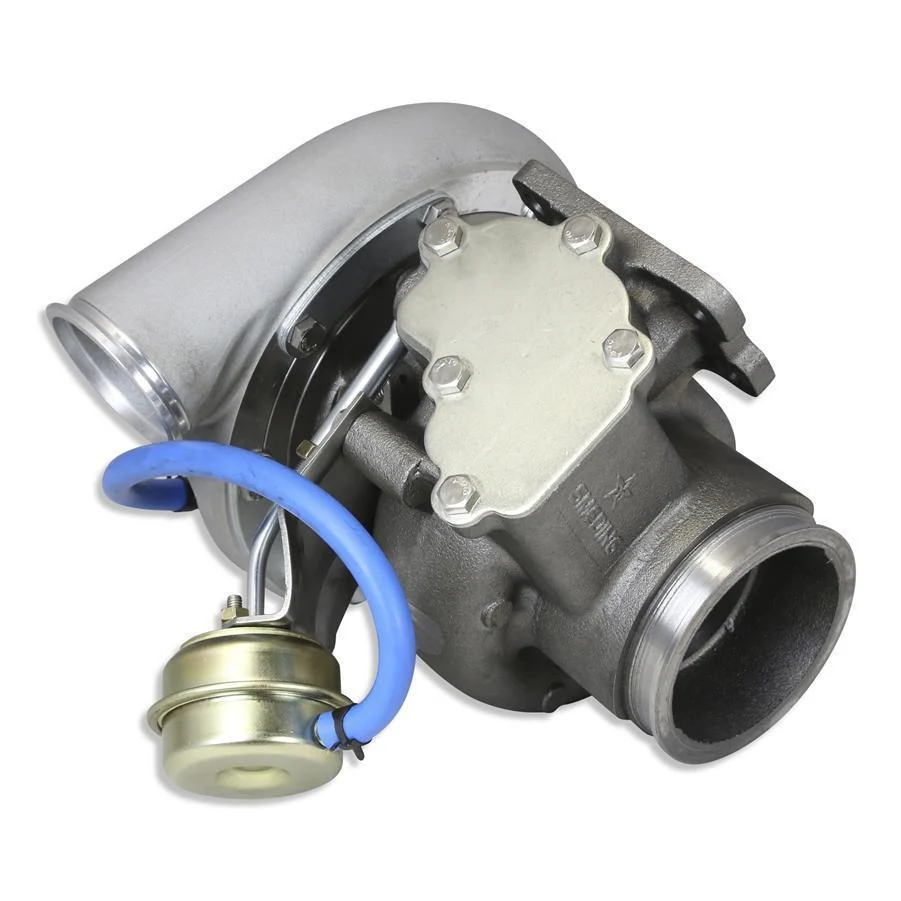

Specially designed for the Cummins owner with larger fueling upgrades, but also wants a simple, yet effective bolt-on replacement turbocharger. This S363 features an extended tip 63mm billet compressor wheel with a 68mm turbine wheel, Twin Scroll Divided T3 Gated Housing in 14cm .80 or 12cm .70 A/R, and 36- 40PSI standard wastegate pressure with the ability to adjust it if desired. Fully capable of 600HP, effectively providing you with increased power, spool-up, and enhanced efficiency.

Part Number: 9402B636814F

Features

• Drop-in replacement
• Designed to handle mild to moderate fueling upgrades
• Equipped with an extended tip 63mm billet 6-blade compressor wheel
• Supports up to 600HP

• 68mm turbine wheel
• Exhaust housing: Twin scroll divided T3 gated housing available in 14cm .80 A/R. or 12cm .70 A/R
• Wastegate on both housings will be set to 36-40 PSI, which can be adjusted

Additional Info

Housing Size:

• 12cm housing will be faster spooling, but will get hot after long, wide-open throttle pulls due to the size
• 14cm housing will be a little slower spooling, but will handle wide-open throttle situations better
