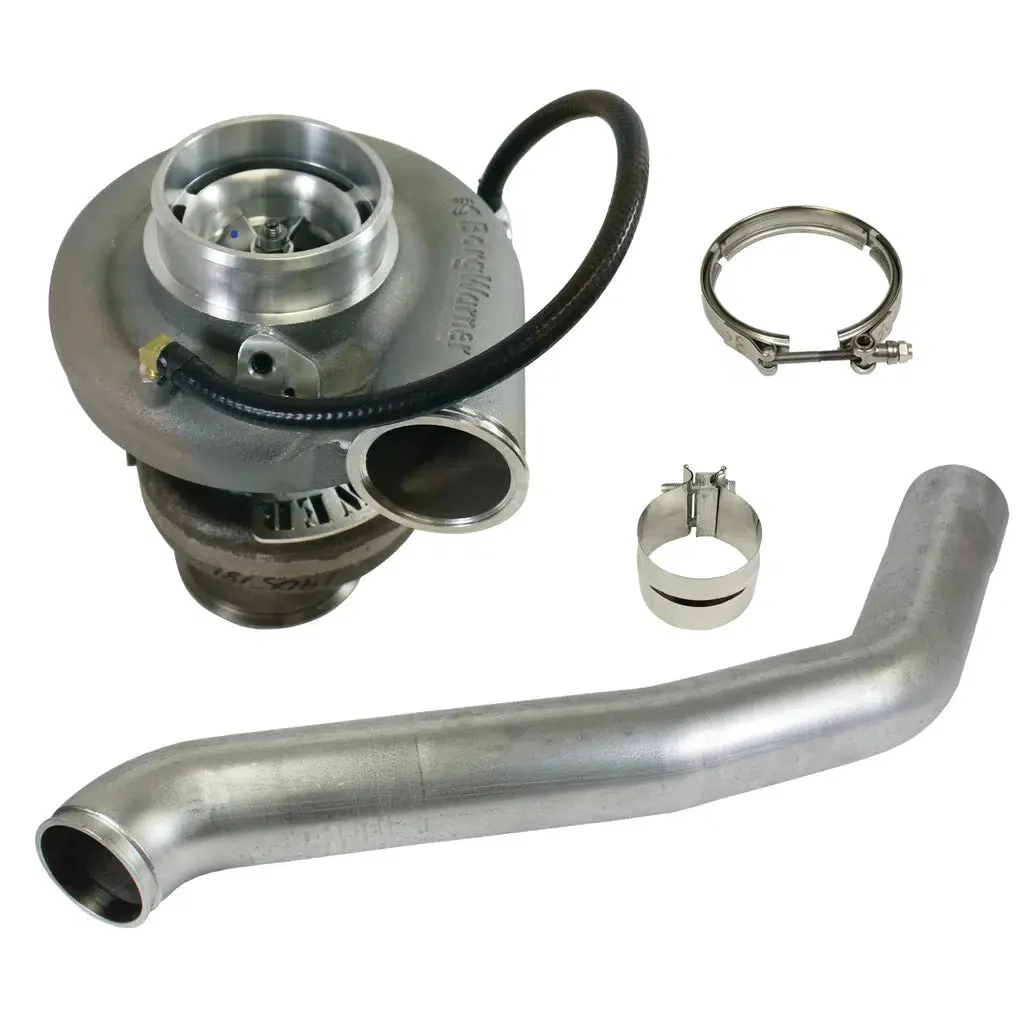

1994-2002 Cummins Super B Killer SX-E S363 Turbo Kit - C/W HX40 Down Pipe (1045260)

Description

Fits

Year	Make	Engine
1994-2002	Dodge Ram	5.9L Cummins 12 & 24 Valve

Comp Wheel: 63mm 2.48in

Turbine Wheel: 76mm 2.99in

A/R Ration: 0.80

Flow: 79 Lb/min

HP Rating: 550hp (depending on truck configuration)

If you are looking for more power, better response and dependability check out the BD Deisel Cummins 5.9L Single Turbo kits. These kits are an easy bolt-on performance replacement for your OEM turbo. This kit comes with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD-exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

Part Number: 1045260

Features

• BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
• The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
• Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
• The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
• BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
• Kit comes with downpipe, V-band clamp, band clamp
• Comp Wheel: 63mm 2.48in
• Turbine Wheel: 76mm 2.99in
• A/R Ratio: 0.80
• Flow: 79 Lb/min
• Approximate rated 550hp (depending on truck configuration)

Notes

• Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
