1999-2004 Powerstroke 8" Lift Kit (BDS317H)

Description

Click here to customize this Kit

Fits

Year	Make	Model
1999-2004	Ford	F250/F350 Super Duty

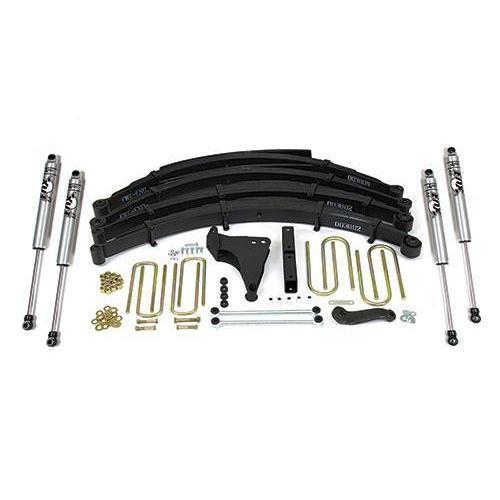

Renew and improve your 7.3L Powerstroke using the BDS Suspension 8" Lift Kit to give your truck a new stance and height not achieved before! This kit comes with two front Glide-Ride Leaf Springs with bolt-style leaf alignment clamps, anti-friction pads, and tapered leaves for a smooth ride. There's always a risk of lifting your truck and ruining how it drives, this BDS kit is designed to retain the factory driving characteristics as best as you can while giving you the most aggressive stance!

Part Number: BDS317H

Features

• 8" Front & Rear GlideRide Leaf Springs
• Fox or NX2 Series shocks
• Easy, 100% Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear

Tire & Wheel Combinations:

• 38" x 12.50" w/ 16 x 10 and 4-4.5"

Additional Info

• These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are halfway between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• These trucks were produced both with and without a top-mounted overload spring. There is an extra leaf that mounts on top of the rear leaf pack. You will need to know how your truck is equipped before ordering.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the accessories section.

Notes

• These trucks were manufactured with two different styles of front u-bolts. You will need to know if your front leaf spring u-bolts are square or are halfway between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123406 drop kit in the options section.
• The front and rear driveshaft will need to be lengthened and or modified to eliminate any drive-line vibrations.


Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
