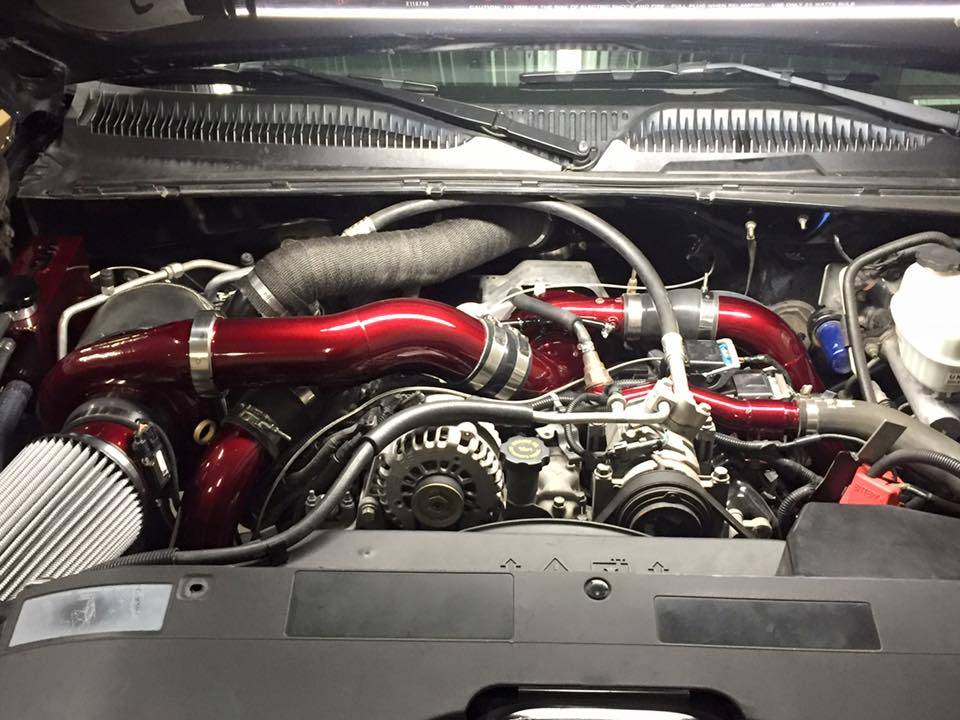

2001-2004 Duramax S400 Stock Twin Turbo Kit (WCF100570)

Description

Fits

Year	Make	Engine
2001-2004	GM	LB7 6.6L Duramax

Compared to a single turbo setup; this compound setup will give you better response, quick spool up, broader RPM range, increased fuel economy & more power. With a small turbo providing low RPM response, and a larger turbo producing power at a higher RPM. End result; better low-end torque, strong mid-range, and superior top-end performance.

Part Number: WCF100570

Features

• Atmosphere Turbo Pedestal with Built-in Oil Return Fitting

• 3" One Piece Y-bridge with HD Bead roll end

• 3" cold side intercooler pipe

• 4" Turbo Down Pipe

• 3" Turbo Hot Side Cross Over Pipe

• 5" Intake

• Dry Air Filter

• Outerwears Pre-Filter cover

• Coolant Overflow Tank with Hoses, Fittings, & Low Coolant Sensor

• Stainless steel oil feed and drain lines with fittings

• 3 ½" Cold Side Charge Pipe

• 3 ½" Turbo Inlet Horn

• Silicone Boots

• T-Bolt Clamps

• V-Band Clamps

• Heat Wrap & Clamps
• High Temp Coating on Hot Side Pipes

• Powder Coating

Notes

• This product is not on order estimated average lead time is 25+ business days

• If you are not purchasing the turbo from Wehrli you must specify the brand of turbo you are using, some Turbo's you may be required to ship to use for mock-up to build the kit.
