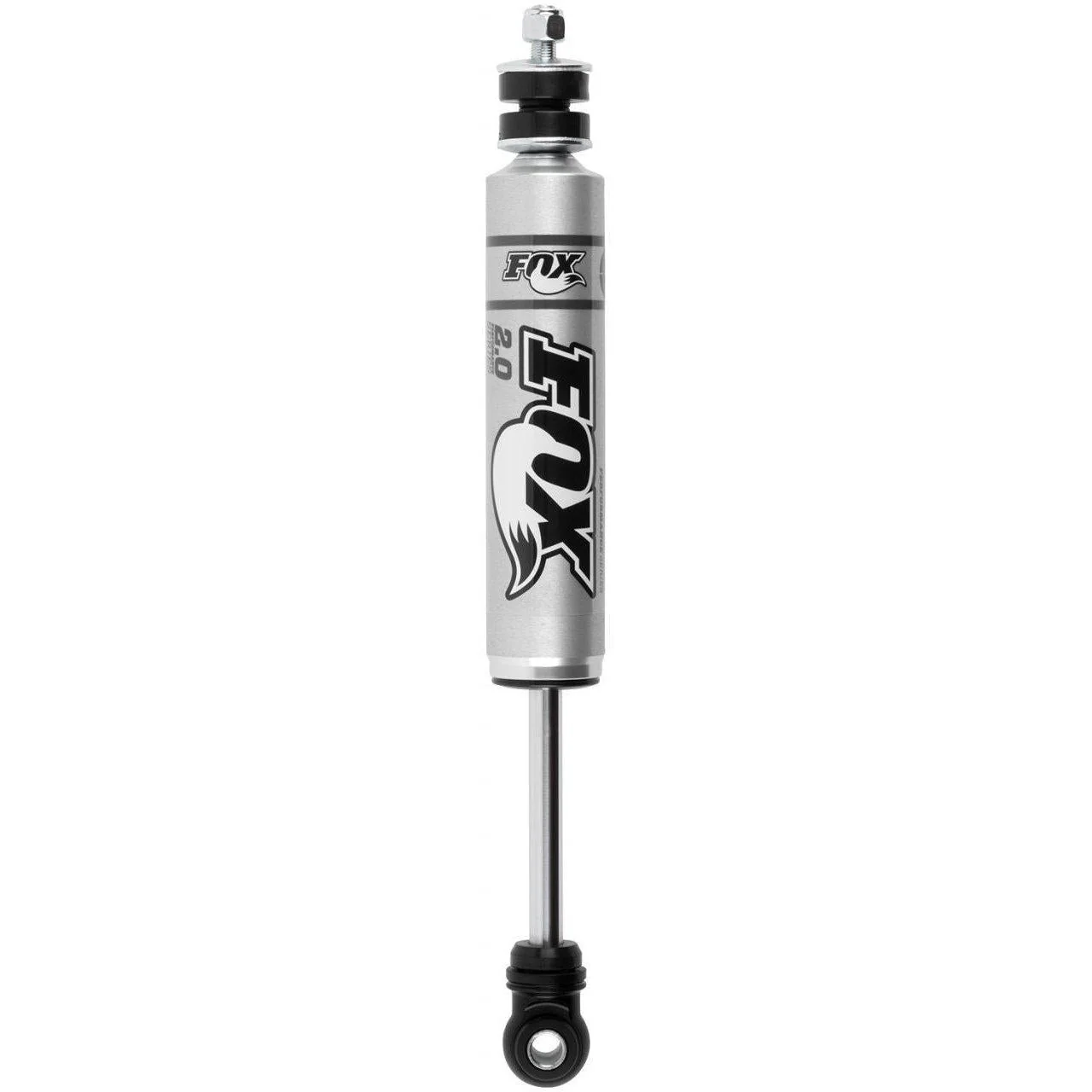

2001-2013 Duramax Front 0-2" Lift 2.0 Performance Series Shock (980-24-663)

Description

Fits:

Year	Make	Model	Lift	Wheel	Position
2001-2007	Chevrolet	1500	0-1"	ALL	Front
2001-2007	GMC	1500	0-1"	ALL	Front
1999-2019	Duramax	2500	0-1"	ALL	Front
2001-2019	Duramax	3500	0-1"	ALL	Front
2000-2013	Chevy	Suburban	0-1"	ALL	Front
2000-2013	GMC	Yukon	0-1"	ALL	Front
2002-2006	Chevrolet	Avalanche	0-1"	ALL	Front
2003-2009	Hummer	H2	0-1"	4WD	Front

By utilizing Fox's race-proven damping control, these 2.0 Performance Series Shocks provide a comfortable on-road ride and predictable off-road handling even in the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust.

Inside you will find their race-proven performance valving technology as well as their Internal Floating Piston (IFP) mono-tube design which separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high flow damping piston matched with application-specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

 Part Number: 980-24-663

Features

Body	2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating	Clear-anodized for a durable finish
Reservoir	Internal IFP mono-tube reservoir design
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	5/8" hard chrome plated heat-treated alloy steel
Piston	Race-developed high-flow piston design
Valving	Application-specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings	Quiet nitrile rubber allows for increased suspension articulation
Extended	16.050"
Compressed	10.950"
Travel	5.100
Top Mount	Stem Top
Bottom Mount	Eyelet



Installation

• Click Here For Installation Instructions
