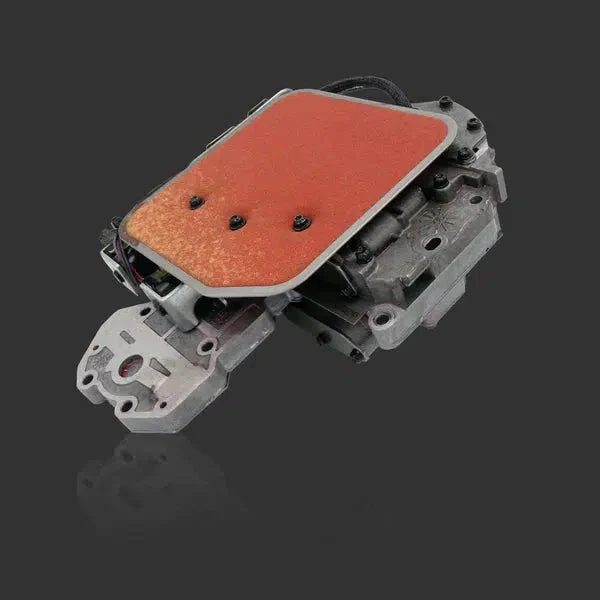

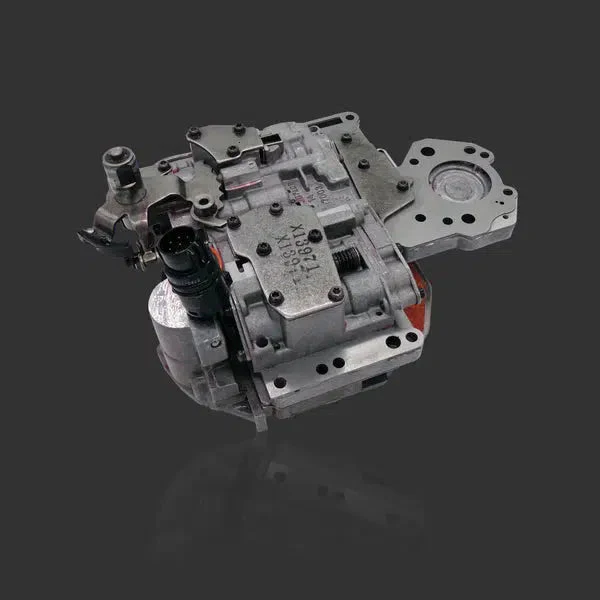

2003-2007 Cummins 48RE Full Manual Valve Body (MPTFM-MPT/MPTFM-MPT2)

Description

Fits

Year	Make	Engine
2003-2007	Dodge Ram	5.9L Cummins w/ 48RE Transmissions

Muldoons Full manual valve body; provides your 48RE with second gear lock up, this locks torque converter as soon as second gear is manually shifted, lockup switch must be on. And with no governor pressure solenoids/ transducers you will have a much more consistent shifts on high pressure valve bodies.

Part Number: MPTFM-MPT/MPTFM-MPT2

Features

• 2nd Gear Lockup
• Locked 4-3 Downshift
• No use of governor pressure solenoids/ transducers
• Valve Body Pressure adjustment and guideline instructions
• Tested OD/TCC Solenoid
• Custom laser cut separator plates
• Castings flat sanded
• Castings cleaned in ultrasonic cleaner
• All threads checked and repaired if needed
• Bores vacuum checked and repaired for excessive wear
• Static line pressure set to 150PSI and 190PSI in 4TH/TCC Lockup. Valve body does not require any external line pressure adjustment.

Notes

• MPT manual valve bodies are not shipped with 48RE rooster combs, if your manual valve body is being installed in a 48RE, please keep your existing rooster comb and swap it when you receive your manual valve body.
• Muldoons accepts 47 or 48 valve bodies as a core. If your valve body has been modified with anything other than a Transgo shift kit, please email us with images of your core. We do NOT accept BD, ATS or Sonnax valve bodies as cores.
