2003-2007 Power Stroke Stealth Mach 2 Turbocharger (CPS200333)

Description

Fits

Year	Make	Engine
2003-2007	Ford Super Duty	6.0L Power Stroke

The Stealth Mach 2 Turbo is an upgraded stock-appearing turbocharger for 2003-2007 Ford Super Duty trucks with the 6.0L Power Stroke diesel engine. Built for serious airflow and strong drivability, this charger is designed to support everything from tune-only trucks to higher-power competition-focused builds.

With a billet compressor wheel, oversized turbine, high-flow vanes, matched unison ring, ported exhaust outlet, and 360-degree thrust bearing, the Stealth Mach 2 is built to reduce drive pressure, improve EGT control, retain usable throttle response, and deliver strong power potential without giving up the factory-style fitment.

Part Number: CPS200333

Supersedes: DM1583090302000

Features

• 750HP capable in competitive use
• 67mm billet compressor wheel
• 77.5x71mm turbine
• Stock-appearing design
• 15mm billet high-flow vanes with matched unison ring and proprietary dowel pin spacing
• Ported exhaust outlet
• Fully functional exhaust brake
• Quick spool-up for usable horsepower
• Wide torque curve

Notes

• Higher power levels require proper supporting modifications
• A 6-blade compressor wheel option may be louder, but is not recommended for towing at higher altitudes

Additional Info

Billet Compressor Wheel

• 67mm compressor wheel is milled from high-strength 7075 aluminum
• 11-blade design is engineered to maximize peak power while reducing the potential for surge
• Designed with careful MWE groove width, MWE groove placement, and diffuser clearance for improved power and drivability

Turbine Wheel

• 77.5x71mm turbine is larger than the factory turbine and Garrett Powermax turbine
• Larger turbine helps reduce drive pressure under heavy load
• Supports near 1:1 drive-to-boost ratio under most operating conditions

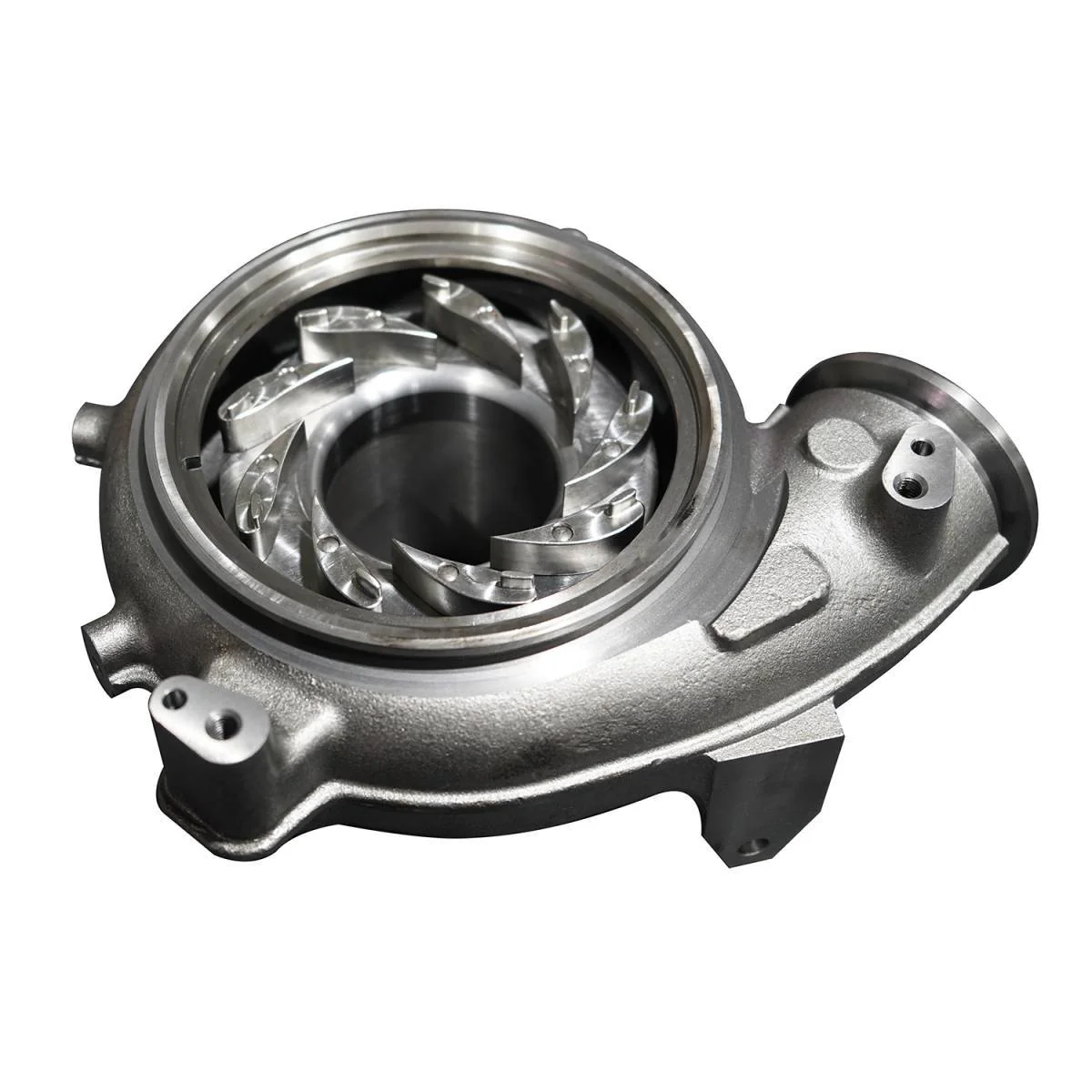

Vane And Unison Ring Assembly

• 15mm billet high-flow vanes provide increased exhaust flow
• Matched unison ring actuates the taller turbine inducer and larger vanes
• Proprietary dowel pin spacing supports proper vane operation

Durability And Exhaust Flow

• 360-degree thrust bearing helps minimize thrust wear during competition use
• Ported exhaust outlet improves exhaust flow
• Lower drive pressure helps increase power and reduce EGTs

Warranty

• One Year Limited

OE Replacement Part Numbers

• 725390-5006
• 720523-5003
• 743250-5024
• 743250-5013
• 743250-5025
• 743250-5014
• GT3782VA
• 743250-5014S
• 1832159C91
• 1845178C98
• 720523-9003
• 725390-5003
• 725390-5003S
• 720523-9005
• 725390-9001
• 725390-9002
• 777469-5001S
• 170-025-1152
• 170-025-0110
• 1837984C91
• 1837984C94
• 1832160C91
• 1840054C98
• 1870714C91
• 5010089C95
• 1846764C91
• 3C3Z6K682CCRM
• 3C3Z6K682AARM
• 3C3Z6K682BARM
• 3C3Z6K682
• CBRM743250-5013S
• 743250-9001
• 743250-9002
• 743250-9004
• 743250-9013
• 772441-5001S
• 170-025-1179
• 170-025-0111
• 1843761C93
• 1854480C91
• 1846767C91
• 1846765C91
• 1845322C91
• 4C3Z6K682CDRM
• 4C3Z6K682BA
• 4C3Z6K682CBRM
• 4C3Z6K682AARM
• 4C3Z6K682ARM
• 4C3Z6K682CCRM
• 743250-9005
• 743250-9014
• 170-025-1180
• 170-025-0109
• 1832255C91
• 1876493C91
• 5010147R93
• 5010399R91
• 1854593C91
• 1858116C91
• 5C3Z6K682CCRM
• 5C3Z6K682BA
• 5C3Z6K682DA
• 5C3Z6K682CARM
• 5C3Z6K682AA
• 5C3Z6K682CA
• 5C3Z6K682A
