2003-2007 Cummins 6" Coilover Lift Kit (BDS647F)

Description

Click here to customize this Kit

Fits

Year	Make	Model
2003-2007	Dodge / Ram	2500
2003-2007	Dodge / Ram	3500

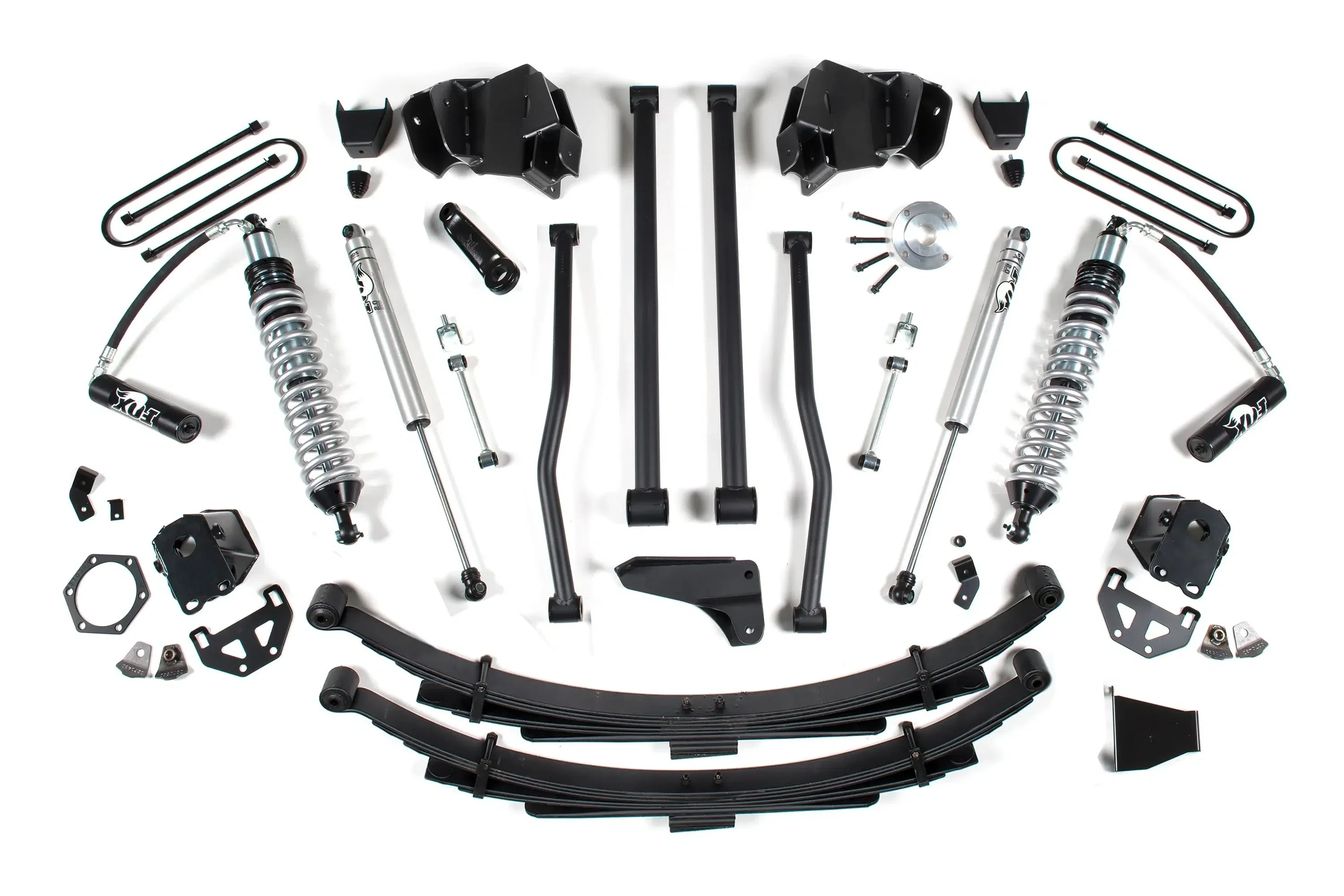

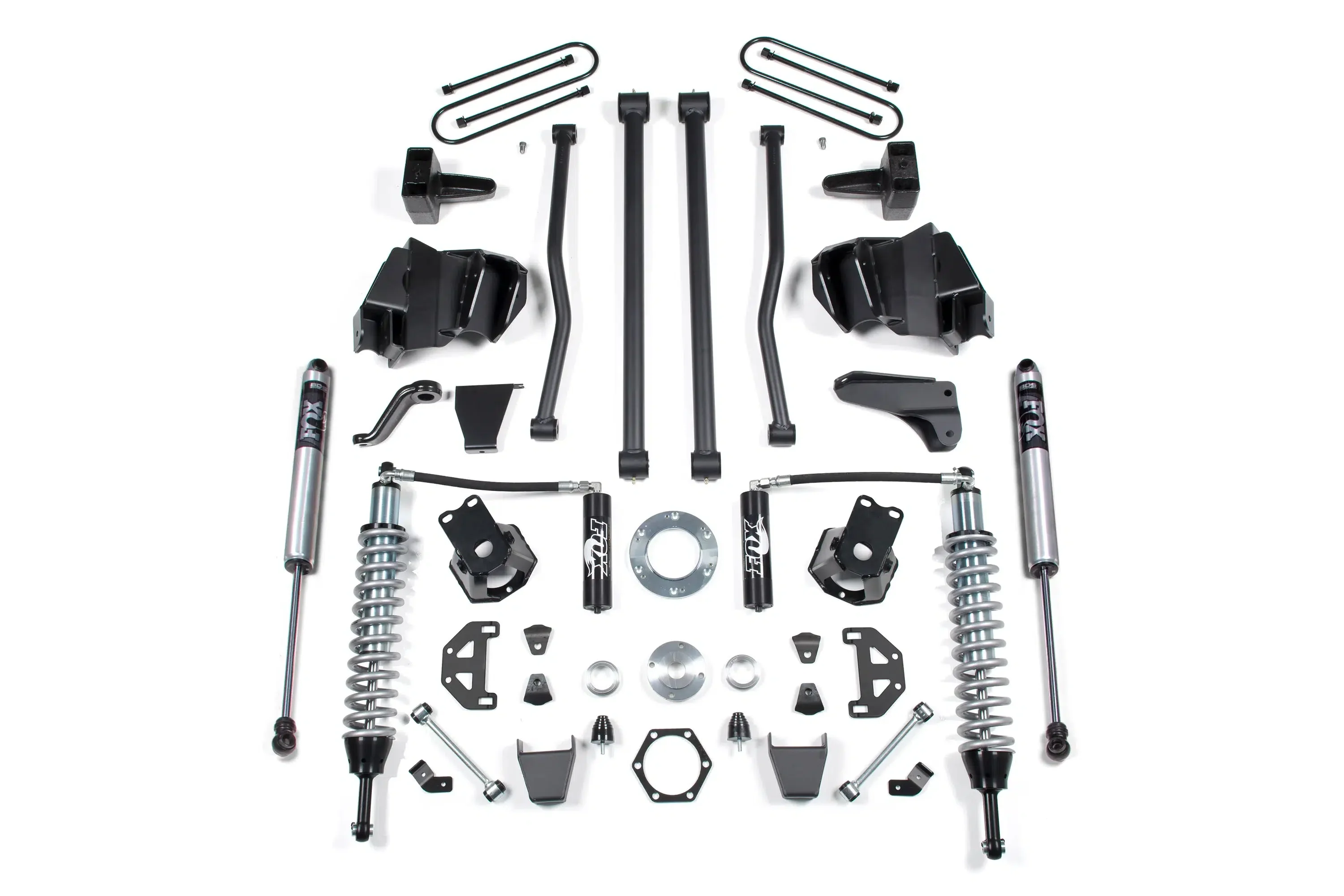

Completely revamp your Cummins front suspension into this 6" upgraded, up-rated Coilover lift system utilizing high-performance Fox 2.5 Coilovers and BDS long arm suspension systems to create the ultimate suspension system that will give you a 6" lift right out the box. Preset to achieve an amazing ride on and off-road, this kit has a  mounting system that bolts directly to the factory coil mounts with only minor trimming/drilling required. This new system not only creates a sturdy mount at the frame but also includes weld in reinforcements at the axle - something other "bolt-on" mounting kits on the market does not address.

Part Number: BDS647F

Features

• Fox 2.5 Series Remote Reservoir Coilovers
• Fox 2.0 Series Shocks
• 6" Long Arms
• 5" Rear Block Kit
• Axle reinforcements for the Coilover mount
• Clears 37's

Tire & Wheel Combinations:

• 37" x 12.50" w/ 17 x 9 and 5"

Notes

• This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 406
• Will not fit dually applications.
• Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit. #122801 is included in 8" kits, substitute #122802 for manual transmission.
• Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
