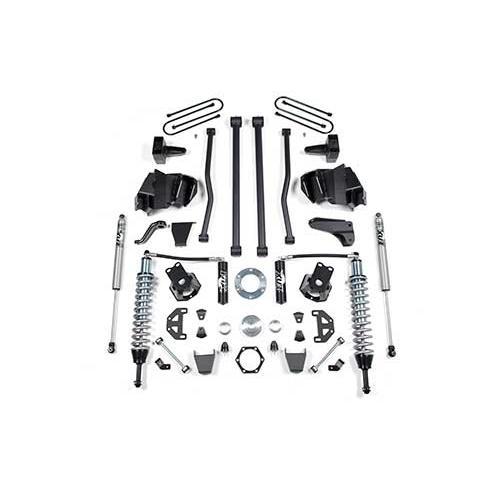

2003-2007 Cummins 8" Coilover Lift Kit (BDS653F)

Description

Click here to customize this Kit

Fits

Year	Make	Model	Lift
2003-2007	Dodge / Ram	2500 Truck
2003-2007	Dodge / Ram	3500 Truck	8"



Take your Cummins to the next level with the control and performance of a Coilover conversion by BDS Suspension with Fox 2.5 Coilovers that are preset for 8" of lift. Coilovers and BDS long arm suspension systems to create the ultimate 8" suspension system with a mounting system that bolts directly to the factory coil mounts with only minor trimming/drilling required. This new system not only creates a sturdy mount at the frame but also includes weld in reinforcements at the axle - something other "bolt-on" mounting kits on the market does not address.

Part Number: BDS653F

Features

• Fox 2.5 Remote Reservoir Coilovers
• Fox 2.0 Series Shocks
• 8" Long Arm
• 5" Rear Block
• Clears 38's

Tire & Wheel Combinations:

• 38" x 14.0" w/ 17 x 9 and 4.5"

Notes

• This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering.
• Will not fit dually applications.
• Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit. #122801 is included in 8" kits, substitute #122802 for manual transmission.
• Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
