2003-2013 Ram HD HEMI Pintop 3” Lift Kit (CS-DPT25-03-H)

Description

Fits

Year	Make	Model
2003 - 2012	Dodge	Ram 2500 HEMI
2003 - 2013	Dodge	Ram 3500 HEMI

Note: NOT compatible with diesel applications

Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, the Pintop 3" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-03-H

Features

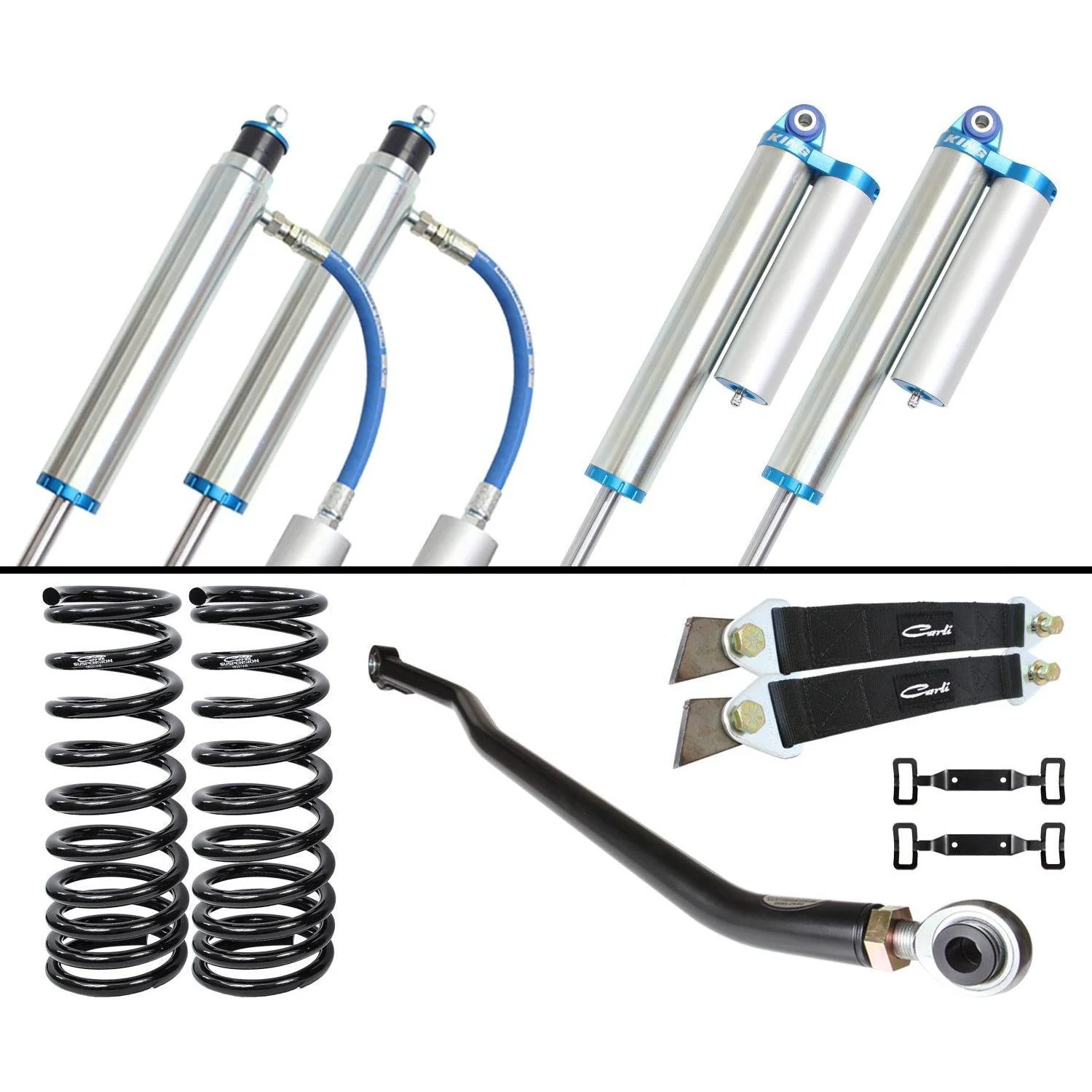

• Multi-rate front coil springs, front and rear shock package, and adjustable track bar
• The truck will sit 2.5-3" higher (year/cab configuration dependent), and wheel travel will be increased by 50% thanks to the taller, lighter-rate coil springs.
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

• Specifically tuned shocks for Rams equipped with the GAS Hemi engine

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 98.5-09 RAM 2500/3500 4X4 EXTENDED SWAY BAR END LINKS CS-DEL-985 or 10-12 RAM 2500/3500 4X4 EXTENDED SWAY BAR END LINKS 10MM CS-DEL-10 or 10-12 RAM 2500/3500 4X4 EXTENDED SWAY BAR END LINKS 12MM CS-DEL-10-12MM  or 03-12 RAM 2500/3500 4X4 TORSION SWAY BAR - 3" LIFT CS-DTSB3-03
  • Rear Leaf Options (REQUIRED): 03-18 RAM 2500/3500 4X4 HEMI PROGRESSIVE ADD-A-PACK, 1" LIFT, 3.5" AXLE DIAMETER CS-DPAP-03-H or 03-09 RAM 2500/3500 4X4 HEMI FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-DFSP-03-H or 03-09 RAM 2500/3500 4X4 HEMI FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT HD CS-DFSP-03-H-HD or 10-12 RAM 2500/3500 4X4 HEMI FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-DFSP-10-H or 10-12 RAM 2500/3500 4X4 HEMI FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT HD CS-DFSP-10-H-HD
  • Leaf Spring Shackle (OPTIONAL): CS-DSHACKLE-0313
  • Long Travel Airbags (OPTIONAL): CS-DLTB-03-H
  • Control Arms Options (OPTIONAL): 10-12 RAM 2500/3500 4X4 RAM BILLET HIGH CLEARANCE EXTENDED CONTROL ARMS CS-DBCA-10-CLR or 10-12 RAM 2500/3500 4X4 RAM EXTENDED CONTROL ARMS CS-CA-MS-10 or 03-09 RAM 2500/3500 4X4 RAM BILLET HIGH CLEARANCE EXTENDED CONTROL ARMS CS-DBCA-03-CLR or 03-09 RAM 2500/3500 4X4 RAM EXTENDED CONTROL ARMS CS-CA-MS-03
  • Steering Stabilizer Options (OPTIONAL): 03-08 "Y-STYLE" RAM 2500/3500 4X4 LOW MOUNT STEERING STABILIZER - STAINLESS STEEL CS-DLMSS-Y or 08.5-12 "T-STYLE" RAM 2500/3500 4X4 LOW MOUNT STEERING STABILIZER - STAINLESS STEEL CS-DLMSS-T or 03-08 RAM 2500/3500 4X4 HIGH MOUNT STEERING STABILIZER KIT - Y STYLE LIFTED CS-DHMSS-03-Y or 08.5-12 RAM 2500/3500 4X4 HIGH MOUNT STEERING STABILIZER KIT - T STYLE LIFTED CS-DHMSS-03-T or 03-08 RAM 2500/3500 4X4 OPPOSING STEERING STABILIZER KIT - Y STYLE LIFTED CS-DSSOSK-Y or 08.5-12 RAM 2500/3500 4X4 OPPOSING STEERING STABILIZER KIT - T STYLE LIFTED CS-DSSOSK-T


Notes

• A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
