2003-2012 Cummins Unchained Shock Package w/ 6” Lift (CS-DUC35SPKG-03-D-LA)
Description
Fits
| Year | Make | Model |
| 2003 - 2012 | Dodge | Ram 2500 |
| 2003 - 2012 | Dodge | Ram 3500 |
Note: ONLY compatible with Carli 3" linear rate front springs, long arm system, and full rear spring pack
The most advanced off-road shocks Carli has to offer. This Unchained 3.0 bypass shock kit offers the softest ride on paved roads while still providing superior control and response. However, the off-road capability is unmatched in every way, with massive 3.5" long-travel King Shocks for the front and 3.0" 4-tube rear bypass shocks that give you more bottom-out resistance, external tubes with one-way check valves that are fully adjustable to allow users to tailor the amount of fluid that bypasses the piston/valving on either the compression or rebound stroke within the effective range of the bypass tube.
Part Number: CS-DUC35SPKG-03-D-LA
Features

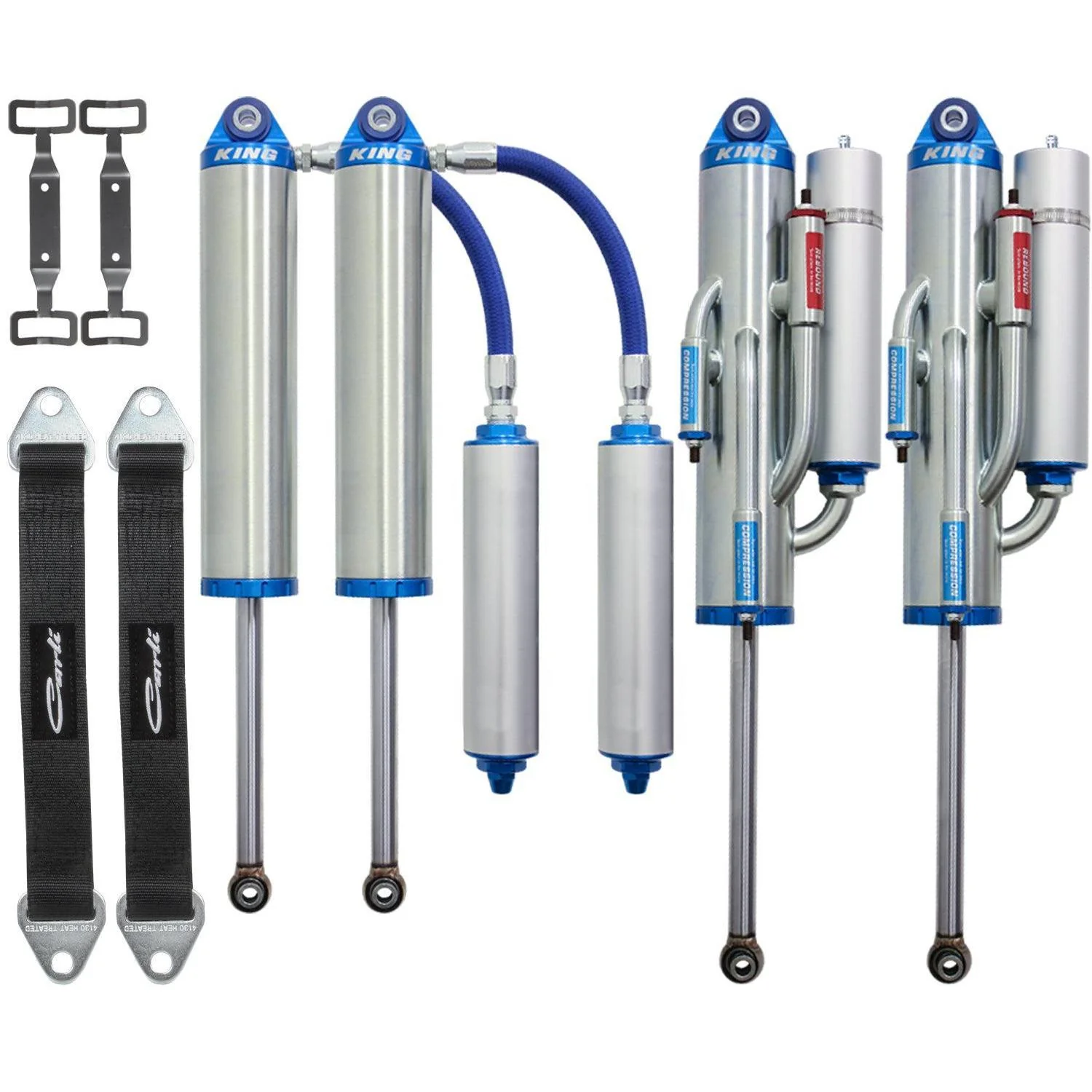

- King 3.5" remote reservoir front shocks and 3.0" 4-tube piggyback bypass rear shocks
- Includes reservoir mounts and limiting straps
- Features 17-4 stainless shafts for durability and longevity
- 4-tube bypass will have far more bottom-out resistance
- Tunable to achieve the exact ride desired by the purchaser
Additional Information
-
Required and Optional Parts to support this system:
- Fabricated Shock Towers (REQUIRED): 94-12 RAM 2500/3500 FABRICATED SLIDE-OVER SHOCK TOWER - 6.25" TALL (EXTENDED TRAVEL APPLICATION) CS-DFST625
- Gusset Kit (REQUIRED): 03-12 RAM 2500/3500 4X4 DOMINATOR REAR CROSSMEMBER GUSSET KIT - WELD IN CS-D30GUSSET
- Rear Shock Mounts: 03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, PASSENGER CS-DRSMP and DRIVER CS-DRSMD
- Reservoir Rock Guard: UNIVERSAL - 2.5" DIAMETER SHOCK RESERVOIR GUARD CS-RRG
- Hole Saw/Arbor: 4" HOLE SAW AND ARBOR CS-HOLESAWKIT-4.5
Notes
- A “Base Kit” SKU must be accompanied by the required add-on SKUs of a Shock Tower and Gusset Kit to form a complete system.
- Compatible ONLY with Carli 3" linear rate front springs, long arm system, and 1" full rear spring pack
- Coil Buckets must be bored to 4.5" (upper and lower) for shock clearance
- Rear shock mounts are HIGHLY recommended for bypass clearance
