2004-2015 Titan Alpha HD Pro S Air Suspension Kit (HP10222-J-S)

Description

Fits

Year	Make
2004-2015	Nissan Titan 2WD/4WD

Note: Will NOT fit PRO-4X models.

Eliminate truck sag, sway, and bottoming out with the ALPHA HD PRO S Air Suspension Kit. Featuring stainless steel hardware, corrosion-resistant end caps, and 20 support wires, this kit ensures lasting strength and durability. The built-in polyurethane bumper protects against damage from bottoming out, allowing safe driving even without air pressure when not towing. Available options with or without an internal bag bump stop.

Part Number: HP10222-J-S

Features

• 5,000 lbs of load leveling capacity
• 2-hour install time
• Lifetime warranty
• Can be run at 0 psi

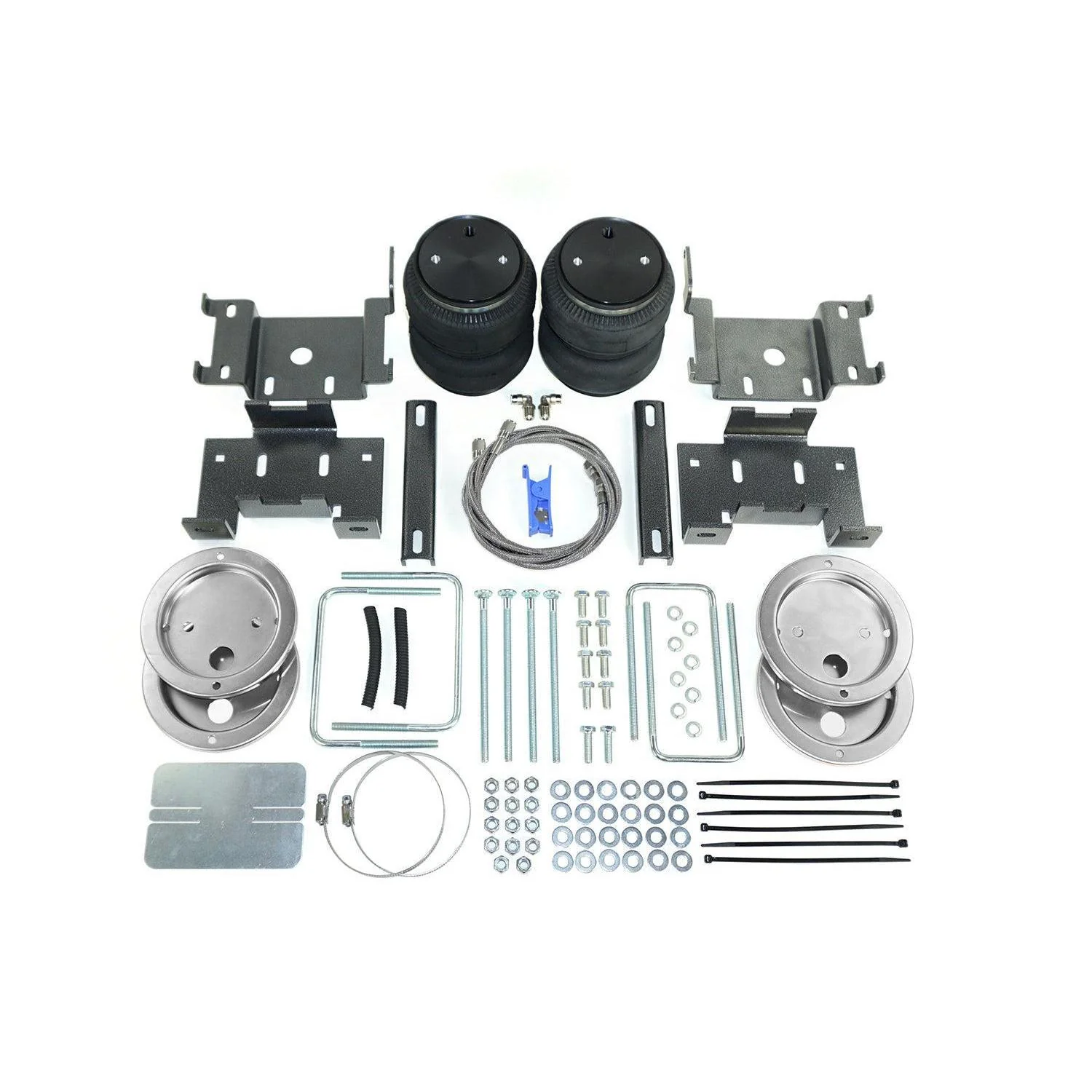

Includes:

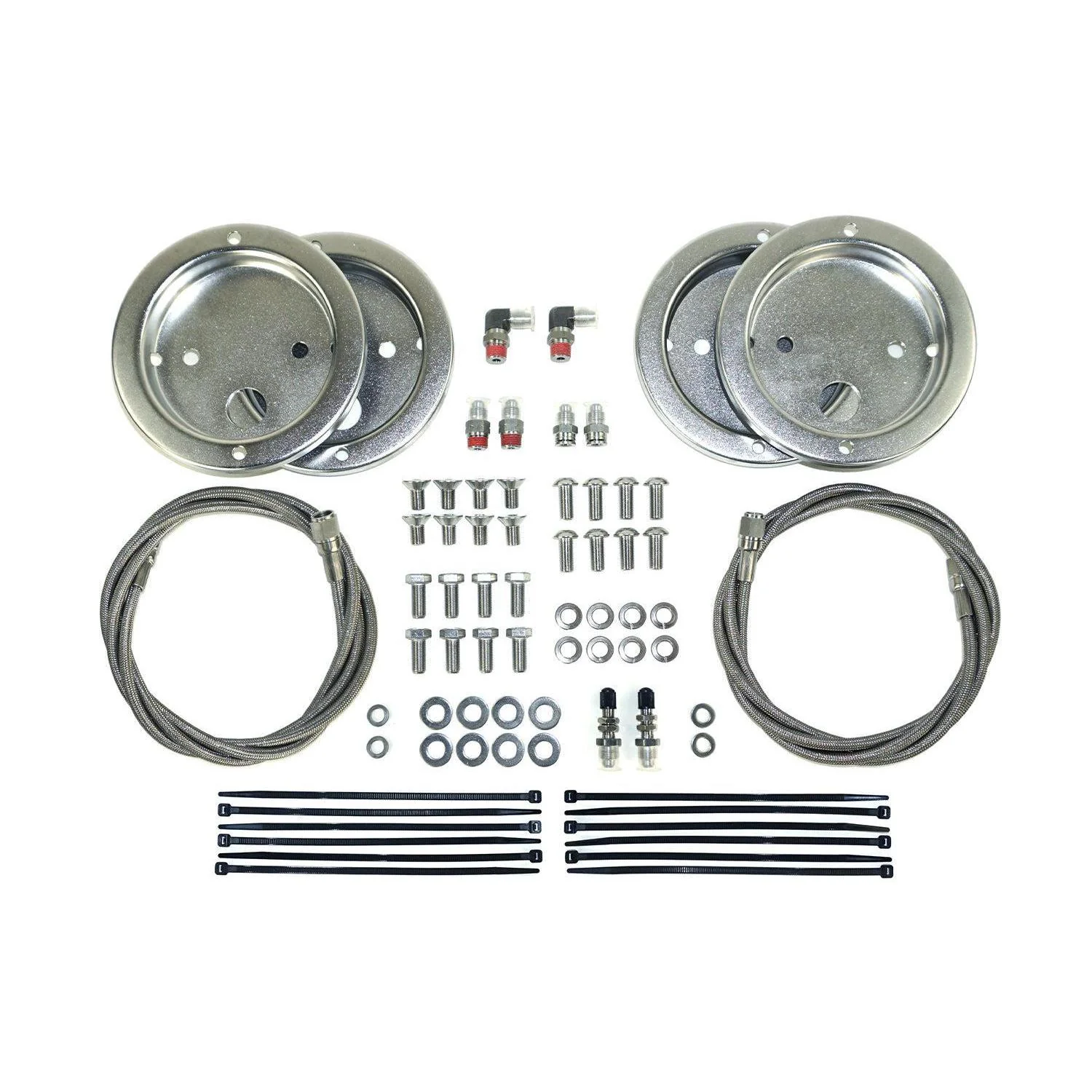

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates

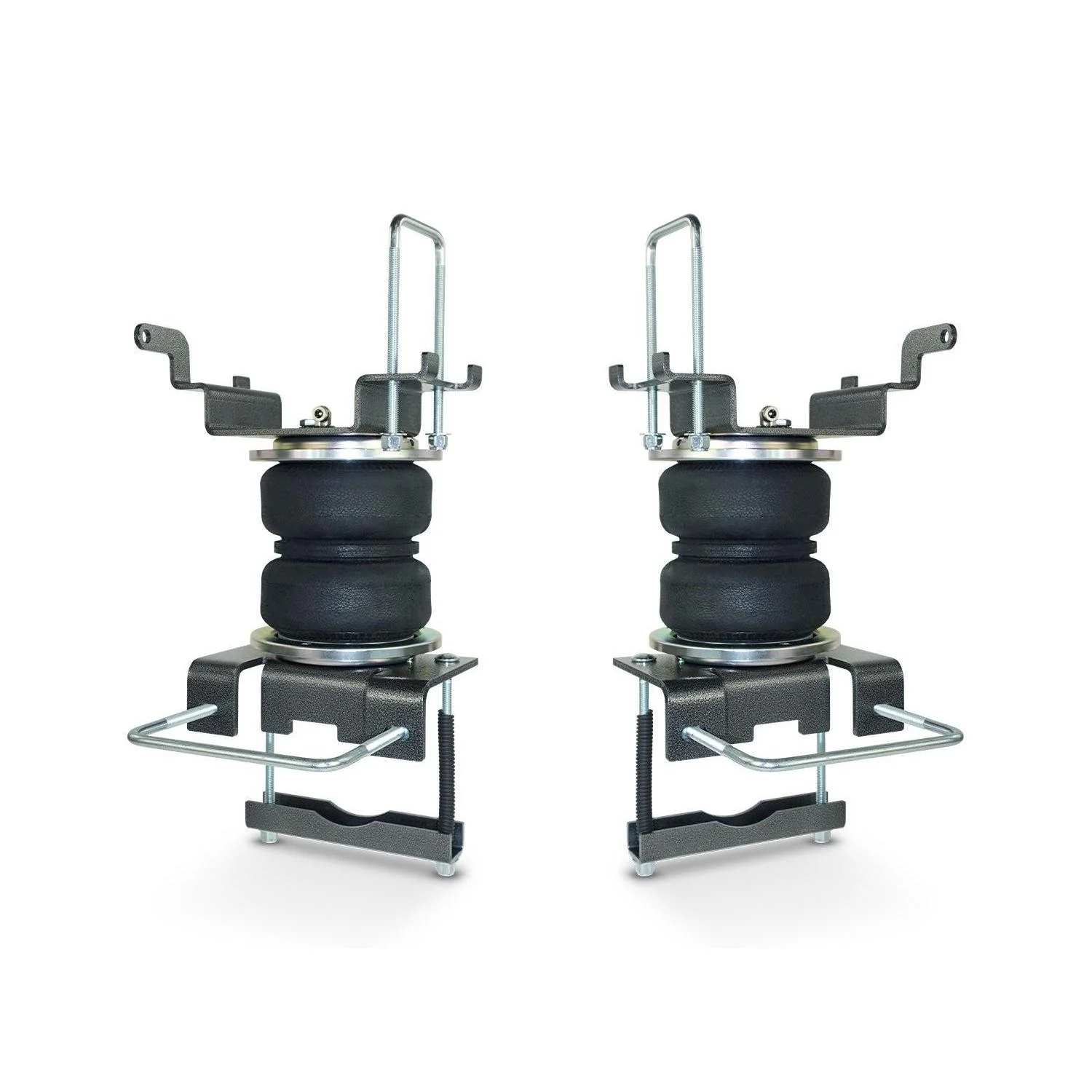

• Two Air Springs
• Everything required for install

Installation

• 2-Hours
• Stainless Steel Hardware
• Click Here
• Application Guide

Notes

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Additional Info

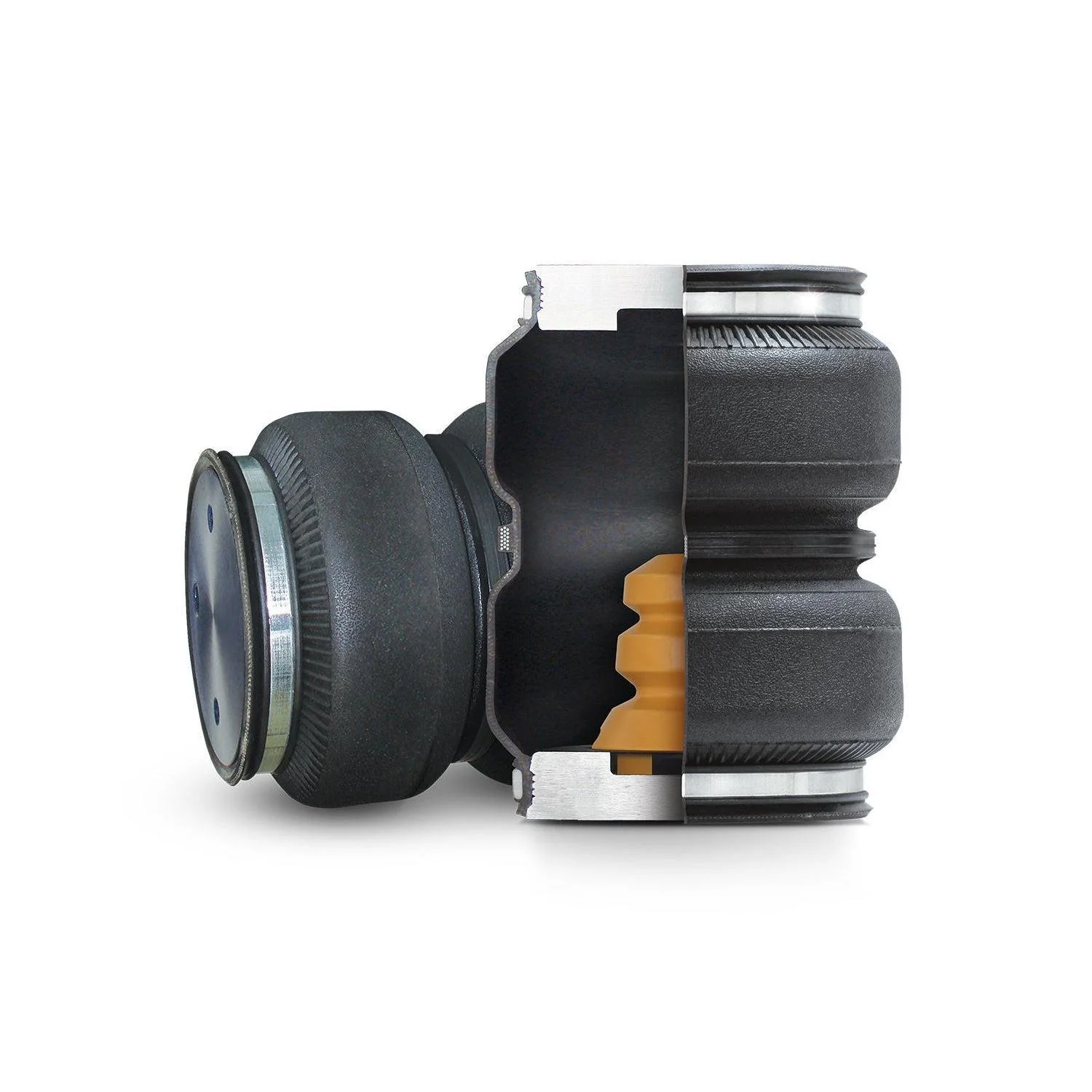

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10222 ALPHA HD air bag.

Warranty

Parts Only

• Click Here
