2004.5-2010 Duramax LLY/LBZ/LMM Stealth Hybrid Turbocharger (CPS200431)

Description

Fits

Year	Make	Engine
2004.5-2010	Chevrolet/GMC HD	6.6L Duramax

The VVT Stealth Mach 1 Hybrid Turbo is a specialized stock-appearing direct replacement turbocharger for 2004.5-2010 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L LLY, LBZ, or LMM Duramax diesel engine. Designed for sled pulling and compound turbo applications, this turbo combines Mach 2-style exhaust-side upgrades with a smaller 63mm Air Grabber compressor wheel.

This hybrid setup is optimized for top-end performance, compound turbo efficiency, and competition applications limited to a 64mm compressor wheel. With HFV High Flow Vane technology, an upgraded turbine wheel, ported exhaust housing, and heavy-duty bearing upgrades, it improves exhaust-side flow and helps manage EGTs under high-load conditions.

Part Number: CPS200431

Supersedes: DM16B1070802000

Features

• Dyno proven to support up to 650 RWHP
• Supports up to 1100 RWHP in a compound application
• Better EGT management under high load
• Upgraded billet stainless VGT vanes with HFV technology
• Optimized for compound turbo setups
• Designed to limit turbo surge
• Better durability than a stock turbo
• Loud turbo whistle from the 10-blade Stealth turbine
• Optimized boost-to-drive pressure ratio for compound applications
• Direct bolt-on installation with no fabrication needed

Notes

• No core charge
• Higher power levels require proper supporting modifications

Additional Info

Air Grabber Compressor Wheel

• 63mm Air Grabber compressor wheel supports up to 650 RWHP
• Supports up to 600 RWHP with emissions intact and tuning
• 11-blade design provides a wide efficiency range
• Made from aerospace-grade billet aluminum

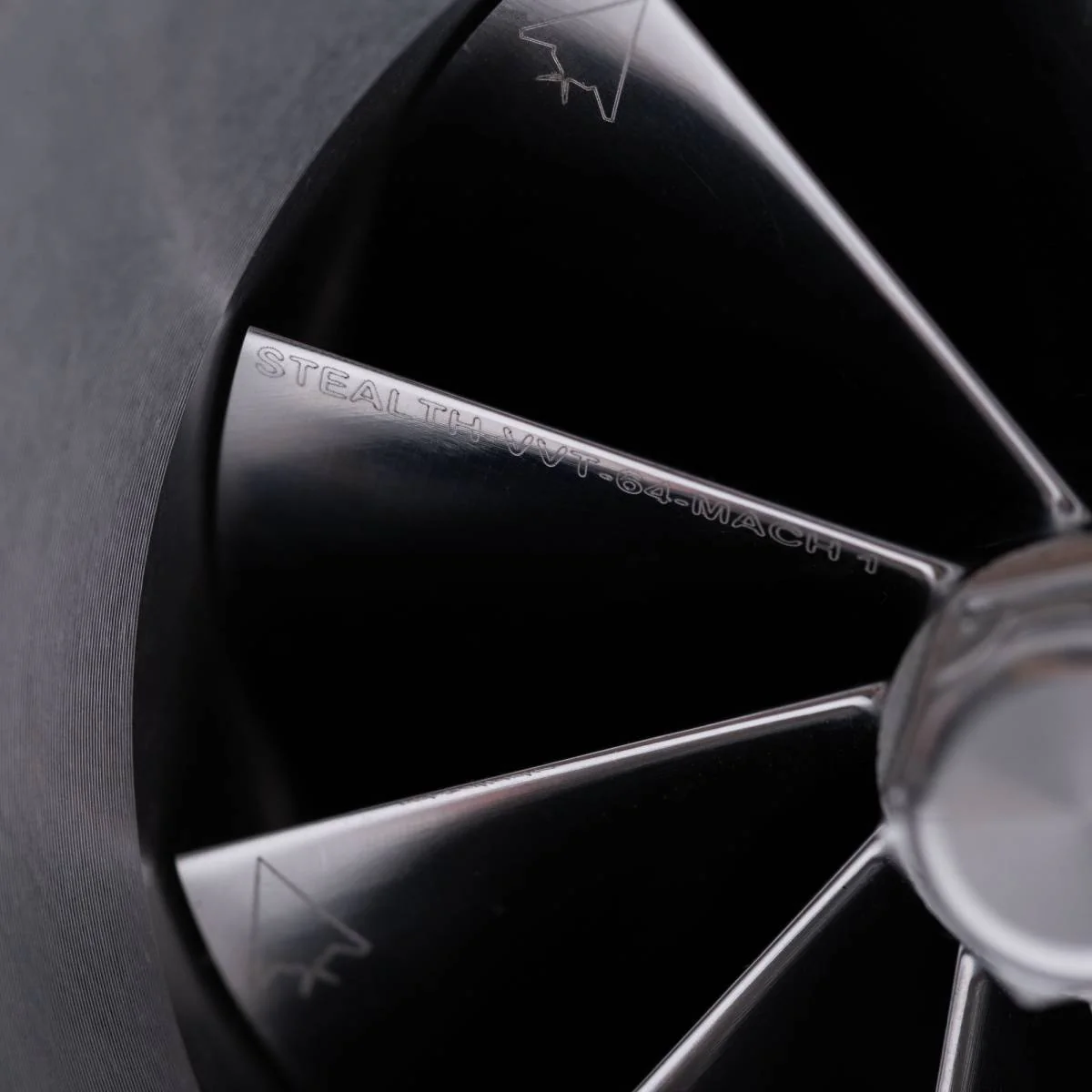

Beast Wheel Turbine Wheel

• 10% larger turbine wheel improves airflow and helps lower EGTs
• Custom 10-blade design improves flow characteristics over stock
• Produces a signature Stealth turbo whistle
• Made from high-quality Inconel 718
• Improves durability over the stock turbine wheel

HFV High Flow Vane Technology

• Taller vane design reduces turbine nozzle restriction
• Wider vane design improves exhaust-flow dynamics
• Helps maintain lower EGTs under high load
• Machined from high-quality billet 310 stainless steel

Exhaust Housing

• Machine-ported downpipe opening improves exhaust flow
• Machine-ported up-pipe inlets improve exhaust flow
• Helps manage EGTs under load in compound turbo applications

Warranty

• One Year Limited

OE Replacement Part Numbers

• 736554-5014
• 736554-0011
• 736554-5011
• 736554-9011
• 736554-0001
• 736554-5001
• 736554-9001
• 736554-0002
• 736554-5002
• 736554-9002
• 736554-0003
• 736554-5003
• 736554-9007
• 736554-9008
• 736554-9014
• 736554-9003
• 736554-0004
• 736554-5004
• 736554-9004
• 736554-0005
• 736554-5005
• 736554-9005
• 736554-0006
• 736554-5006
• 736554-9006
• 736554-0007
• 736554-0008
• 736554-0014
• 790032-9003
• 7900329003
• 19329915
• 97387896
• 98011735
• 98021617
• 98065854
• 12639460
• 736554-5015
• 736554-9015
• 759622-5005
• 759622-9005
• 763333-5005
• 763333-9005
• 790032-5004
• 790032-9004
• 848212-5001
• 8482125001
• 848212-9001
• 8482129001
• 19329916
• 8980033661
• 8980033662
• 8980117351
• 98003366
• 759622-5006
• 759622-9006
• 759622-5
• 759622-0002
• 759622-5002
• 759622-9002
• 759622-0005
• R759622-5005
• R759622-9005
