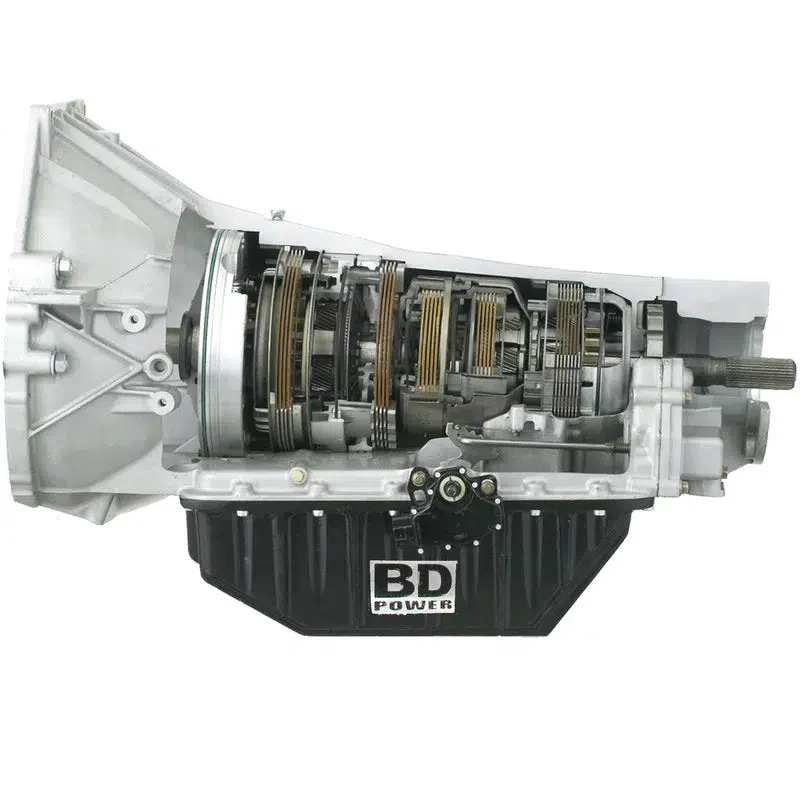

2005-2007 Powerstroke 5R110 Transmission Stage 4 2WD (1064482)

Description

Fits

Year	Make	Model	Engine
2005-2007	Ford	F-Series 2WD	6.0L Powerstroke / 5R110

Increase the durability of your drivetrain with BD's Stage 4 transmission; build to handle stock engine output & maybe a little more.

Part Number: 1064482

Features

• Increases the durability of your drivetrain
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Upgraded sump filter
• Replace plastic pressure plugs in valve body with aluminum
• Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
• Reworked front pump
• Clutch Count: COAST CLUTCH 3
• Clutch Count: FORWARD 4
• Clutch Count: LOW REVERSE 6
• Clutch Count: INTERMEDIATE 5 (67% increase over stock)
• Clutch Count: DIRECT 6 (20% increase over stock)
• Clutch Count: OVERDRIVE 5 (67% increase over stock)
• Each transmission is dyno tested

Notes

• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
• No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
