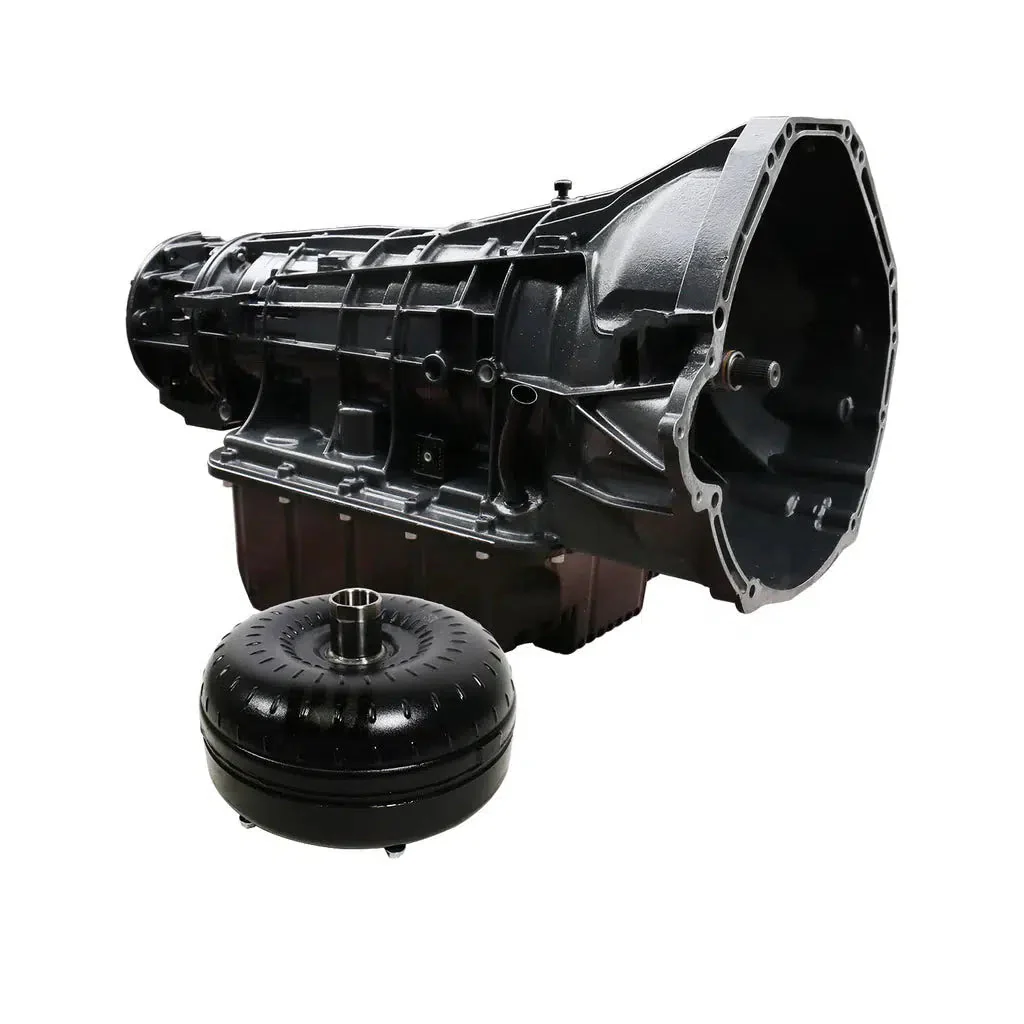

2005-2007 Powerstroke TowMaster 5R110 Transmission & Converter (4WD) (1064484SM)

Description

Fits

Year	Make	Model	Engine
2005-2007	Ford	F-Series & E-350/E-450 Superduty 2WD/4WD w/ Flange Drivetrain	6.0L Powerstroke
2005	Ford	E-350 Club Wagon 2WD/4WD w/ Flange Drivetrain	6.0L Powerstroke
2007	Ford	E-350 Econoline 2WD/4WD w/ Flange Drivetrain	6.0L Powerstroke

 Dyno tested together to guarantee performance and reliability that will meet your Powerstrokes power & torque demands whether you're on the street, track, or towing, BD is an ideal choice; and every BD Diesel transmission includes an HD pan for increased fluid capacity

Part Number: 1064484SM

Features

Transmission:

• Increase the durability of your drivetrain
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Upgraded sump filter
• Replace plastic pressure plugs in valve body with aluminum
• HD snap ring and blow-off valve to prevent runaway pressure from damaging the case
• Reworked front pump
• Clutch Count: COAST CLUTCH 3
• Clutch Count: FORWARD 4
• Clutch Count: LOW REVERSE 6
• Clutch Count: INTERMEDIATE 5 (67% increase over stock)
• Clutch Count: DIRECT 6 (20% increase over stock)
• Clutch Count: OVERDRIVE 5 (67% increase over stock)
• Each transmission is dyno tested

Torque Converter:

• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material

Installation

• 7 Hours
• Install - Click Here

Warranty

Parts Only - No Race or Sled Pull abuse covered.

• 36-Months
• 150,000 Miles
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
