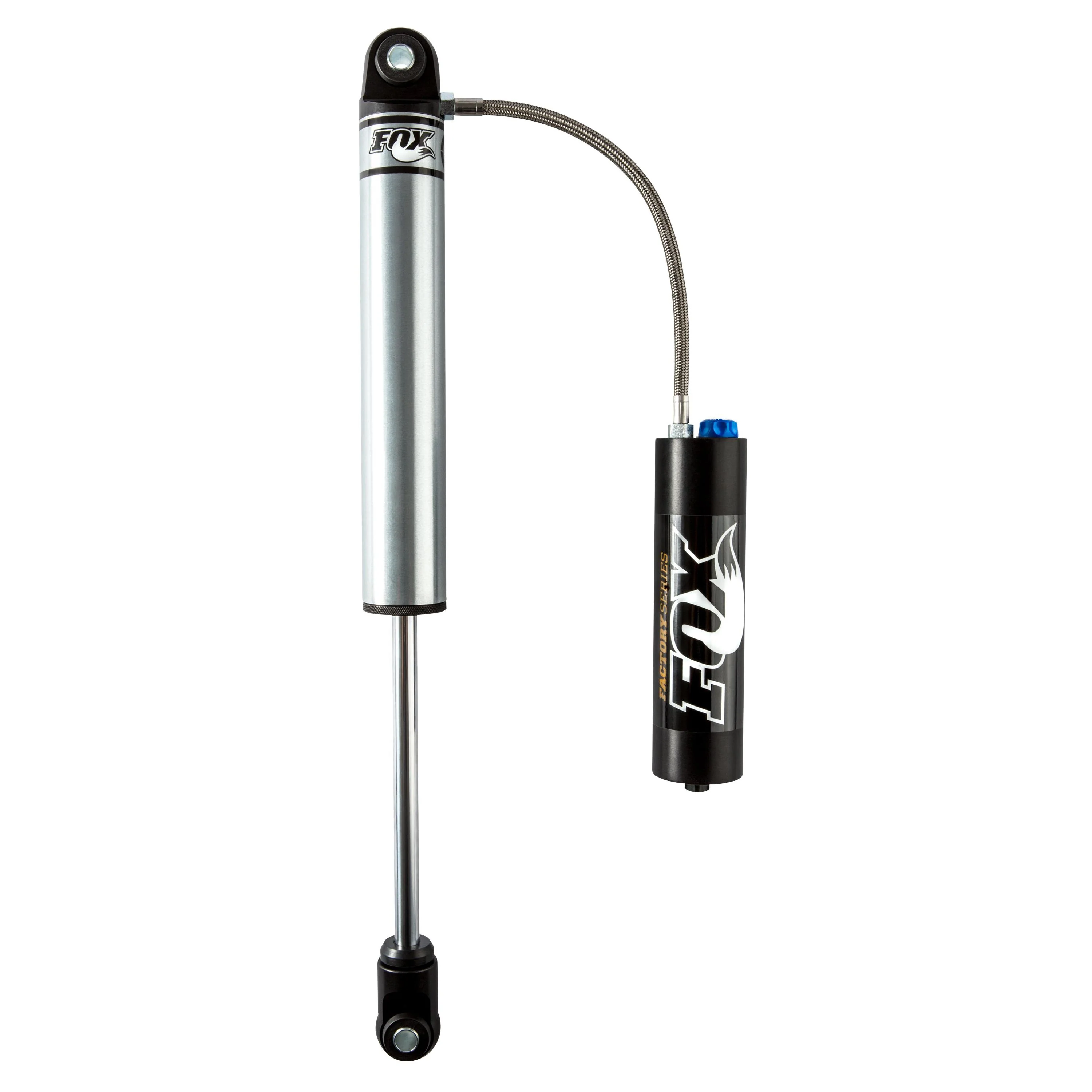

2005-2015 Hilux Rear 0-1.5" Factory Race Series 2.5 Reservoir Shock w/ DSC

Description

Fits

Year	Make	Model
2005 - 2015	Toyota	Hilux
2005 - 2015	Toyota	Hilux Pre Runner - TRD



FOX Performance Race Series 2.5 shocks improve the stock Toyota platform by eliminating the vehicle's forward rake, providing a level ride height, and increasing the suspension articulation of your truck.

Type III anodization prevents corrosion and wear of the 2.5" aluminum bodies, external reservoirs increase oil capacity, remove dead space from the shock Body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more Travel, and consistent damping forces result. Each Reservoir Features a Dual Speed Compression (DSC) adjuster, strategically mounted to eliminate interference with aggressive tires at full lock.

Part Number: 883-26-000

Features

• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast
• 2.5" smooth bore zinc plated seamless steel Body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length 23.21
• Compressed Length 15.05
• Top Mount EB2
• Bottom Mount EB2
• Travel 8.16
• Rear Lift Height 0-1.5

Notes

• Requires Upper Control Arm
• Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3-inch TRD Lift Kit silver axle).
