2005-2023 Tacoma Rear 2.5" Performance Elite Series 2.5 Reservoir Shock (883-26-112)

Description

Fits

Year	Make	Model
2005 - 2023	Toyota	Tacoma

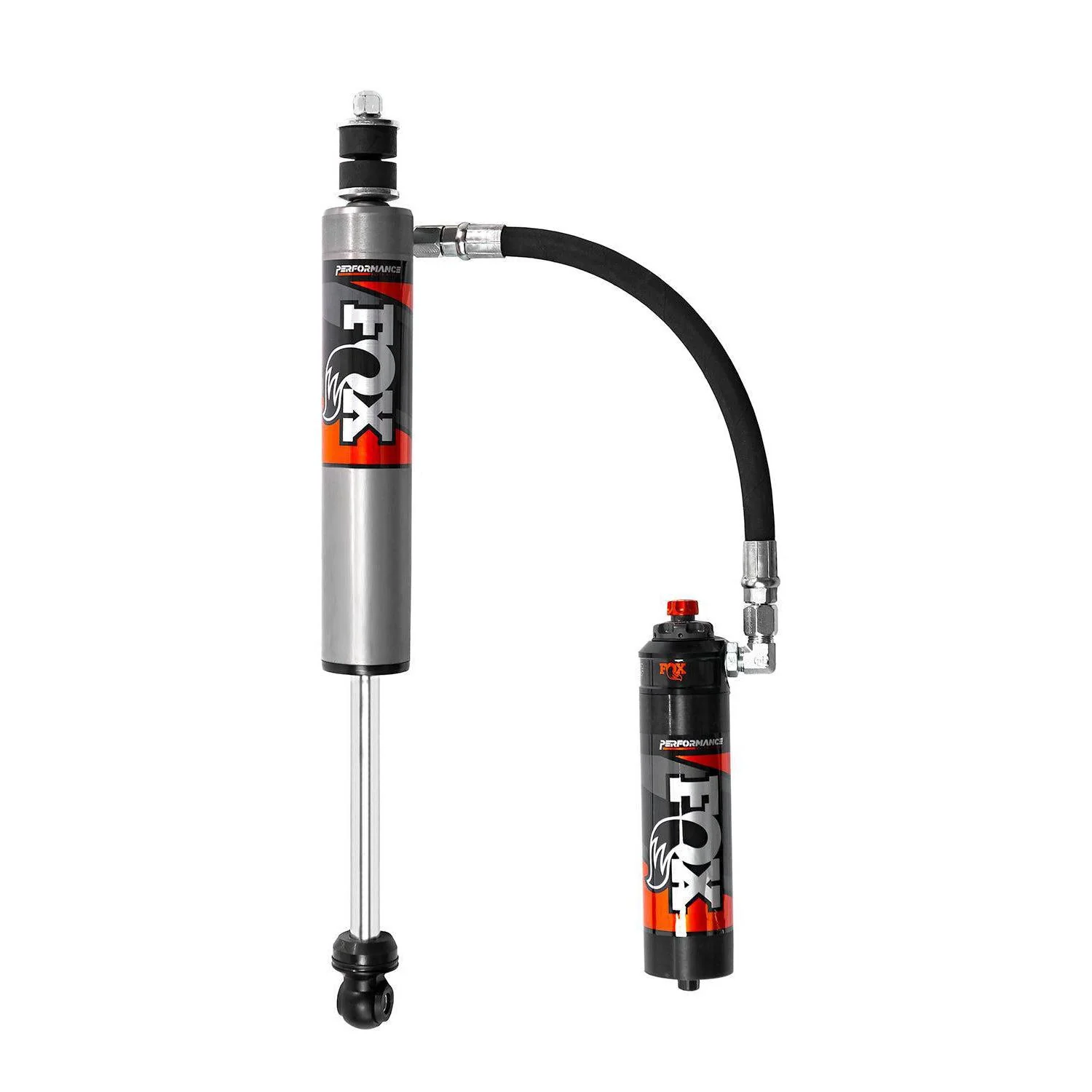

Performance Elite Series 2.5 Reservoir smooth Body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from the Off-Road race shocks and have been thoroughly perfected in the most brutal conditions. The external Reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs.

Part Number: 883-26-112

Features

• Aluminum Body & External Reservoir Dissipates Heat Faster Than Steel
• 2.5" impact-extruded and CNC machined 6061-T6 hard anodized aluminum Body resists rust over time
• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length 27.88
• Compressed Length 17.41
• Top Mount Eyelet
• Bottom Mount Eyelet
• Travel 10.47

• Rear Lift Height 2.5-4


Notes

• Trail Boss Models Fit 0-1" Lift Only
• Non-TB requires a minimum of 2" bump stop spacer and a 1" lift block
