2005-2023 Toyota Alpha HD Pro S Air Suspension Kit (HP10311-J-S)

Description

Fits

Year	Make	Model
2005-2023	Toyota	Tacoma 4WD
2005-2023	Toyota	Tacoma PreRunner 2WD

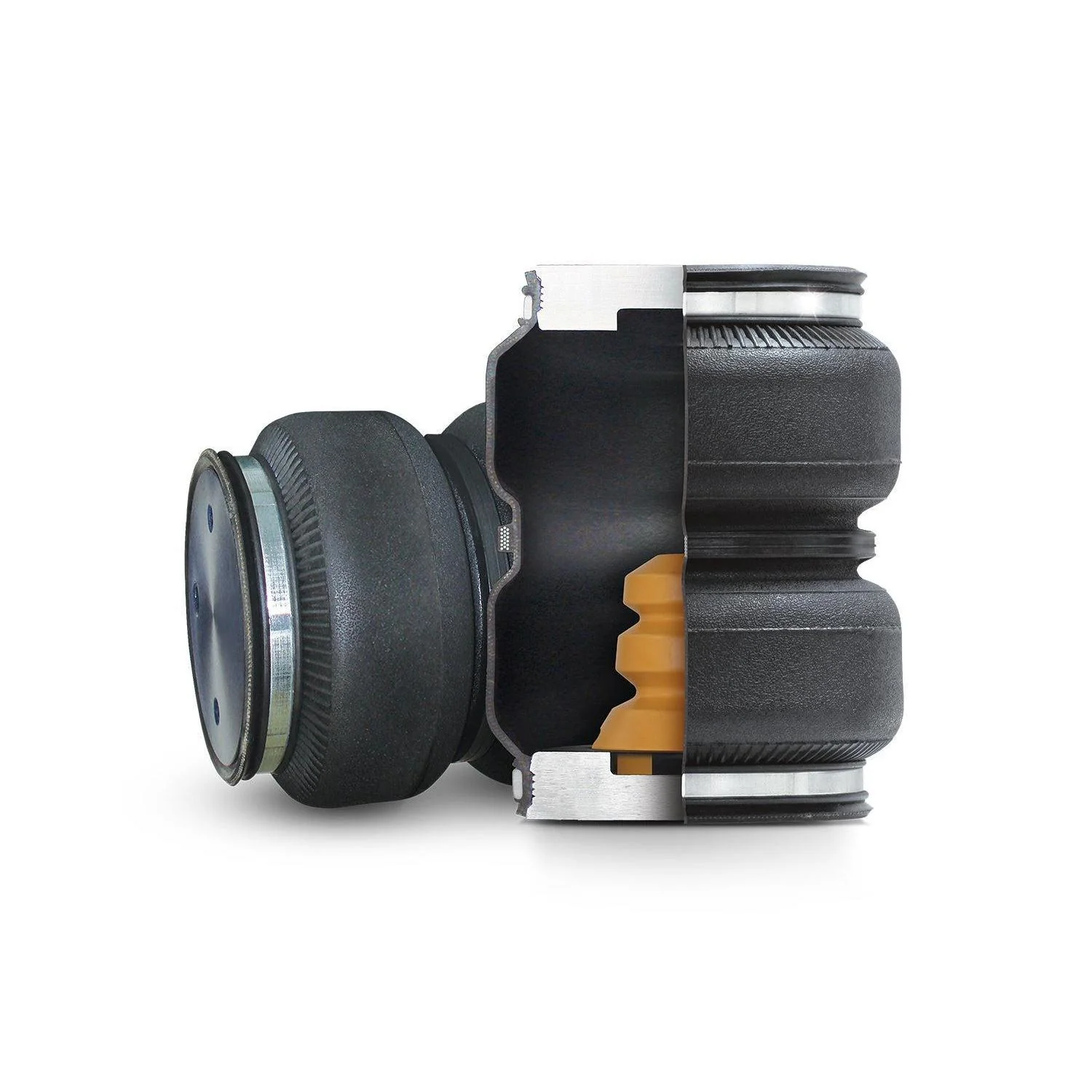

The ALPHA HD PRO S Air Suspension Kit eliminates truck sag, sway, and bottoming out. It includes stainless steel hardware, jounce bumpers, and corrosion-resistant end caps reinforced with 20 support wires for strength. The polyurethane internal bumper protects against damage and allows driving without air when not towing. Available with or without in-bag bump stops for added versatility.

Part Number: HP10311-J-S

Features

• 5,000 lbs of load leveling capacity
• 2.5-hour install time
• Lifetime warranty
• Can be run at 0 psi

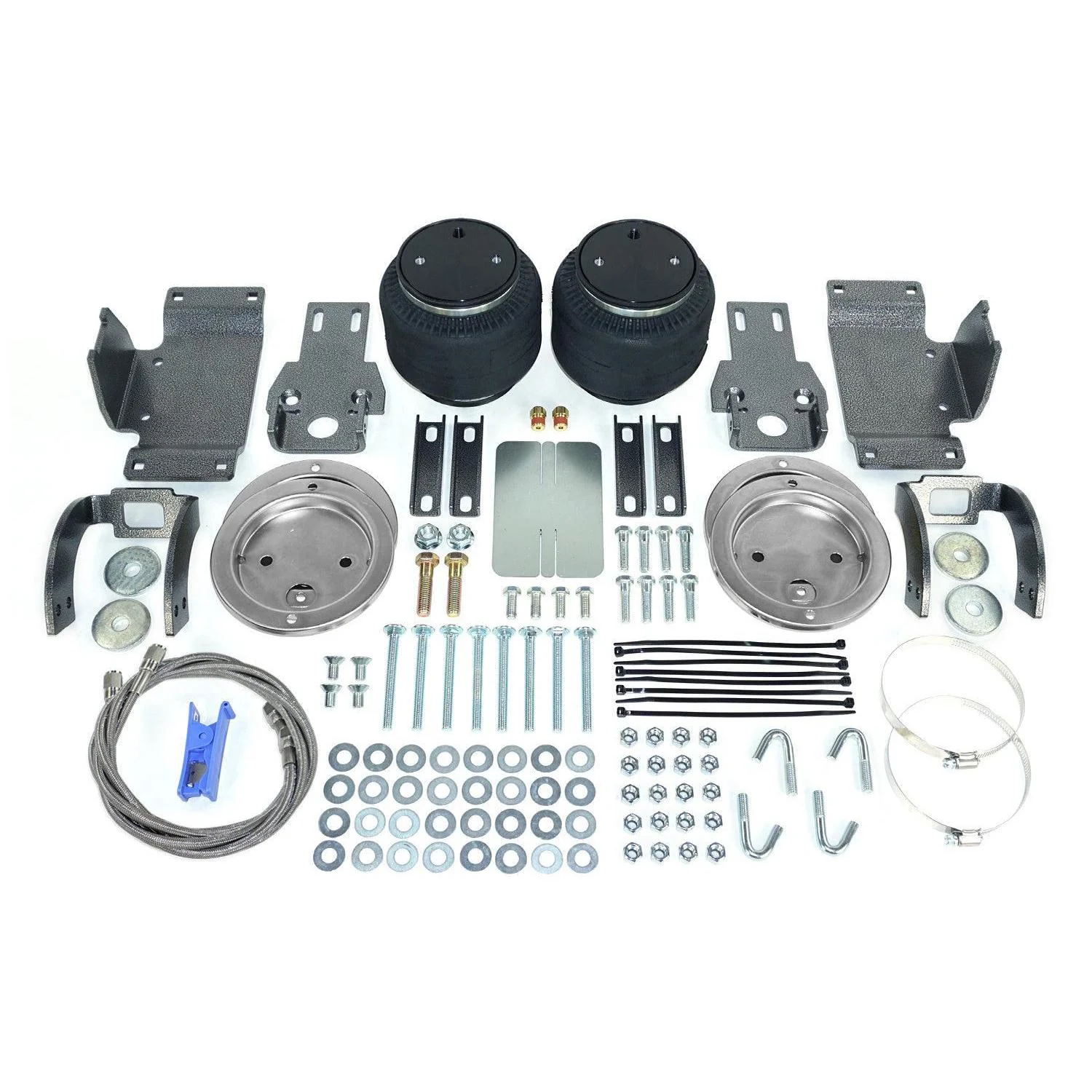

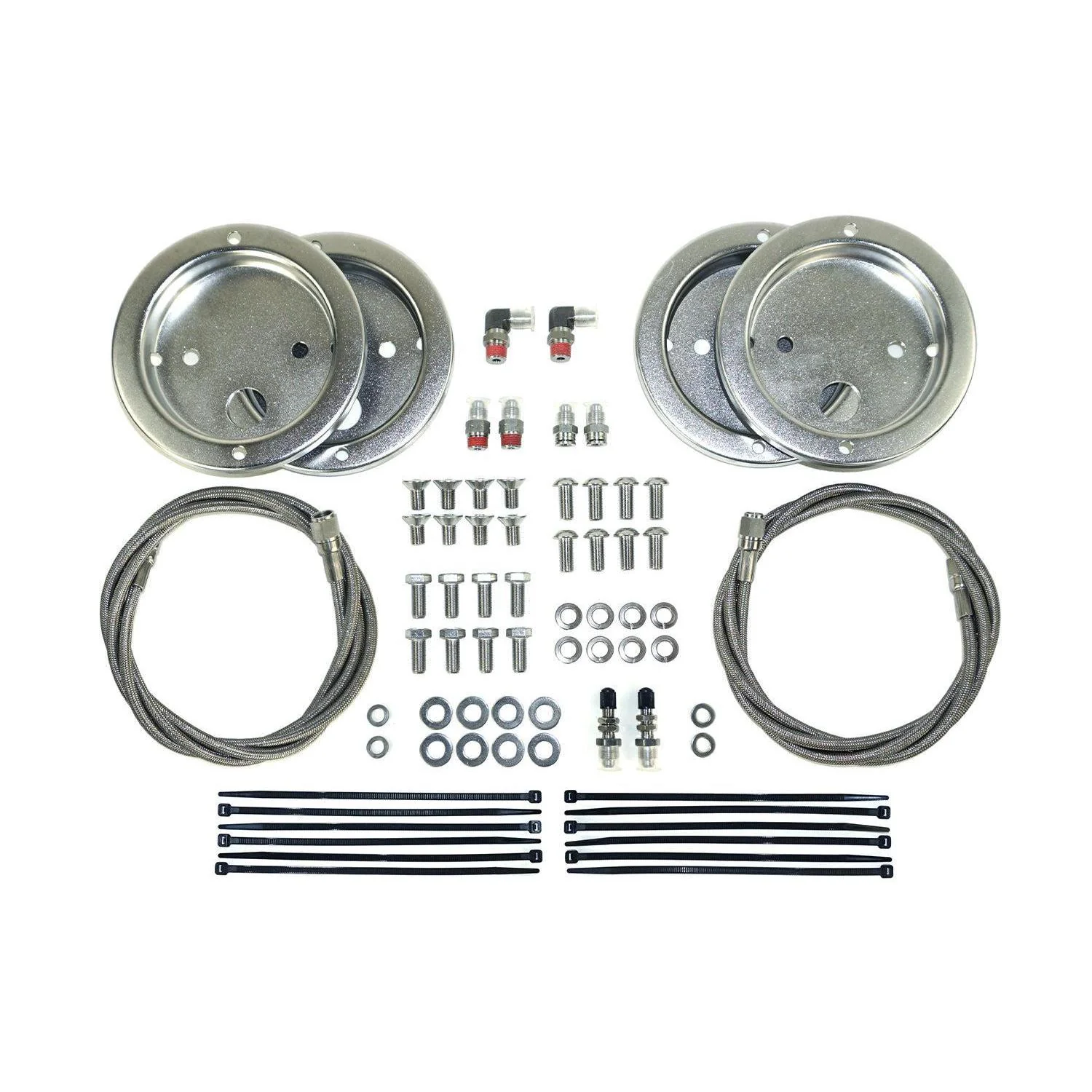

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

Installation

• 2.5-Hours
• Stainless Steel Hardware
• Click Here
• Application Guide

Notes

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Additional Info

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10311 ALPHA HD air bag.

Warranty

Parts Only

• Click Here
