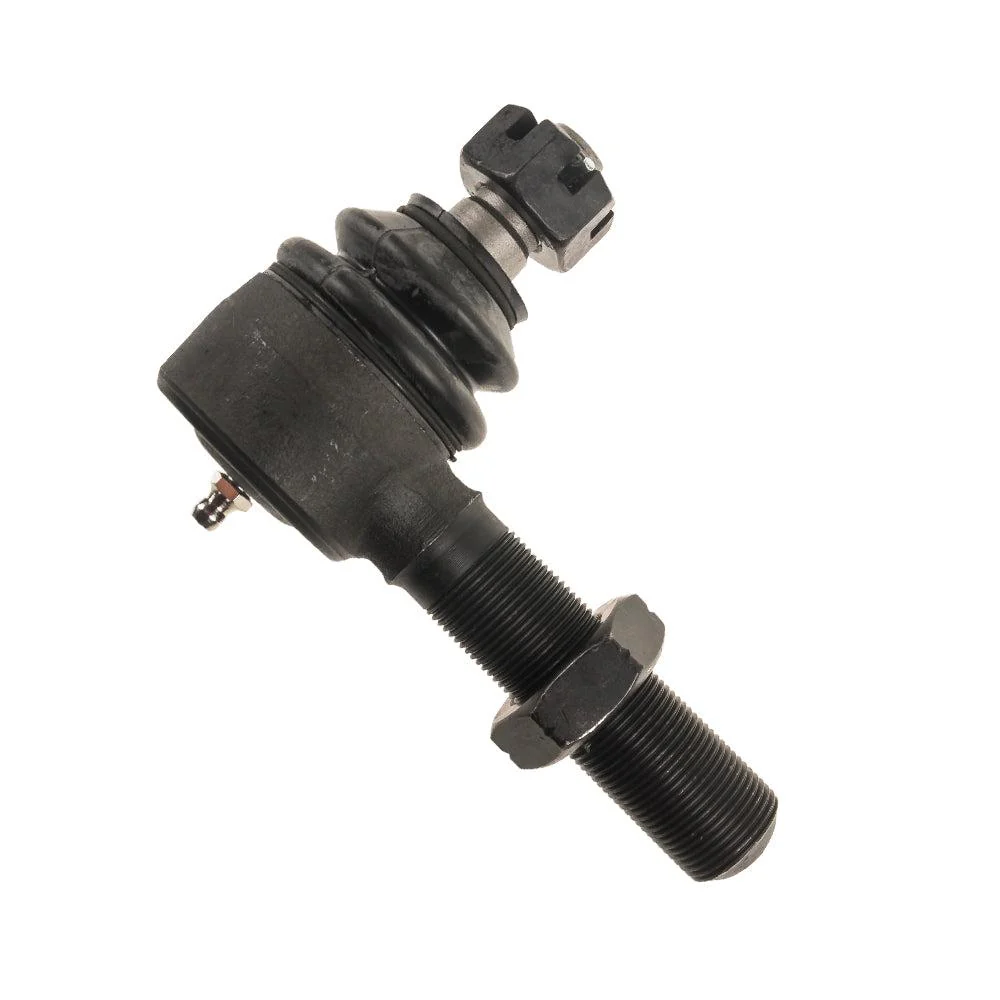

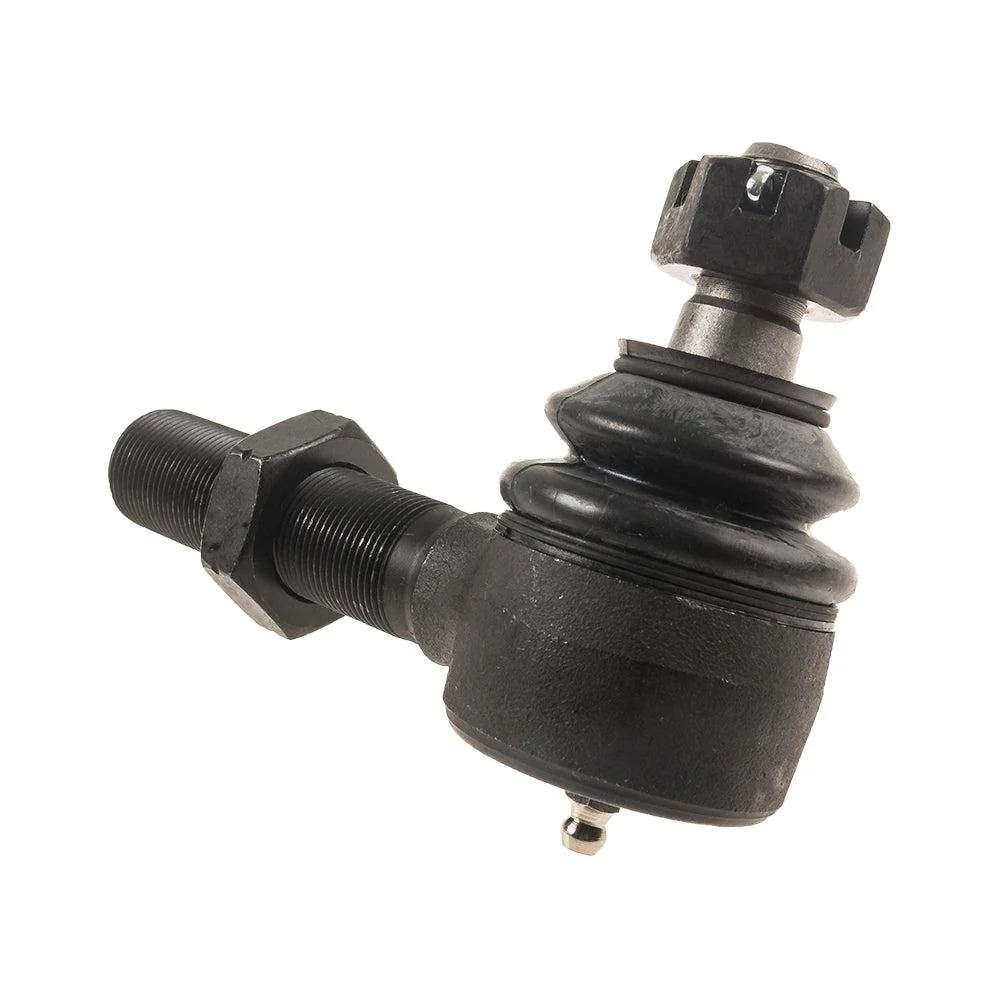

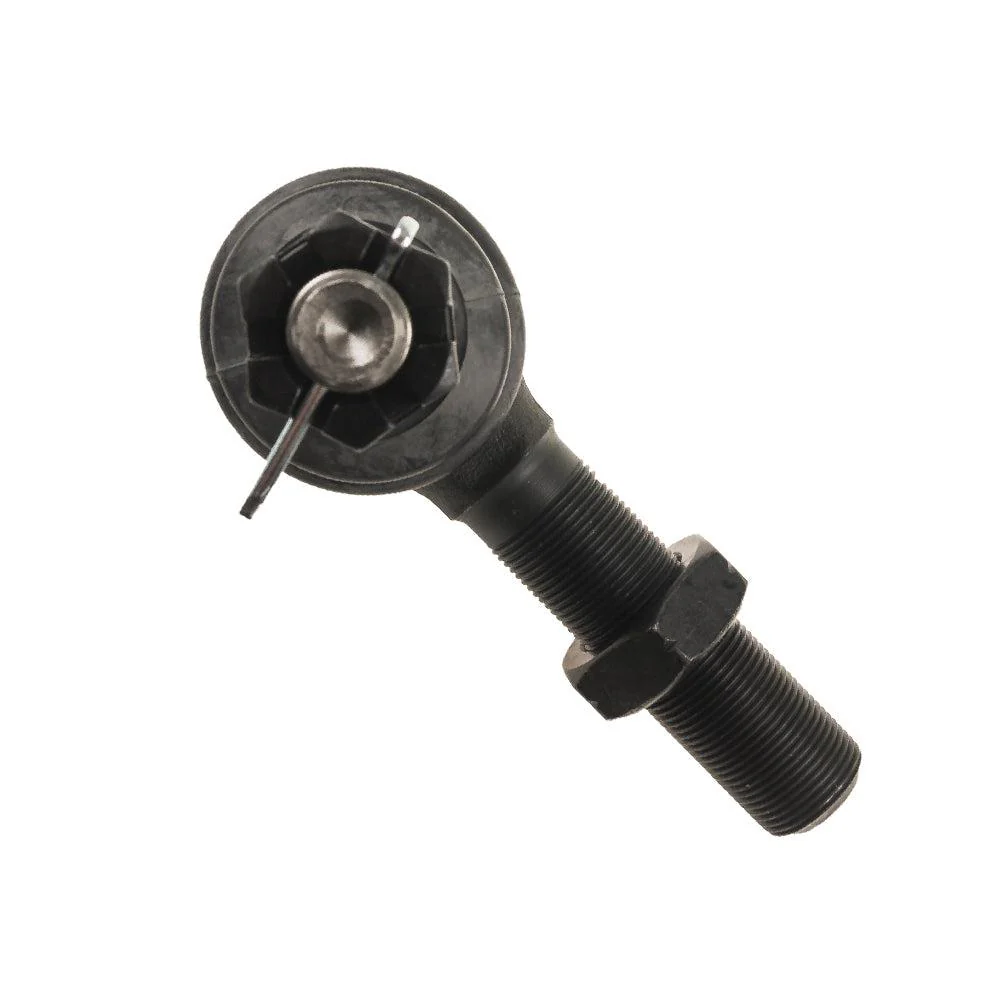

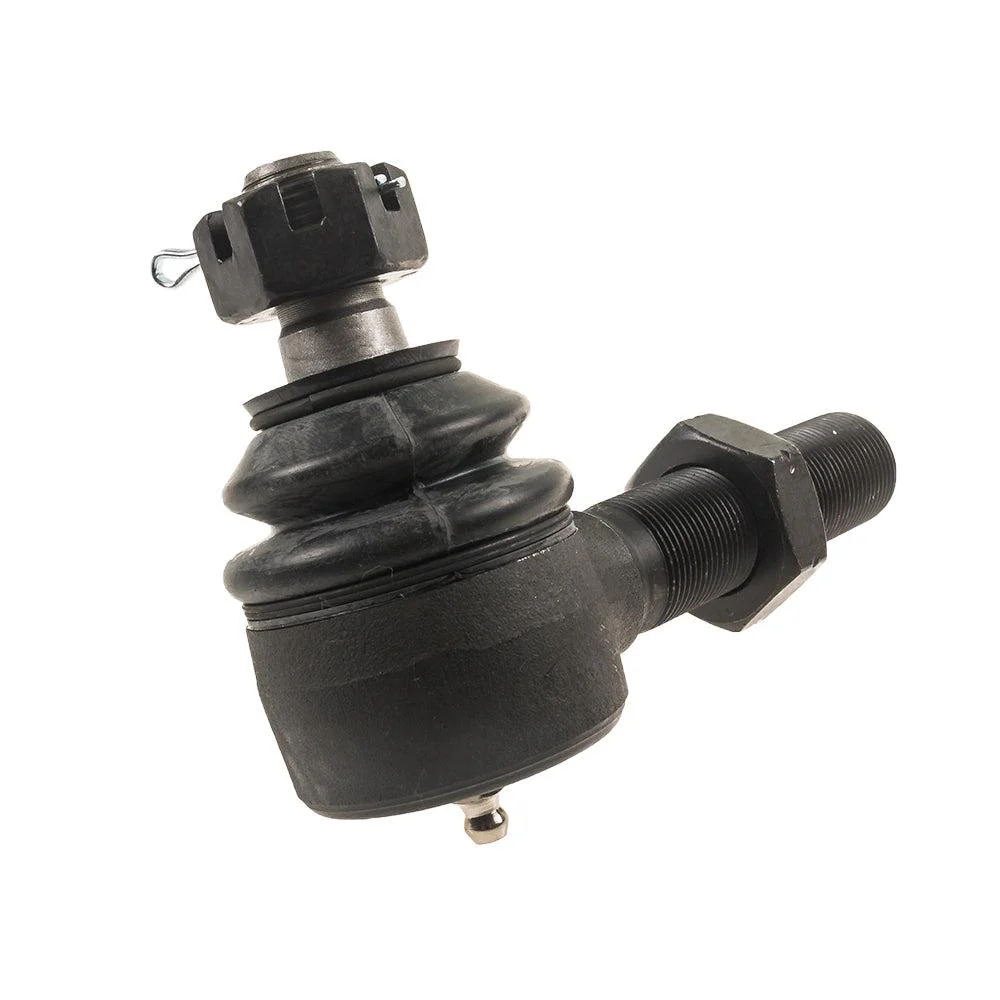

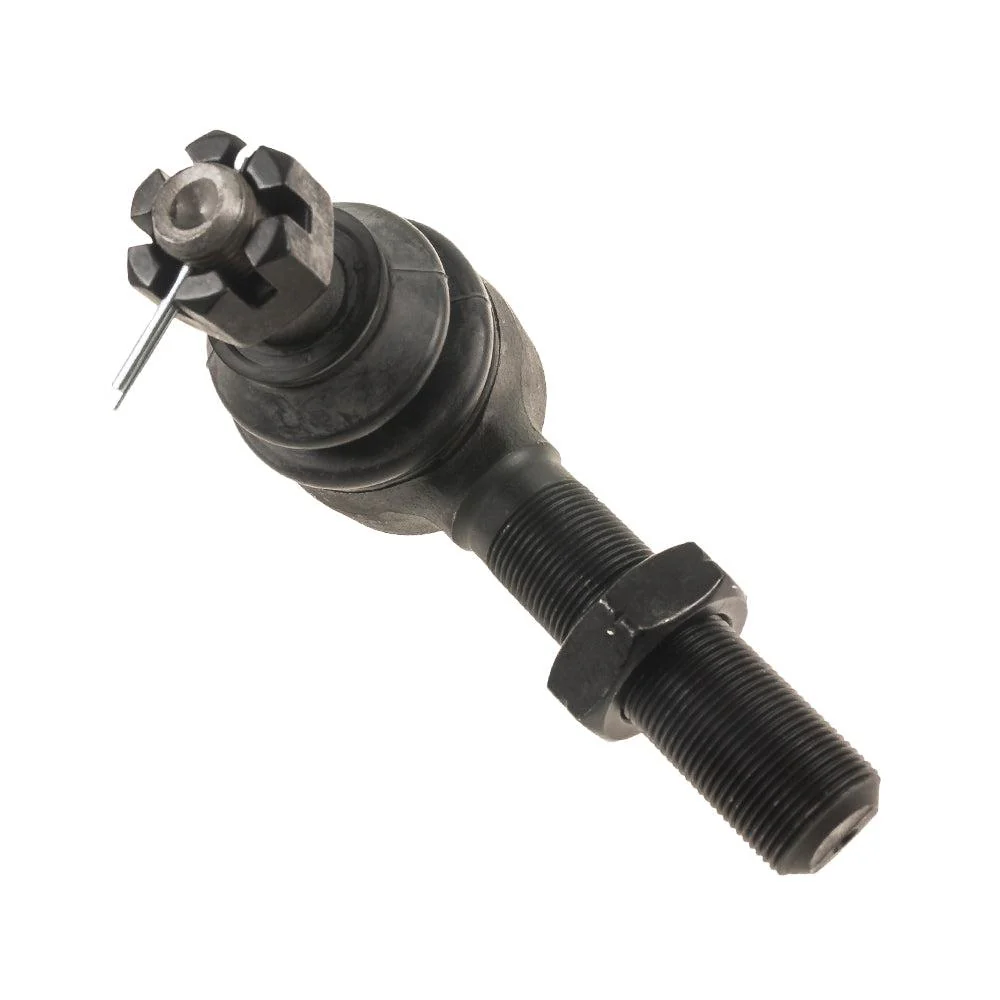

2007-2018 Jeep Tie Rod End (4131-L)

Description

Fits:

Year	Make	Model	Trim
2007-2010	Jeep	Wrangler	X, Unlimited X
2007-2017	Jeep	Wrangler	Unlimited Rubicon, Rubicon, Sahara, Unlimited Sahara
2010-2017	Jeep	Wrangler	Unlimited Sport, Sport
2011-2011	Jeep	Wrangler	70th Anniversary, Unlimited 70th Anniversary
2016-2016	Jeep	Wrangler	75th Anniversary, Sport S, Unlimited Sport S, Unlimited 75th Anniversary
2018-2018	Jeep	Wrangler JK	Unlimited Rubicon, Sport, Unlimited Sahara, Sahara, Unlimited Sport, Rubicon

HD Metal-on-Metal Tie Rod Ends; fully greaseable, wear resistant, & forged bearing housings are made from 1018 steel for a strong, smooth bearing surface. These tie rod ends outperform any other OEM or aftermarket version out there.

Part Number: 4131-L

Features

• Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
• Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears

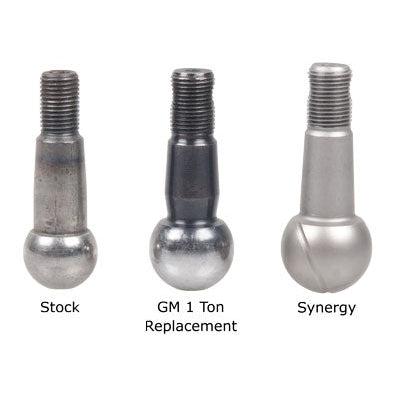

• Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
• A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
• Black NBR with retaining springs
• Includes all necessary hardware for installation
• 7/8-18 UNF LH Thread
• Sold Individually

Additional Info

Part #	Description	Thread	Taper	Style
4131-L	HD Tie Rod End, Left Hand Thread for JK's	7/8-18 Left Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Standard
4131-R	HD Tie Rod End, Right Hand Thread for JK's	7/8-18 Right Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Standard
4135-L	HD Tie Rod End, Left Hand Thread for TJ/XJ/ZJ's	7/8-18 Left Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Standard
4135-R	HD Tie Rod End, Right Hand Thread for TJ/XJ/ZJ's	7/8-18 Right Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Standard
4137-L	HD Tie Rod End, Left Hand Thread for TJ/XJ/ZJ's	7/8-18 Left Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Single Plane
4139-L	HD Tie Rod End, Left Hand Thread for JK's	7/8-18 Left Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Single Plane
4161-L	HD Tie Rod End, Left Hand Thread for JL	1-14 Left Hand	1:6 Taper (9.5 DEG INCL ANGLE)	Single Plane
4162-L	HD Tie Rod End, Left Hand Thread for JL / JT Drag Link	1-14 Left Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Single Plane
4163-L	HD Tie Rod End, Left Hand Thread for JL / JT Drag Link and Tie Rod	1-14 Left Hand	1:6 Taper (9.5 DEG INCL ANGLE)	Standard
4164-L	HD Tie Rod End, Left Hand Thread for JL / JT Tie Rod	1-14 Left Hand	1:6 Taper (9.5 DEG INCL ANGLE)	Single Plane
4166-L	Conversion Tie Rod End (Pitman side). Adapts 8000-01 Drag Link for JL / JT with Ultimate Dana 60 axle housings only.	7/8-18 Left Hand	1:8 Taper (7.125 DEG INCL ANGLE)	Single Plane

Notes

• 4131-L are designed specifically to be used in the following Synergy products: 8001, 8002 (2x required per product)
• 4135-L and 4135-R are designed to be used in the following Synergy product: 8121-00 (3x 4135-L and 1x 4135-R required)
• Synergy High Performance Grease (4119) is the recommended grease for this product
