2007-2018 JK Front Axle Truss (8012-15)

Description

Fits

Year	Make	Model
2007-2018	Jeep	JK

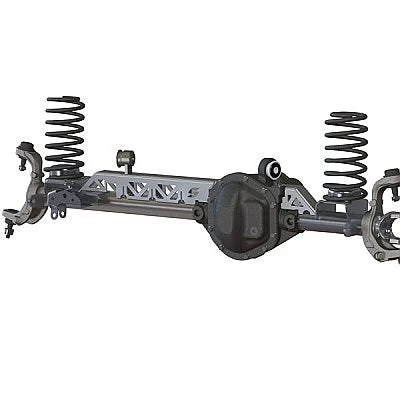

Formed from 3/16" steel plate for easy assembly, quick installation, and less welding; this Synergy axle truss replaces weak passenger side upper control arm mount that are prone to premature failure with lifts and larger tires!

Part Number: 8012-15

Features

• Formed design significantly reduces installation time compared to multi-piece designs
• Replaces weak stock passenger side upper control arm mount and includes BOTH passenger side & driver side
• Dual Durometer Bushings for axle housing
• Utilizes OEM size bushings - no proprietary sizes to commit to.
• Teflon bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• Compatible with stock, Bolt-On and Weld-On Track Bar Relocation Brackets
• CNC formed 3/16" Steel Construction

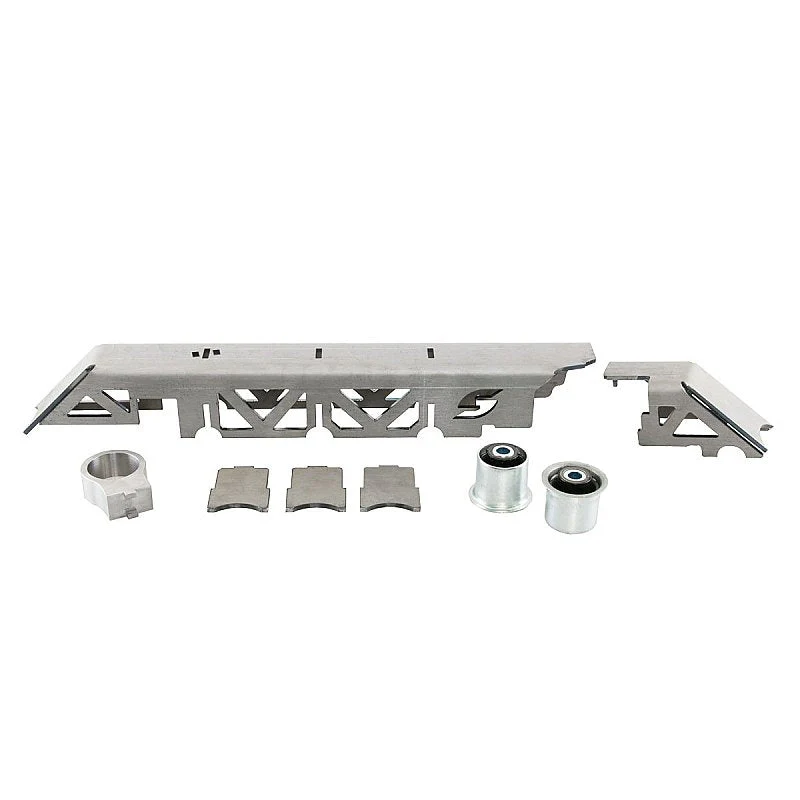

Includes:

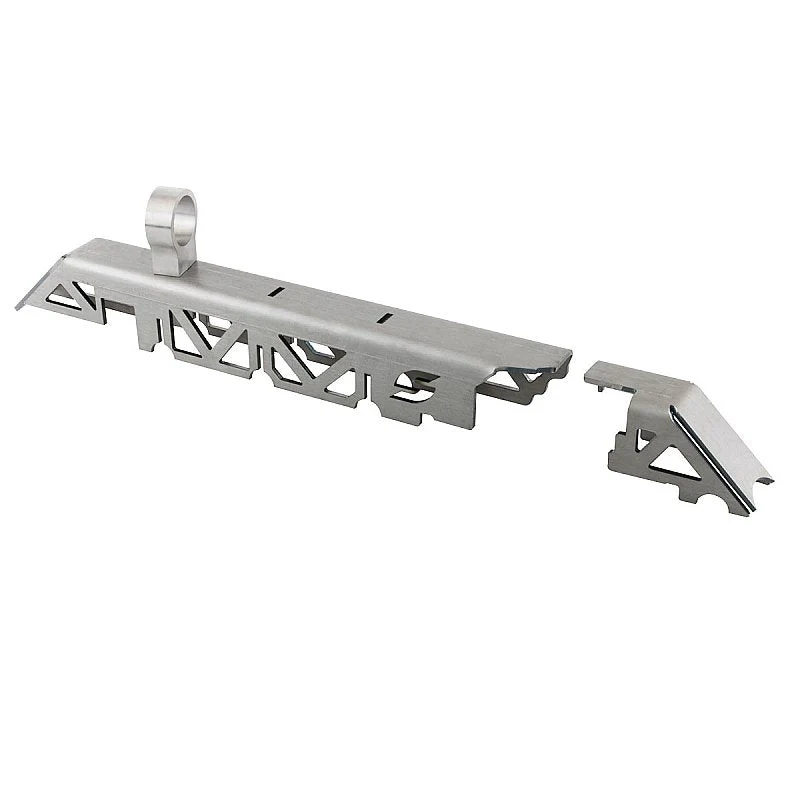

• Front axle truss
• 2 Front axle side Dual Durometer Bushings

Notes

• 8012-15 fits JK Rubicon Dana 44 front axles only
• 8012-16 fits JK Dana 30 front axles only
• Axle trusses are recommended to be used in addition to our Axle Assurance Kits, 8012-50-30 and 8012-50-44. The strengths gained from trussing AND sleeving outweigh the potential weight savings from just doing one.
• Compatible with bolt-on and weld-on front track bar relocation brackets, 8055 and 8012-13. Axle truss and track bar brackets can be installed in any order.
• Replacement Dual Durometer Bushings (DDB) are 4326-02
• Requires cutting/welding experience - should be installed by experienced welder/fabricator
