2008-2010 Powerstroke Pintop 4.5" Lift Kit (CS-F45-PT25-08)
Description
Fits
| Year | Make | Model |
| 2008 - 2010 | Ford | F-250 Super Duty |
| 2008 - 2010 | Ford | F-350 Super Duty |
Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.
One of the best off-road suspension systems Carli offers, the Pintop 4.5" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.
Part Number: CS-F45-PT25-08
Features

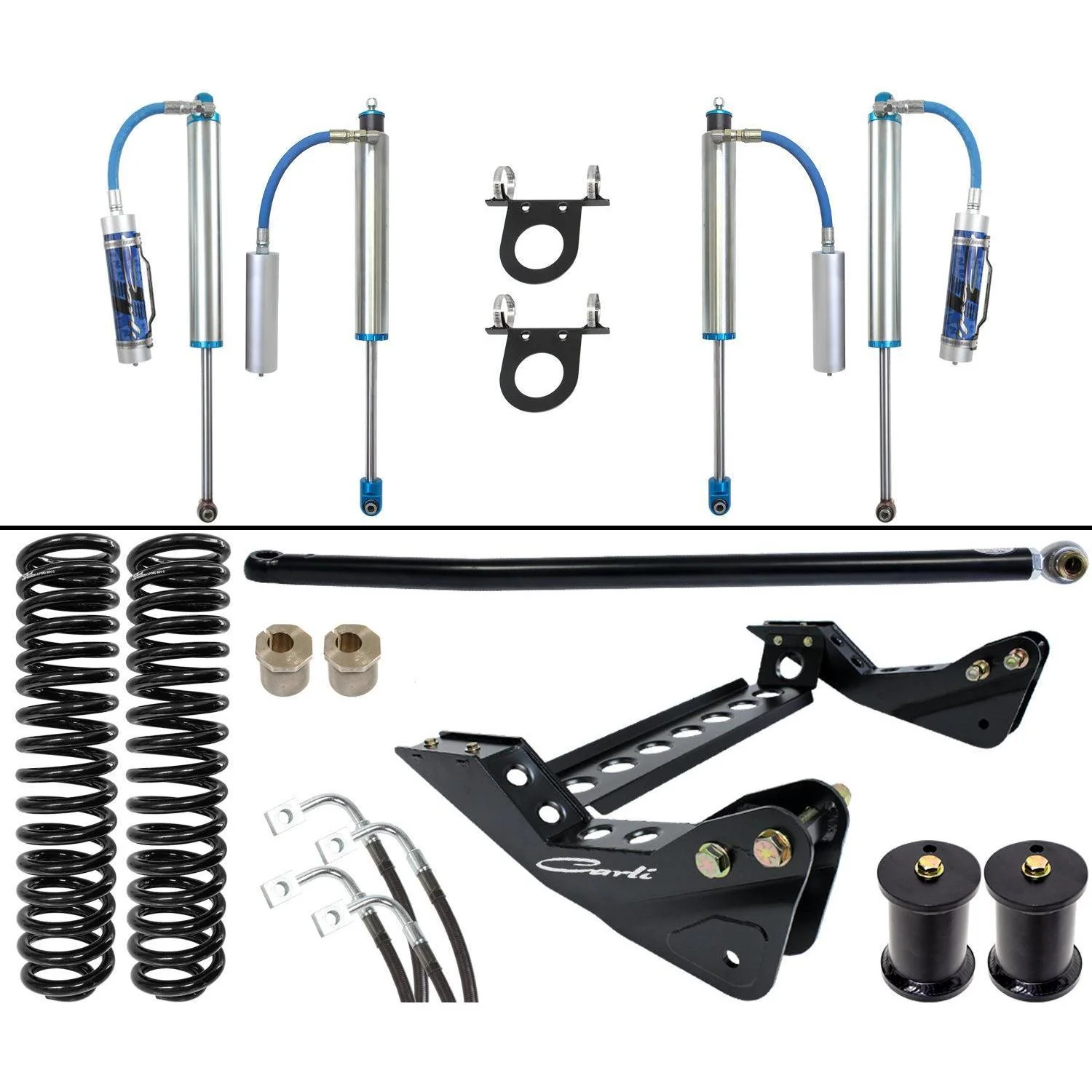

- Front and rear shock package, brake line kit, radius arm drop brackets, bump stop drops, caster correction shims, and an adjustable track bar
- Increases wheel travel to 11" front and 13" rear
- Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
- More fluid volume and piston movement, which results in improved heat dissipation, consistent damping
- Fully rebuildable, serviceable, and tuneable for whatever your preference is
Additional Info
-
Required and Optional Parts to support this system:
- Sway Bar End Links (REQUIRED): 08-10 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 4.5" LIFT CS-FEL-08
-
Leaf Spring Options (REQUIRED): 08-10 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK CS-FPAP-08 or 08-10 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-08
- Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
- Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F
- Long Travel Airbags (OPTIONAL): CS-FLTB-08
- Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-08
- Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-05
- Fabricated Radius Arms (OPTIONAL): CS-FARA-45-05
Notes
- A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
