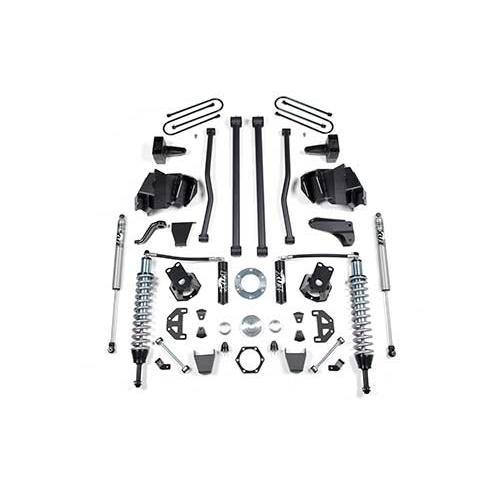

2009-2013 Cummins 8" BDS Coilover Lift Kit (BDS632F)

Description

Click here to customize this Kit

Fits

Year	Make	Model
2009-2013	Dodge / Ram	2500 Truck
2009-2012	Dodge / Ram	3500 Truck



Combining the control of a long arm lift kit with the dampening and performance of a Fox 2.5 Coilover makes this one of the greatest lift kit designs on the market! These systems were designed specifically to combine the high-performance characteristics of the Fox 2.5 Coilovers and BDS long arm suspension systems to create the ultimate 8" suspension system.

Part Number: BDS632F

Features

• Solid Steel 8" Upper Long Arms
• Tubular Lower Long Arms
• Forged Drop Pitman Arm
• Track Bar Relocation Brackets
• Extended Bump Stops
• Fox 2.0 Series Shocks
• Sway Bar Links
• Transfer case Indexing Ring
• Fox 2.5 Series Remote Reservoir Coilovers
• 5" Rear Block Kit
• Clears 38's
• Includes driveshaft spacers

Tire & Wheel Combinations:

• 38" x 14.0" w/ 17 x 9 and 4.5"

Notes

• Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require 406
• Rear lift options will not fit dually applications.
• If driveline vibration occurs, order either transfer case drop or indexing kit available in optional accessories. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
• 102009 Rear brake lines will not fit 2012-2013 models.
• Additional front driveline modification may be required.
• Exhaust modification will be required for dual rear shock kit 12200
• Will not fit Cab and Chassis models

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
