2009-2014 Ford F-150 Morimoto XB Evo Headlights (LF2-506)

Description

Fits

Year	Make	Model
2009-2014	Ford	F-150

Evolutionary: A simple design refresh would have been easy, but that's not what this is all about. The all-new XB Evo headlights are a showcase of everything Morimoto is made of.

Part Number: LF2-506

Features

• XB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

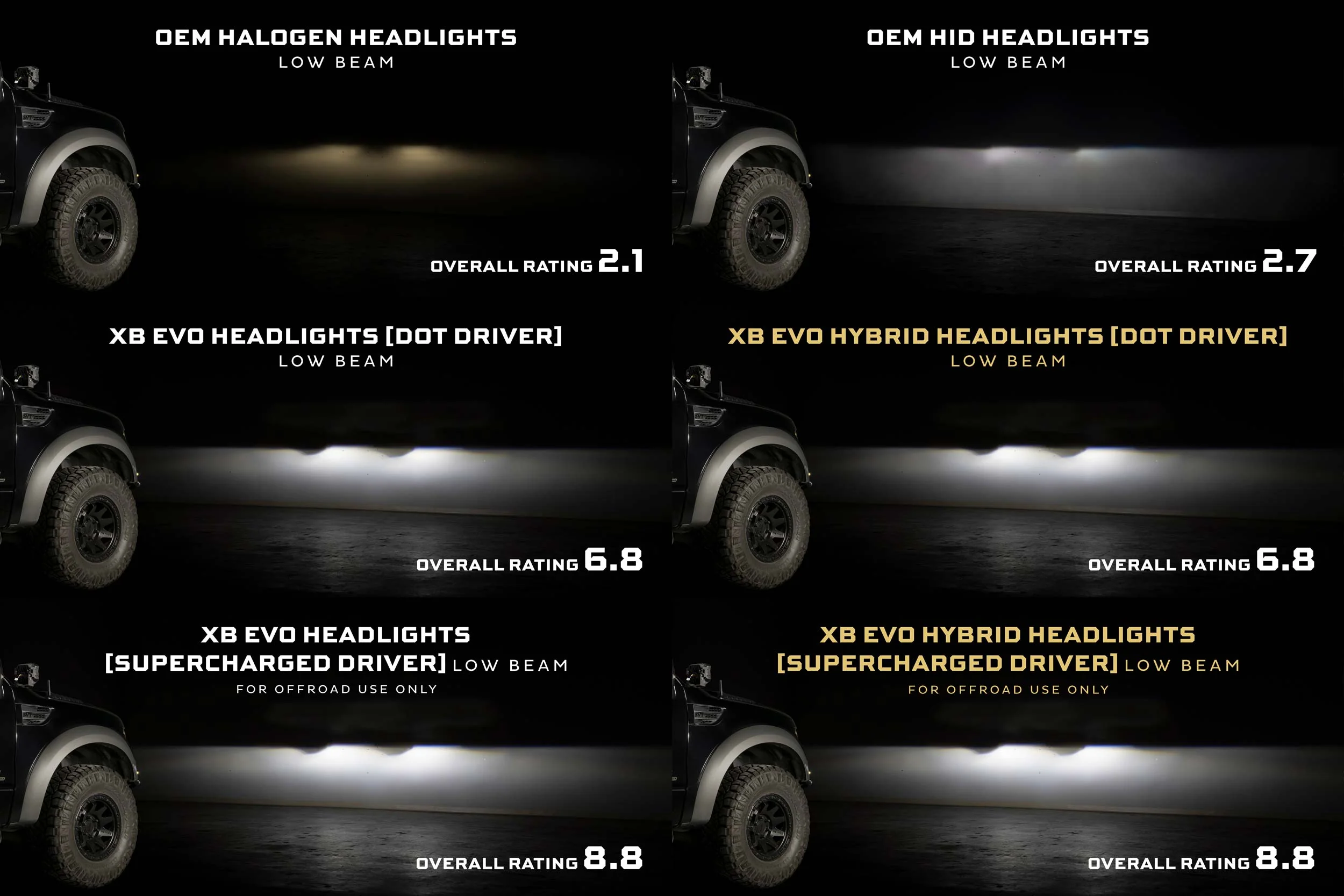

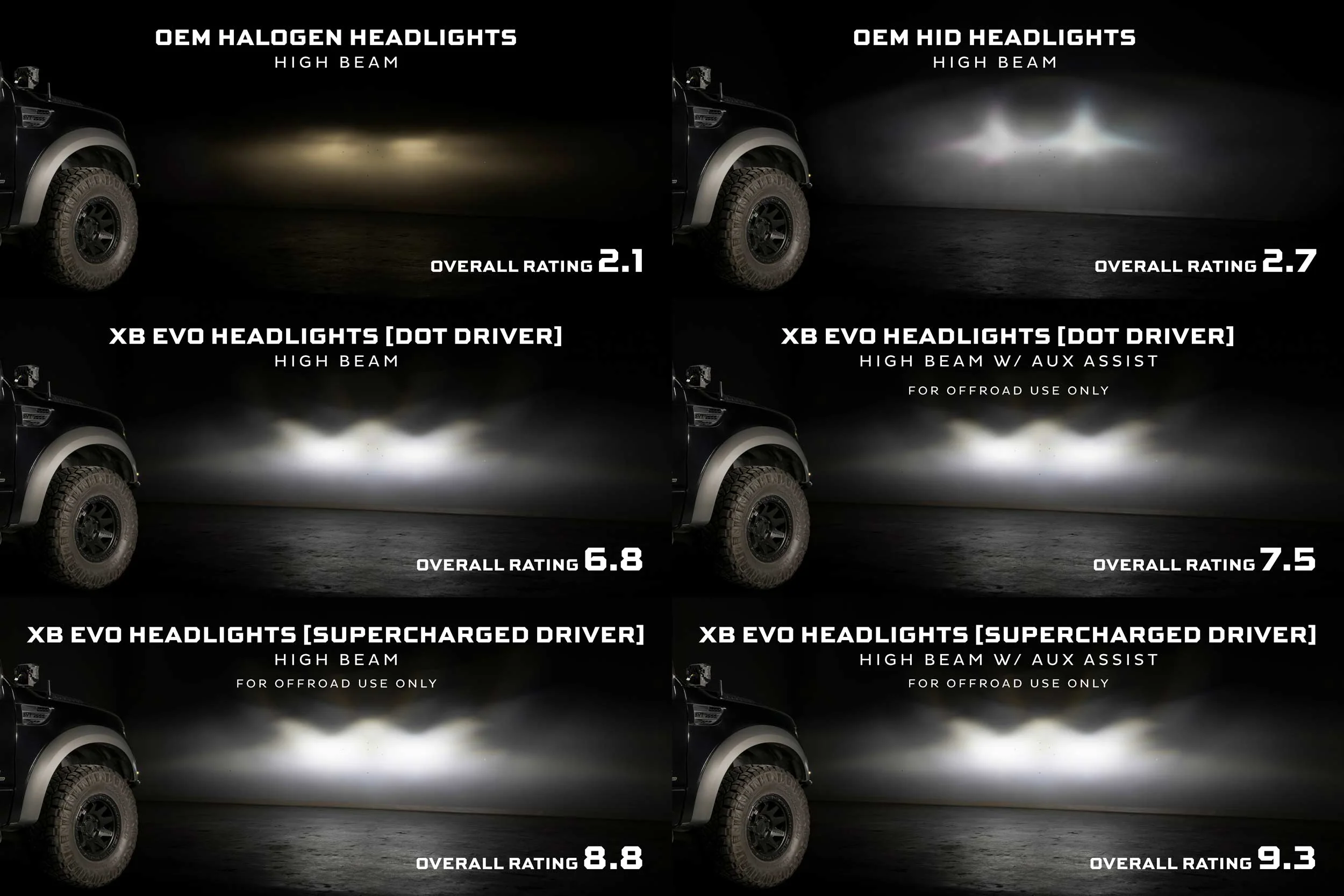

• All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution.
• Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will utperform the XB Evo.
• On and Off Road: Meets DOT compliance standards for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30-50%, making them the brightest option for F-150 owners.
• Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter.
• Activated by flashing the high beams four times when the temperature drops below 5C / 41F, this ensures consistent headlight performance in cold climates.
• Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key.
• The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
• Designed, Engineered, and Tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, backed with an industry-leading five-year warranty.

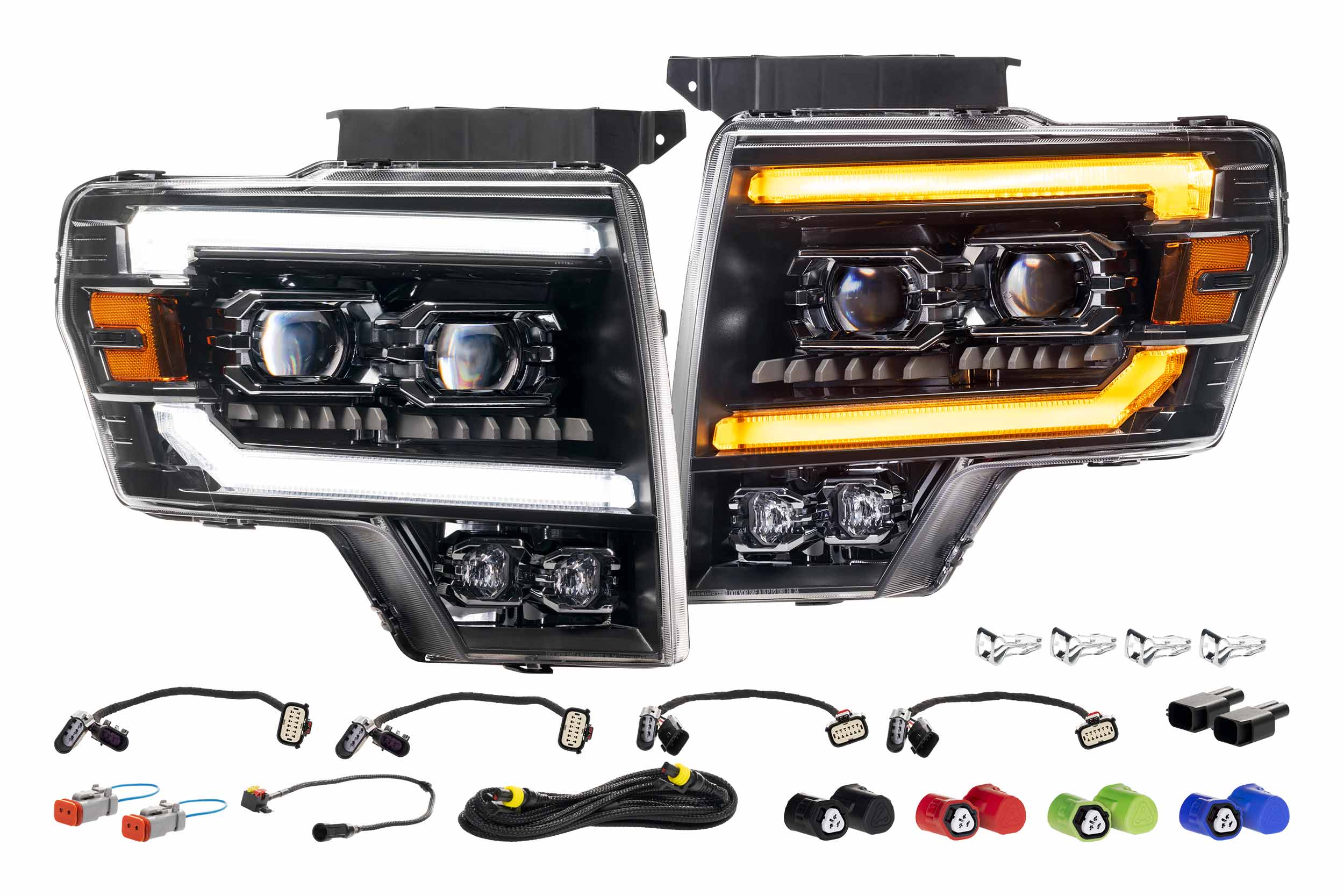

Includes:

• Headlights: One Pair 09-14 Ford F-150 XB Evo (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)
• Accessories: 2x Halogen Input Harnesses, 2x OEM HID Input Harnesses, 1x DRL Harness, 2x High Beam Keys, 2x Side Marker Connector Caps, Fuse Tap Hardware, 4x Mounting Clips
• Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings

Additional Info

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)
• Output (Supercharged Drivers): +30-50% (Non-Compliant)
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• High Beam Assist: 2x Morimoto 1Banger NCS Combo Beam*
• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
• Turn Signal Modes: Sequential or Fade Off (Configurable)
• DRL Colors: White or Amber (Configurable)
• DRL/Signal Optics: Glass-like 3D Optics
• Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans
