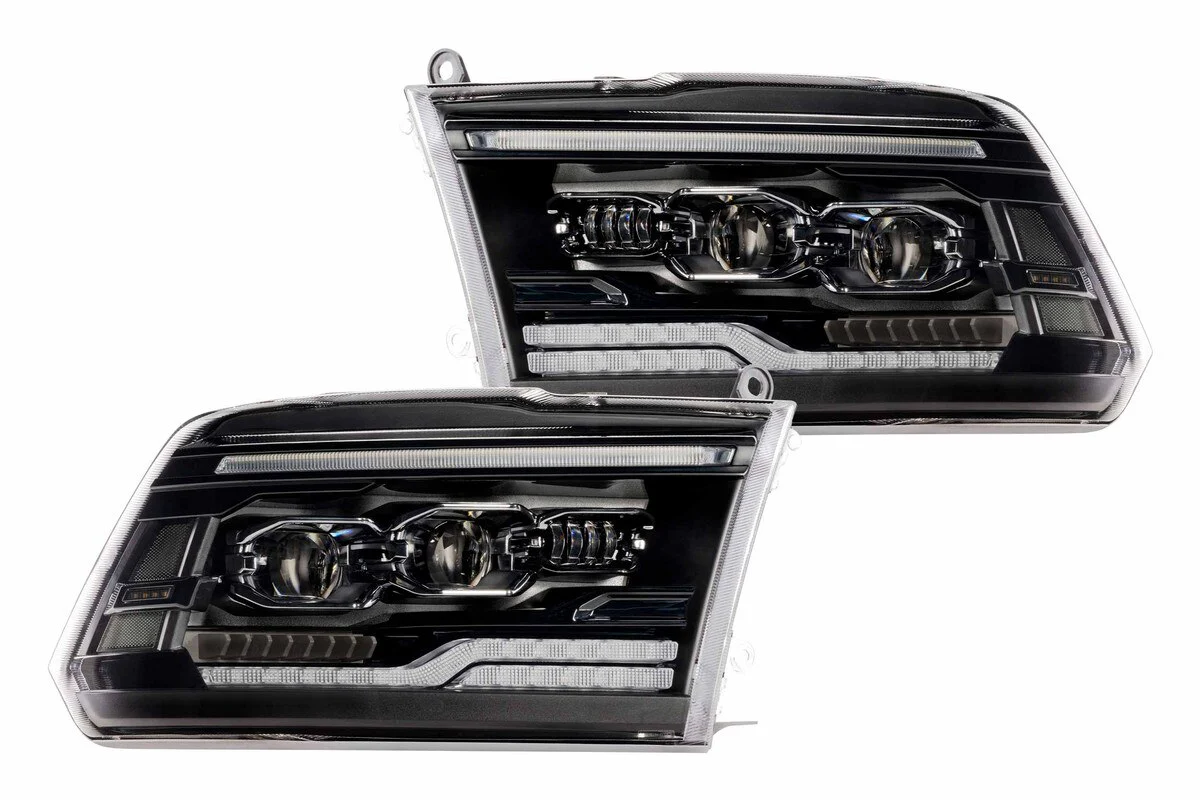

2009-2024 Ram 1500/HD XRGB Evo LED Headlights (LF2-520R)

Description

Fits

Year	Make	Model
2009-2018	Dodge	Ram 1500/ 2500/3500HD
2019-2024	Ram	1500 Classic

Note: Canadian trucks require the LF2-520HCA harnesses.

Ditch the dim factory buckets and give your Ram the aggressive, high-output lighting it deserves with the Morimoto XRGB Evo LEDs. Engineered for maximum visibility and a custom look, these headlights feature Bluetooth-controlled RGB daytime running lights and dual Bi-LED projectors that absolutely pierce the night. Built to outlast your truck and backed by a five-year warranty, they are the ultimate upgrade for any serious diesel enthusiast.

Part Number: LF2-520R

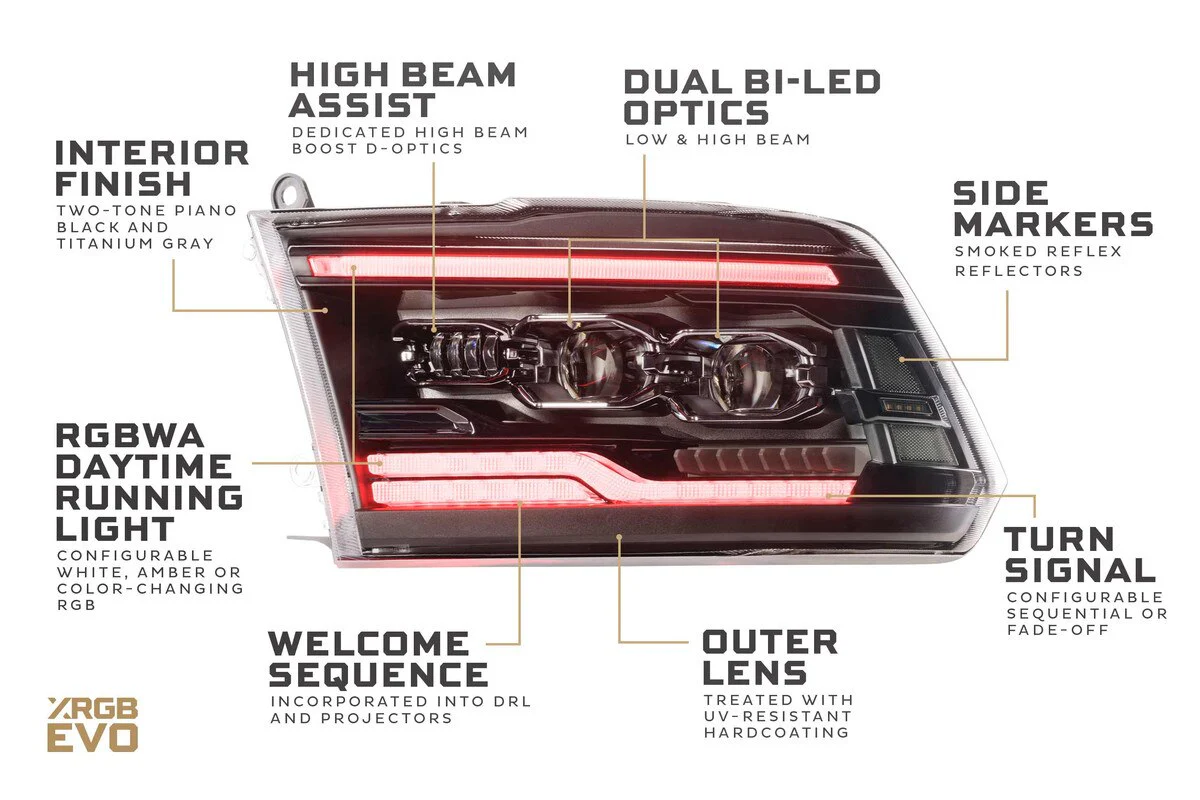

Features

• Dual Bi-LED Projectors
• Bluetooth RGB Control
• Signal Swap Keys
• Nichia Automotive LEDs
• UV-Resistant Lenses
• Start-up Sequence
• Five-Year Warranty

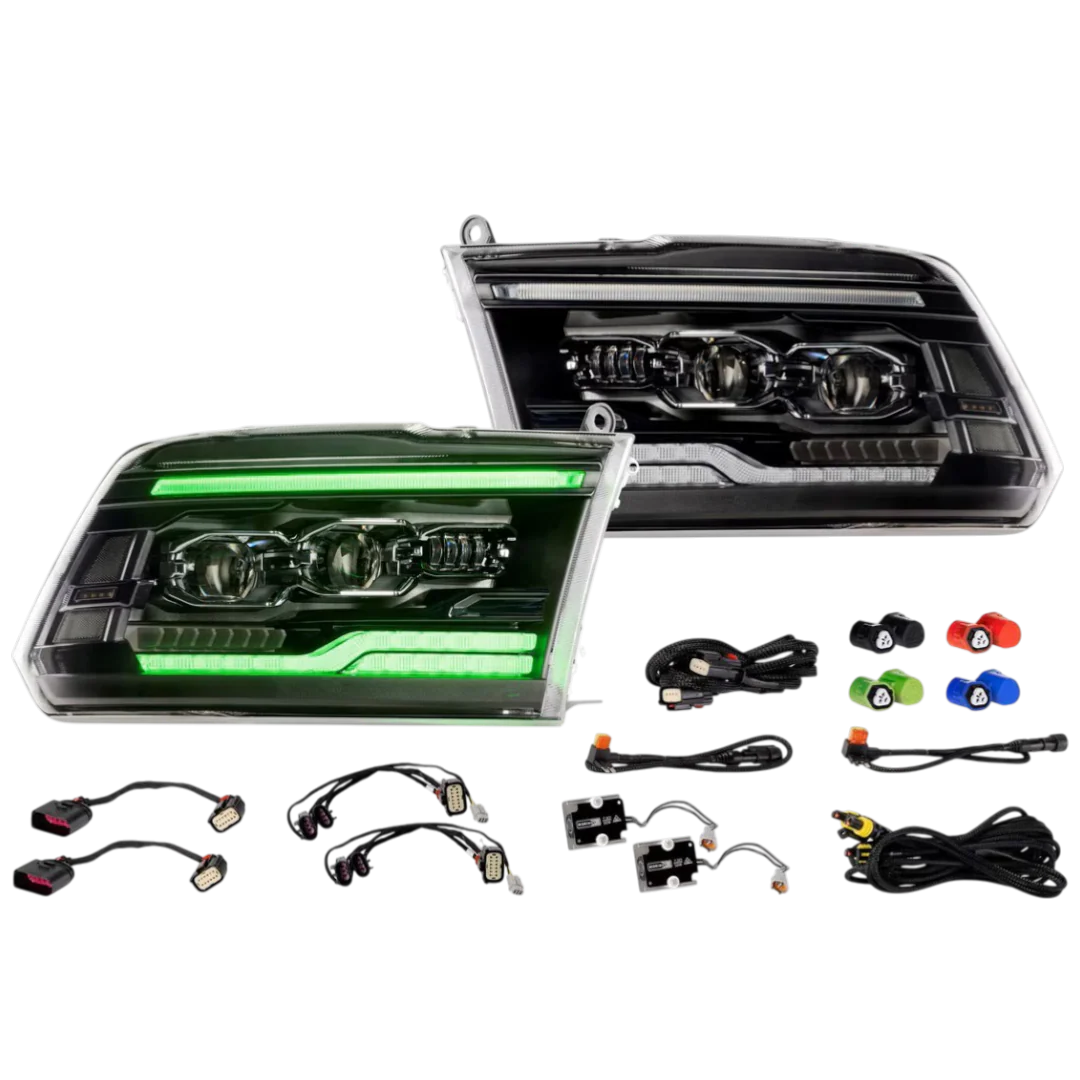

Includes

• 1x Right Hand / Passenger Side Headlight
• 1x Left Hand / Driver Side Headlight
• 1x Mini Fuse Tap & 1x Micro Fuse Tap
• 1x DRL Harness & 1x RGB Crossover Harness
• 2x Magnet-Mount Resistors
• 2x OE Reflector Headlight Harnesses
• 2x OE Projector Headlight Harnesses
• 8x DRL / Signal Mode Selectors (4 Pairs)

Specifications

• Traffic Pattern: LHD / Right Hand Traffic Only
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
• Functions: Low, High, Park, Turn, RGB DRL, Welcome Sequence
• Turn Signal Modes: Sequential or Fade Off (Configurable)
• DRL Colors: RGB (via BT app), White or Amber (Configurable)
• Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures
• Side Marker: Smoked side reflex reflector
• Lens Details: Polycarbonate with proprietary anti-UV hard coating

Notes

• Due to the RGB color-changing DRL and smoked markers, these are not DOT-compliant for on-road use.
• Canadian Models require additional LF2-520HCA harnesses for proper operation.

• Replaces Mopar part numbers: 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC.
• These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

Installation

Click Here For Instructions

Videos

Warranty

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
