2011-2016 Powerstroke 2.5" Coilover Lift Kit (BDS1510FPE)

Description

Click here to customize this Kit

Fits

Year	Make	Model	Type
2011-2016	Ford	F250/F350 Super Duty	4WD Diesel



These Fox 2.5 Series Coilovers with improved dampening capability and performance across any terrain; convert your Powerstroke from the original Coil spring front end to a setup that vastly improves your control and versatility of your truck with minimal lift.

Part Number: BDS1510FPE
Superseded Part Number: BDS1510F

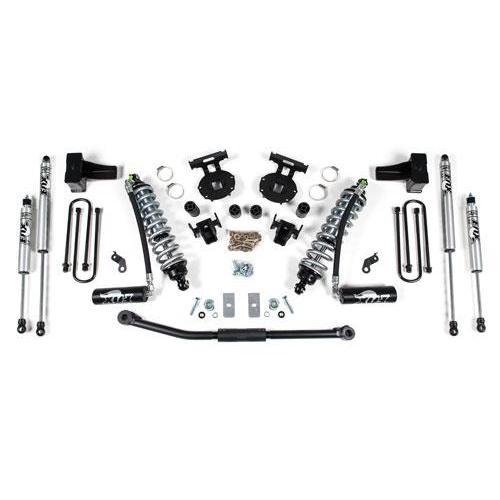

Features

• Fox 2.5 Remote Reservoir Coilover
• Fox 2.0 Series Shocks
• Alignment Cams
• HD Adjustable Track Bar
• Sway Bar & Brake Line Relocation Brackets
• 4" Rear Block Kit
• U-Bolt Kit
• Clears 35" Tires

Tire & Wheel Combinations:

• 35" x 12.50" w/ 17 x 9 and 5"
• 35" x 12.50" w/ 18 x 9 and 5"
• 35" x 12.50" w/ 20 x 9 and 5"

Notes

• Exhaust modification may be required to clear the front driveshaft (gas only)
• Front bumper spacer kit may be required to run 38"x15.50" tires
• Although extremely rare, front driveline vibration may occur
• If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
• Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually.
• Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone
• BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
