2011-2016 Powerstroke 2.5" Radius Arm Lift Kit (BDS1509H)

Description

Fits

Year	Make	Model	Lift	Type
2011-2016	Ford	F250/F350 Super Duty	2.5"	4wd Diesel



If you want to lift your Powerstroke and increase its strength, control, and durability we recommend looking at this 2.5" Radius arm lift kit by BDS Suspension. This new system is built around massive tubular replacement radius arms. These arms are built to handle far more than the factory parts they are replacing. The design incorporates a factory-style rubber bushing mount at the frame to keep the NVH levels in check and mount right into the factory locations so installation is simple and clean.

Part Number: BDS1509H

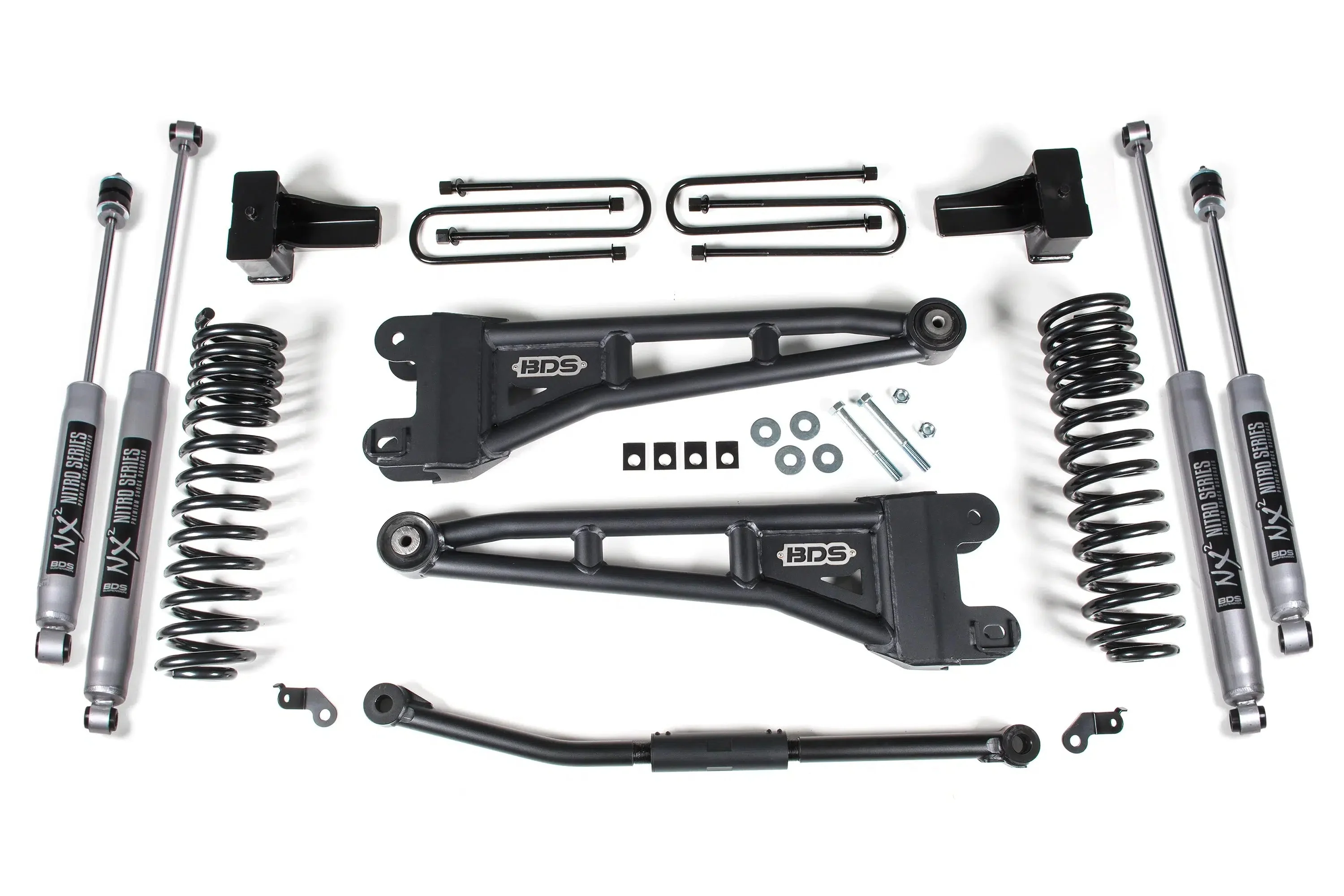

Features

• ProRide 2.5" Coil Springs
• Alignment Cam Locks
• 3-1/4" diameter bushings
• HD Radius Arms
• 2" Rear Block Kit with Bump Stop Wing
• NX2 Series Shocks
• Front Brake Line Relocation
• HD turnbuckle style adjustable track bar
• Clears 35's
• Retains OE driving dynamics

Tire & Wheel Combinations:

• 35" x 12.50 w/ 17 x 9 and 5"
• 35" x 12.50 w/ 18 x 9 and 5"
• 35" x 12.50 w/ 20 x 9 and 5"

Notes

• Designed for Diesel models w/o top mounted overload rear springs. Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance. For a more tail-high stance, substitute #013519 5" rear block kit.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
