2011-2016 Powerstroke 4" 4-Link Lift Kit (BDS593FPE)
Description
Fits
| Year | Make | Model |
| 2011-2016 | Ford F-Series | 6.7L Powerstroke |
Click here to Customize this Kit
Take your Powerstroke to the next level with the BDS 4-link conversion system. These high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel in the rear of these 4" systems. And NX2 Series or Fox 2.0 shocks complement the front setup for impressive performance.
Part Number: BDS593FPE
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Tire Fitment:
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Additional Info
Rear Lift Option

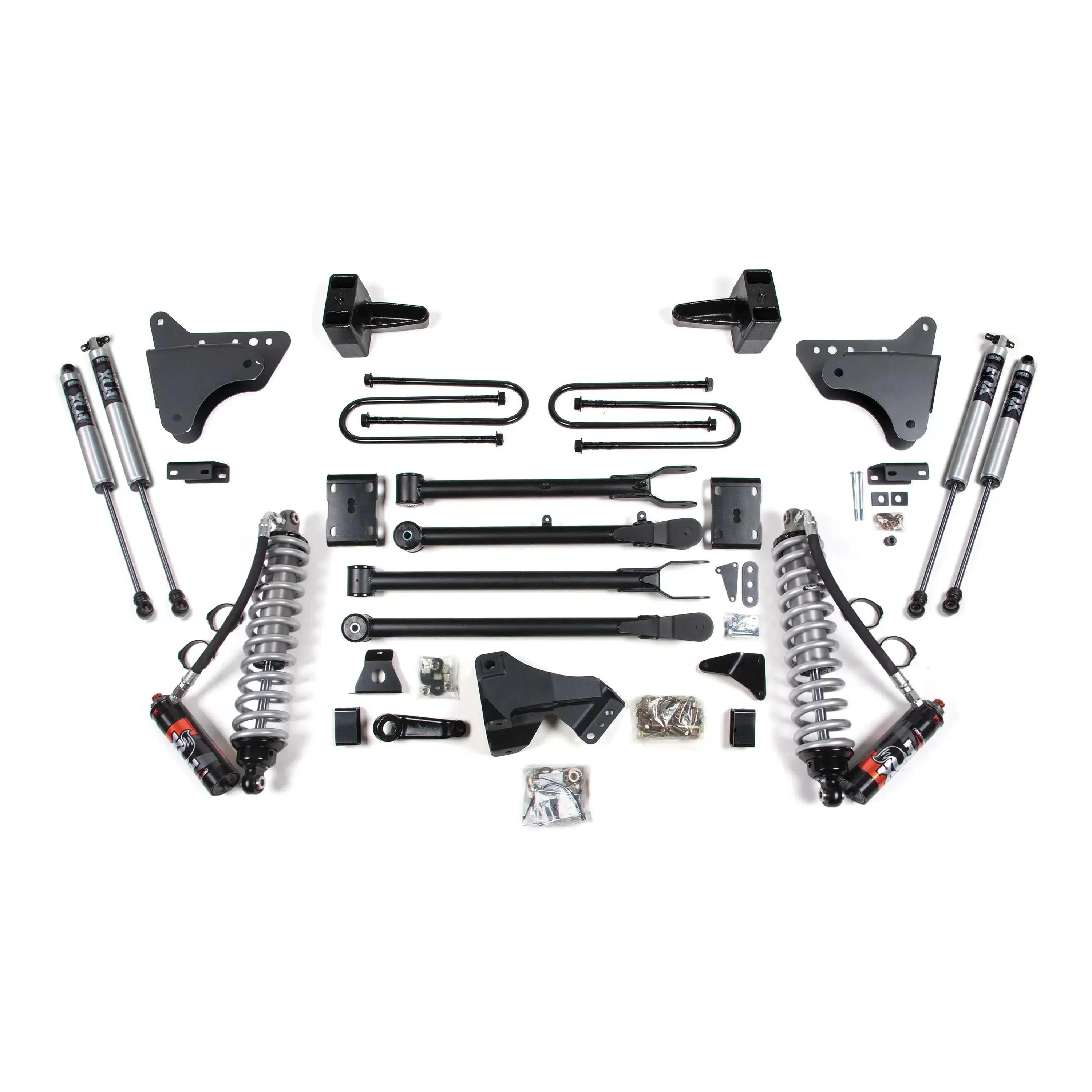

Block Kit
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.

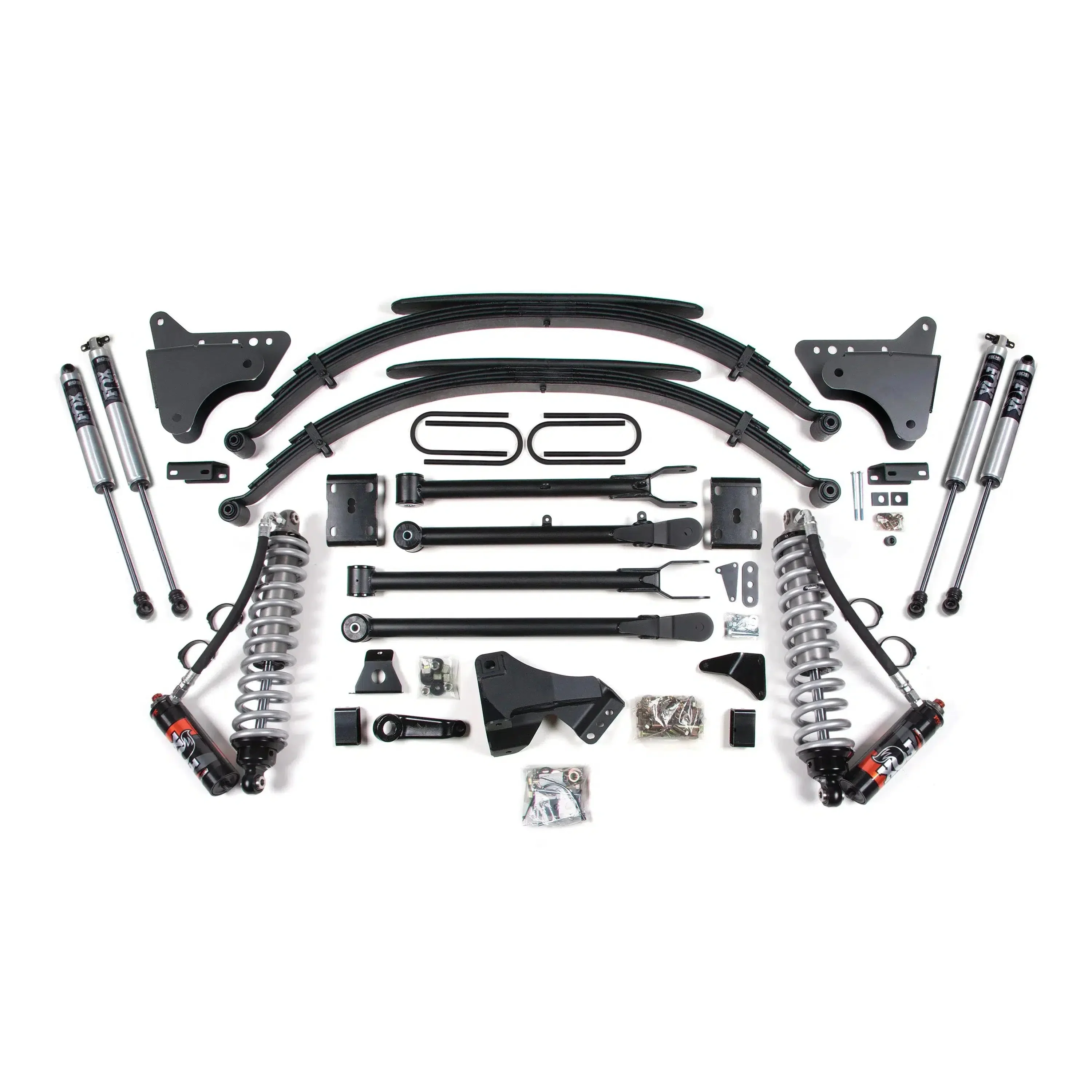

Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Notes
- Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems)
- If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required
- Although extremely rare, front and/or rear driveline vibration may occur
- If equipped with rear sway bar, #123009 required
- U-bolts will not work on dually
