2011-2016 Powerstroke Backcountry 4.5” Lift Kit (CS-F45-BC-CS-11)

Description

Fits

Year	Make	Model
2011 - 2016	Ford	F-250 Super Duty
2011 - 2016	Ford	F-350 Super Duty

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

The perfect comprehensive suspension setup for your Powerstroke, with front progressive-rate coil springs that provide the perfect blend of comfort and control, similar to Multi-rate coil springs, they stay soft for a smooth ride, but stiffen up as more pressure is applied, ideal if you tow or haul frequently. Paired with Carli's 2.0 remote reservoir shocks to further maintain stability, control, and provide superior bottom-out protection.

Part Number: CS-F45-BC-CS-11

Features

• Carli-Tuned remote reservoir 2.0 shocks, which provide a more comfortable on-road feel and better off-road performance
• Corrosion resistant aluminum bodies provide a long-lasting finish

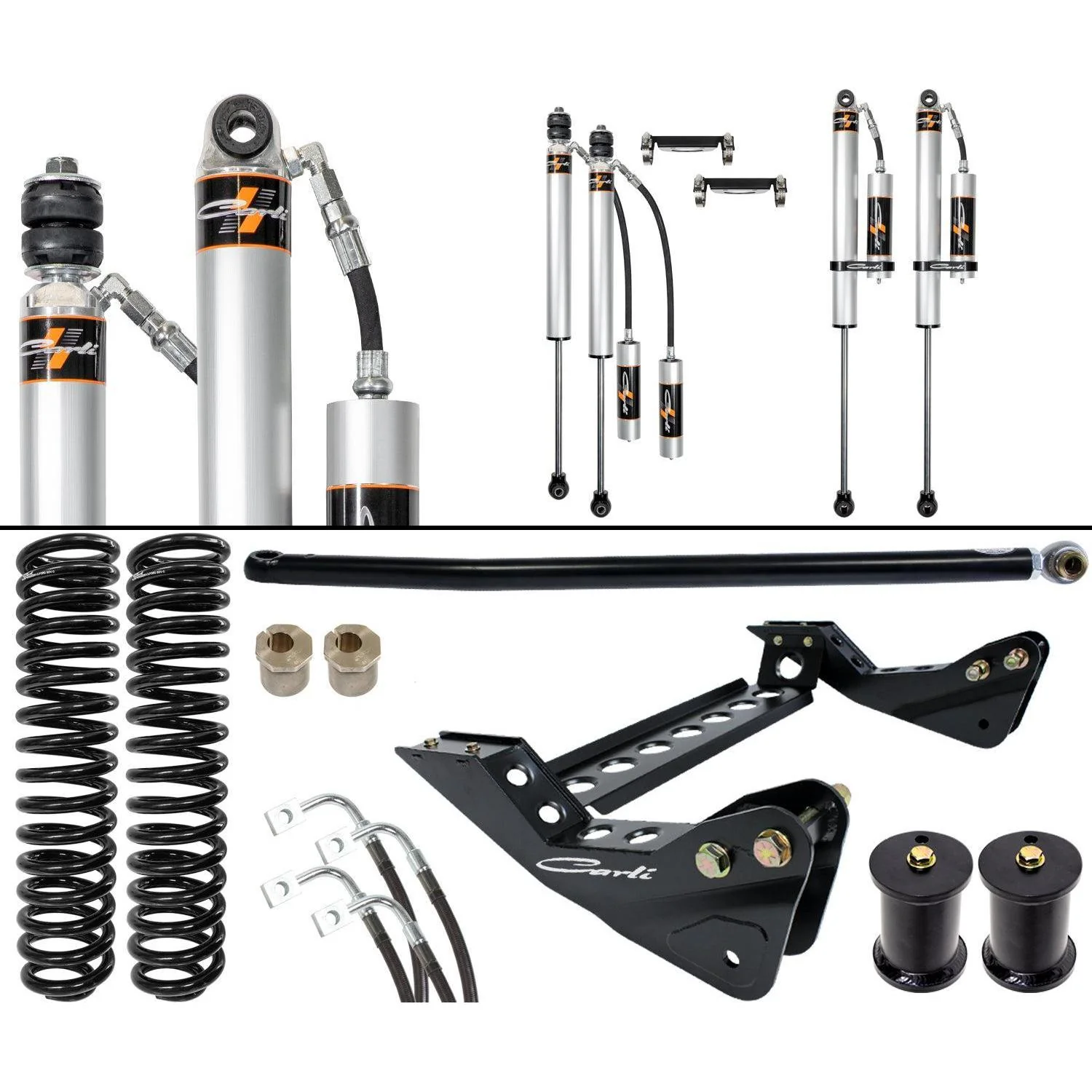

• Front and rear shock package, brake line kit, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
• Increases wheel travel to 11.3" front and 13.8" rear


Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 11-16 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 4.5" LIFT CS-FSBD-11 or 11-16 FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5" LIFT CS-FTSB-45-11

  • Rear Leaf Spring Options (REQUIRED): 11-16 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK KIT CS-FPAP-11 or 11-16 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-11

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Long Travel Bags (OPTIONAL): CS-FLTB-08
  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-08
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-05
  • Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F
  • Fabricated Radius Arms (OPTIONAL): CS-FARA-45-05

Notes

• A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
