2011-2016 F-Series Pintop 2" Lift Kit (CS-FLVL-PT25-11-GAS)

Description

Fits

Year	Make	Model
2011 - 2016	Ford	F-250 Super Duty GAS
2011 - 2016	Ford	F-350 Super Duty GAS

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

One of the best off-road suspension systems Carli offers, the Pintop 2" leveling lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-FLVL-PT25-11-GAS

Features

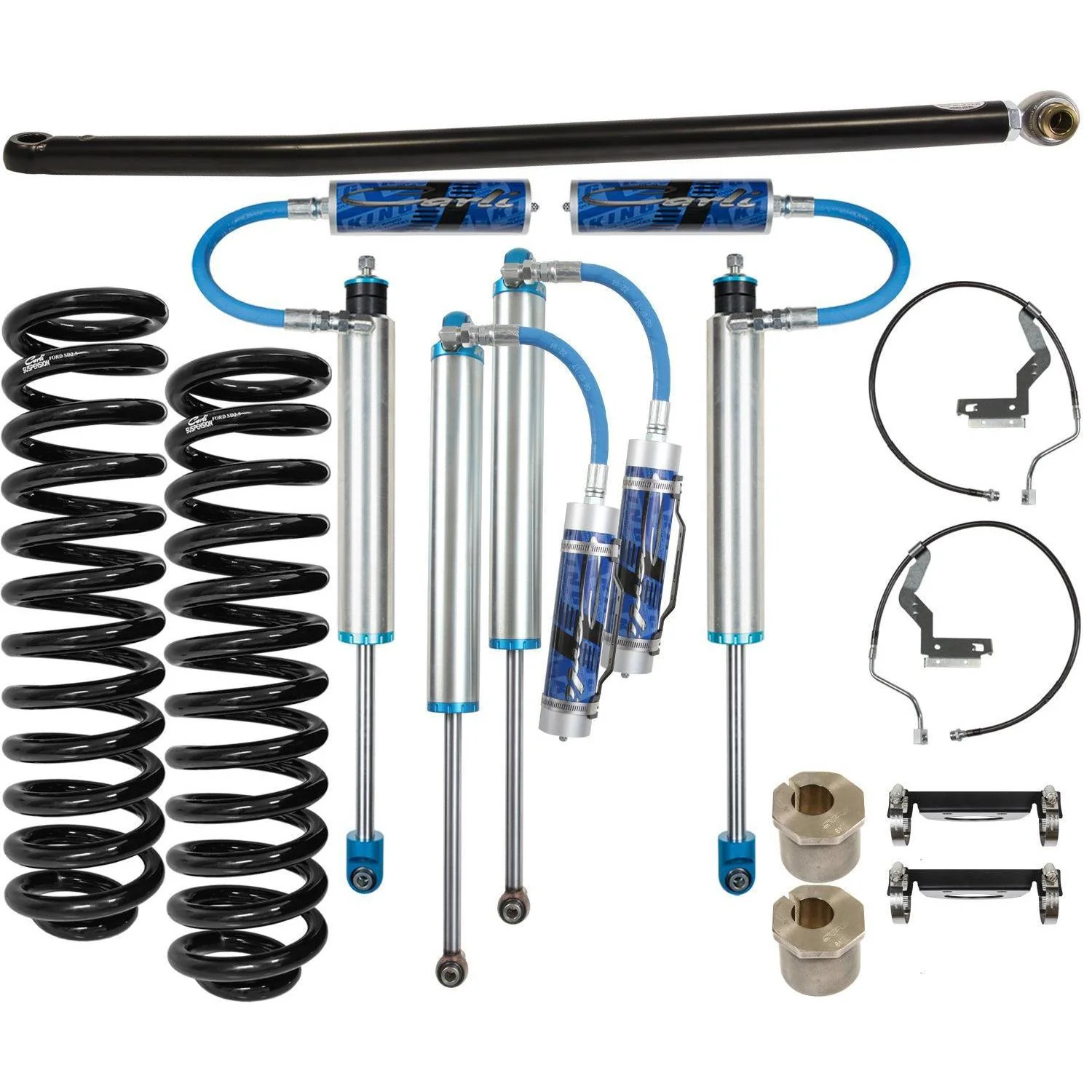

• Front and rear shock packages, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

• Fully rebuildable, serviceable, and tuneable for whatever your preference is

Additional Info

• Required and Optional Parts to support this system:
  • Rear Leaf Spring Options (REQUIRED): 11-16 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK KIT CS-FPAP-11 or 11-16 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-11 or 11-16 FORD F250/350 4X4 HEAVY DUTY FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-11-HD

  • Torsion Sway Bar: 11-16 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5" LIFT CS-FTSB-LVL-11

  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Radius Arms: CS-FARA-LVL-05

  • Steering Stabilizer - High mount: CS-FHMSS-08
  • Steering Stabilizer - Low mount: CS-FLMSS-05


Notes

• A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.
