2011-2016 Powerstroke PowerFlo Lift Pump w/ Fuel System Upgrade Kit (FPE-PF-FMC-1116-SB/LB)

Description

Fits

Year	Make	Model
2011-2016	Ford	F-Series (F250/350/450) w/ 6.7L Powerstroke

Upgrade your 6.7L Powerstroke with the PowerFlo Lift Pump from Fleece Performance—a complete, drop-in fuel system solution. This kit replaces your in-tank sending unit and factory frame-mounted filter with a high-flow PowerFlo pump and durable Donaldson filter. It installs without cutting or splicing and fits into the factory mounting points. Pair it with Fleece’s under-hood filter base and optional fuel heater for the ultimate fuel delivery setup.

Cross Reference:

Features

• Direct In-Tank Replacement: The PowerFlo lift pump retains the factory fuel lines, water-in-fuel sensor, and installs in less than half the time of other high flow lift pumps.

• Ultra-Quiet-Dual Gerotor: Two is always better than one, and the PowerFlo delivers with two industry-proven ultra-quiet gerotor pumps, providing increased flow capacity and the ability to support up to 800 HP!

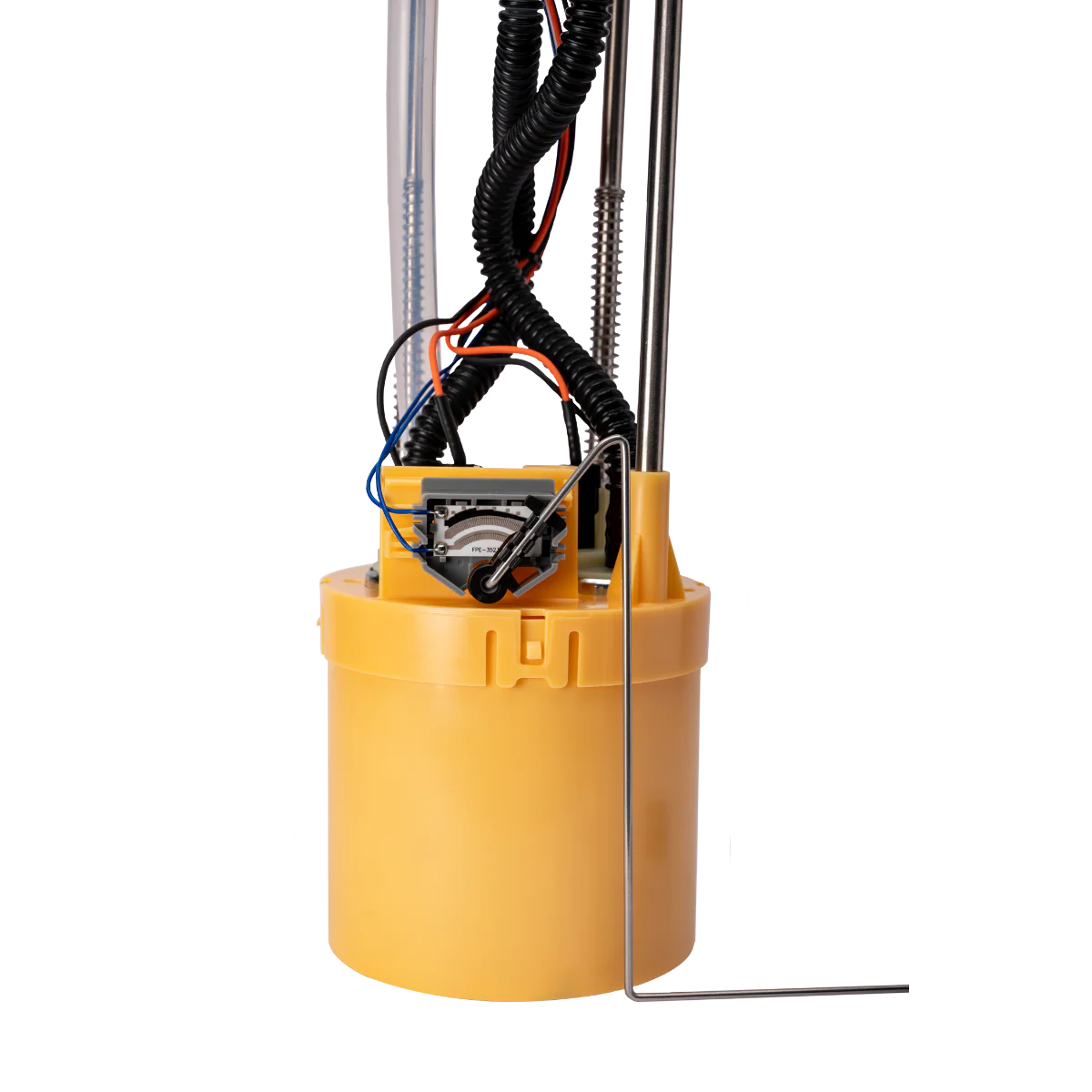

• Seamless Integration: The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the ¼ tank issues typically encountered when seeking a higher flow lift pump to meet your engine’s need. This kit requires no cutting, splicing, or modification of the existing fuel lines, harness, or fuel tank and retains all factory diagnostic functionality.

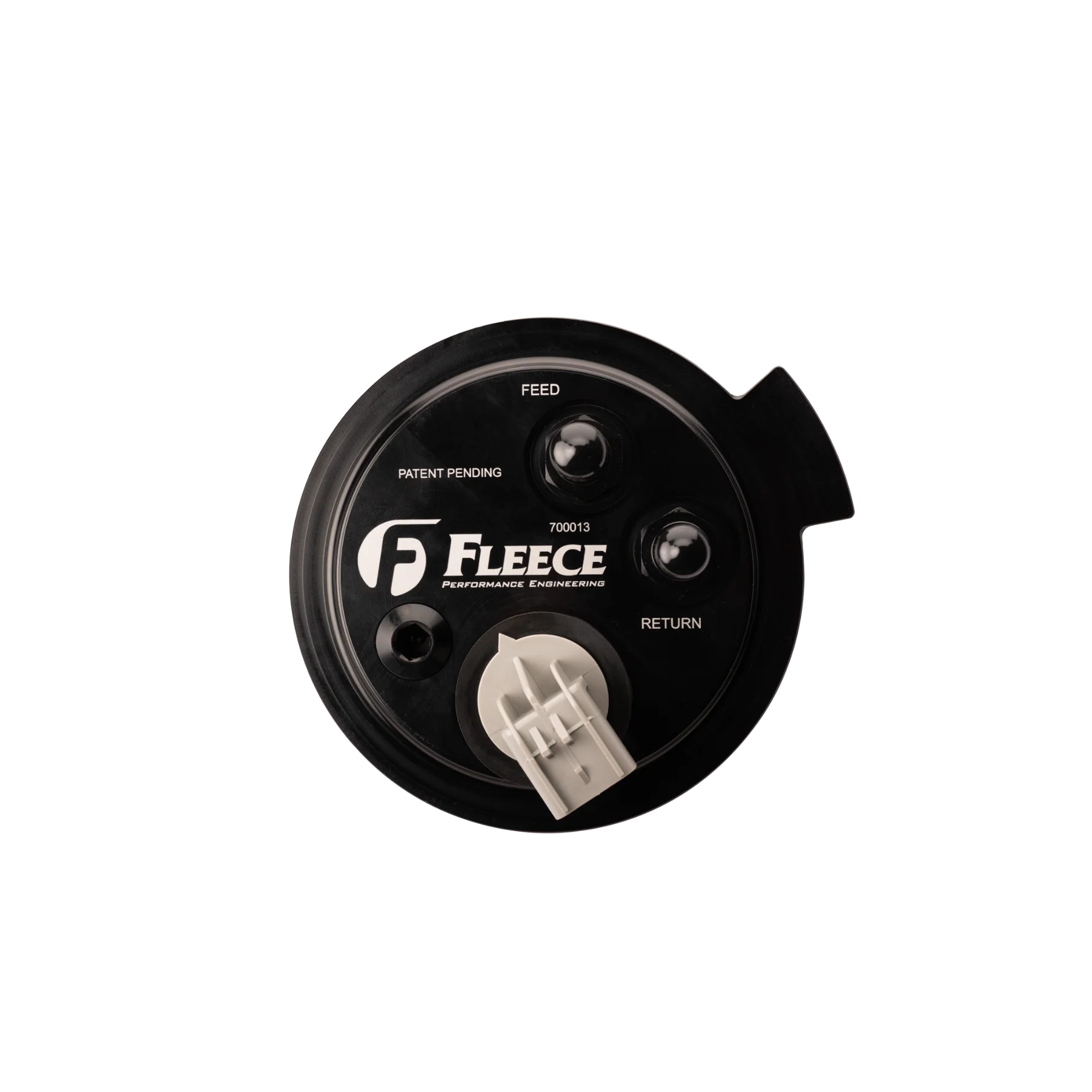

• Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines? The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4"-16 thread). This product has also been tested and verified with 2011-2016 trucks equipped with and S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit

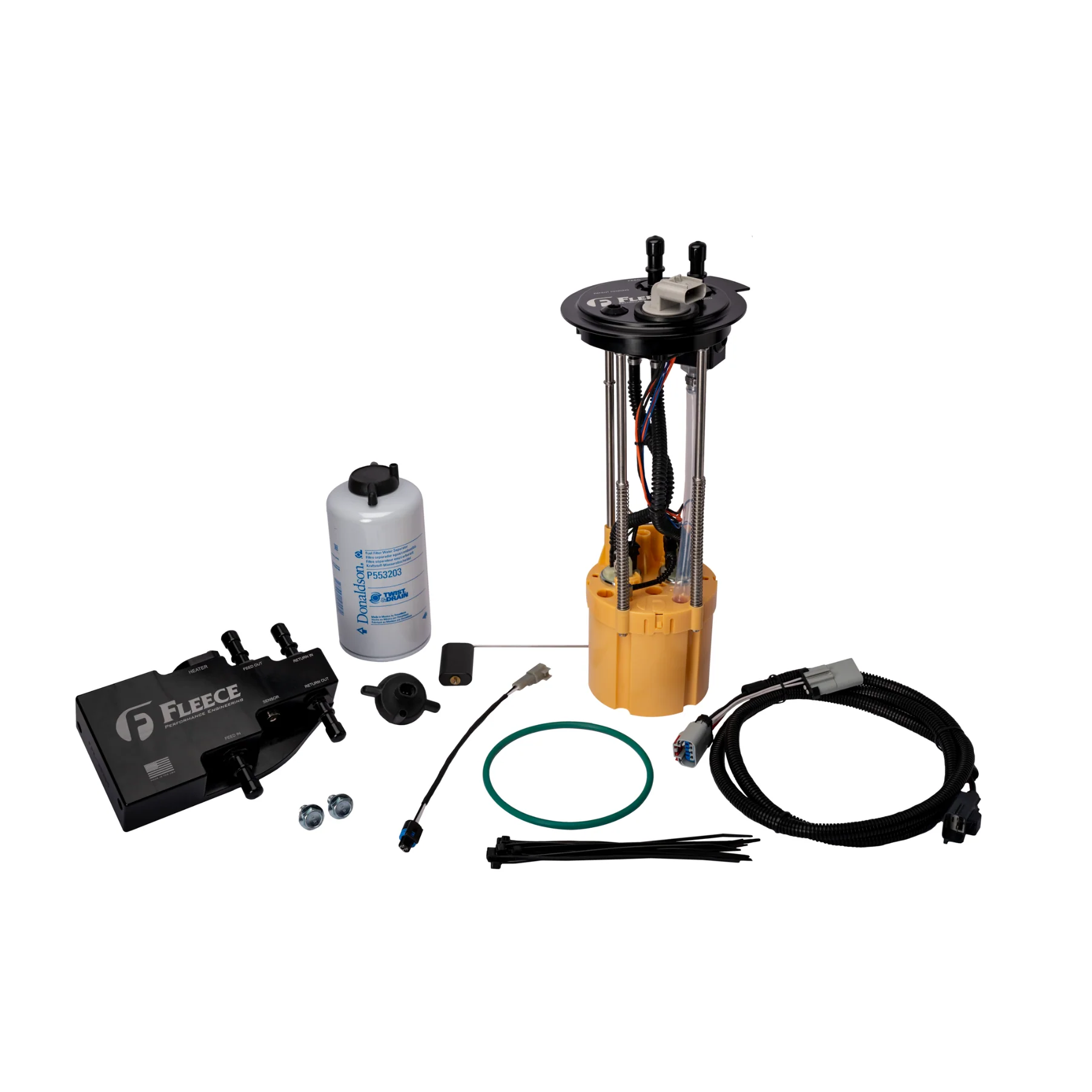

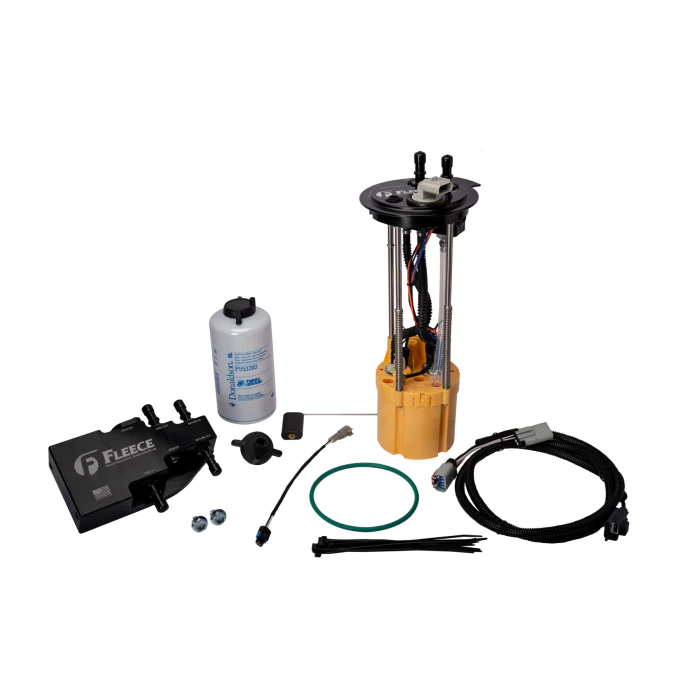

Includes

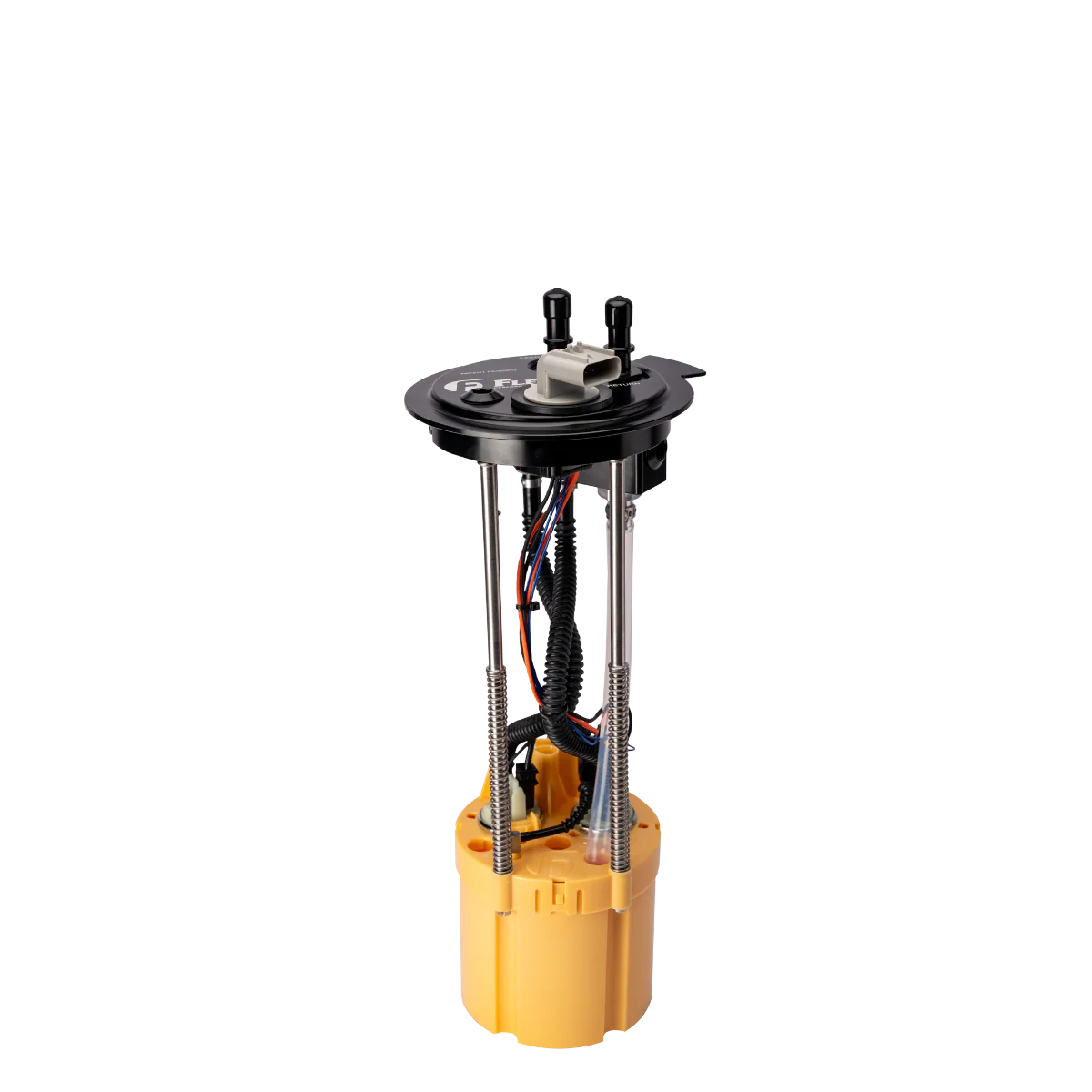

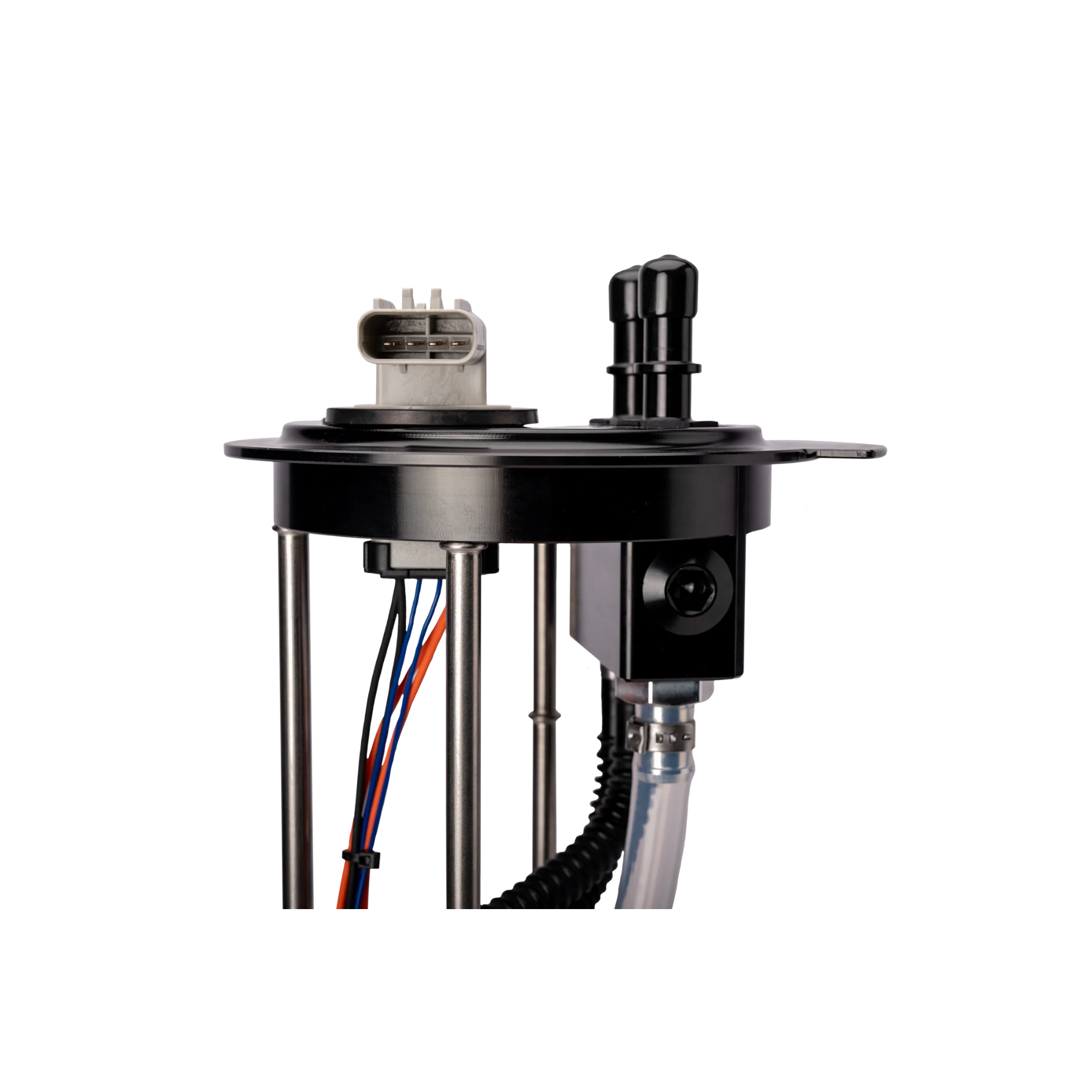

• PowerFlo Lift Pump with integral fuel level sender

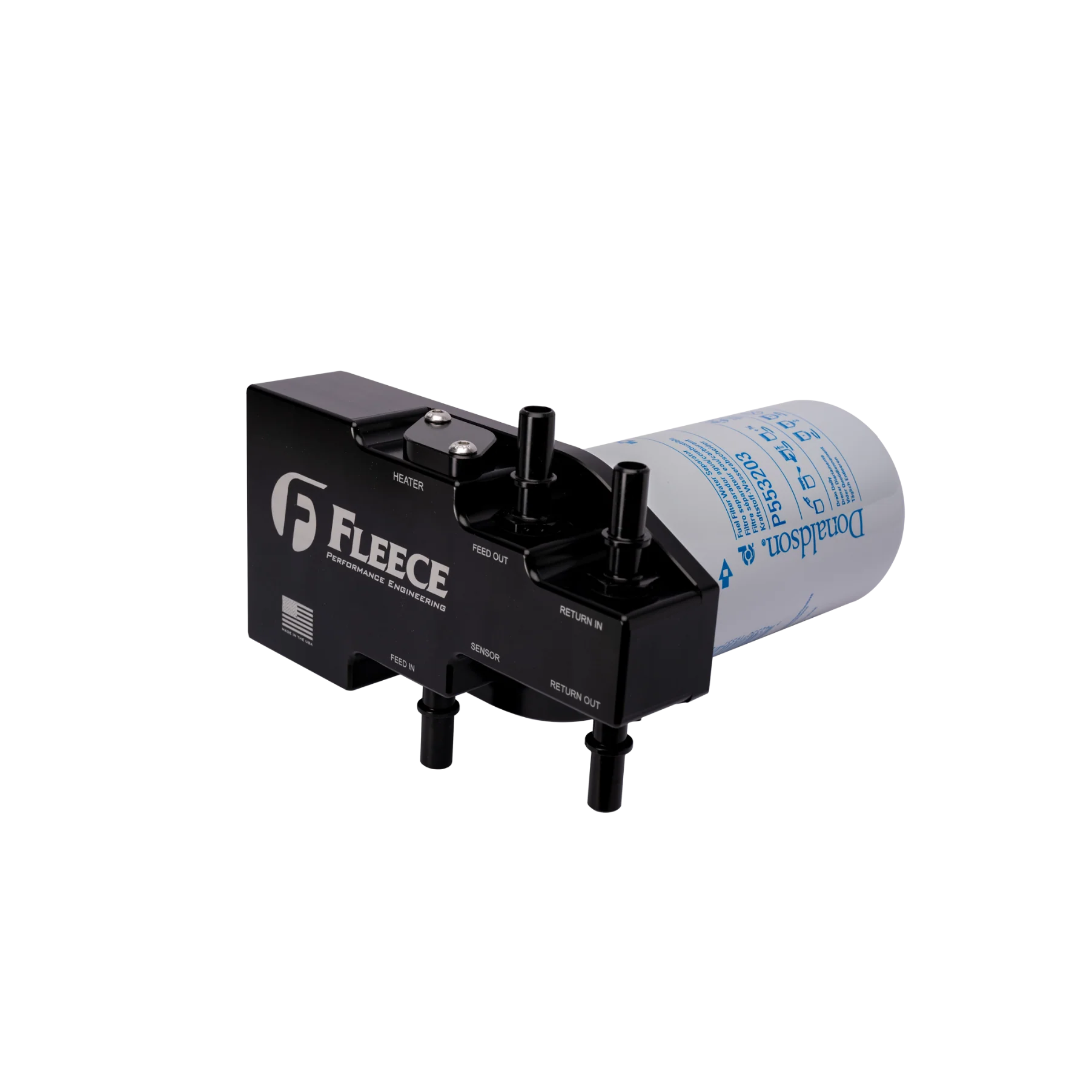

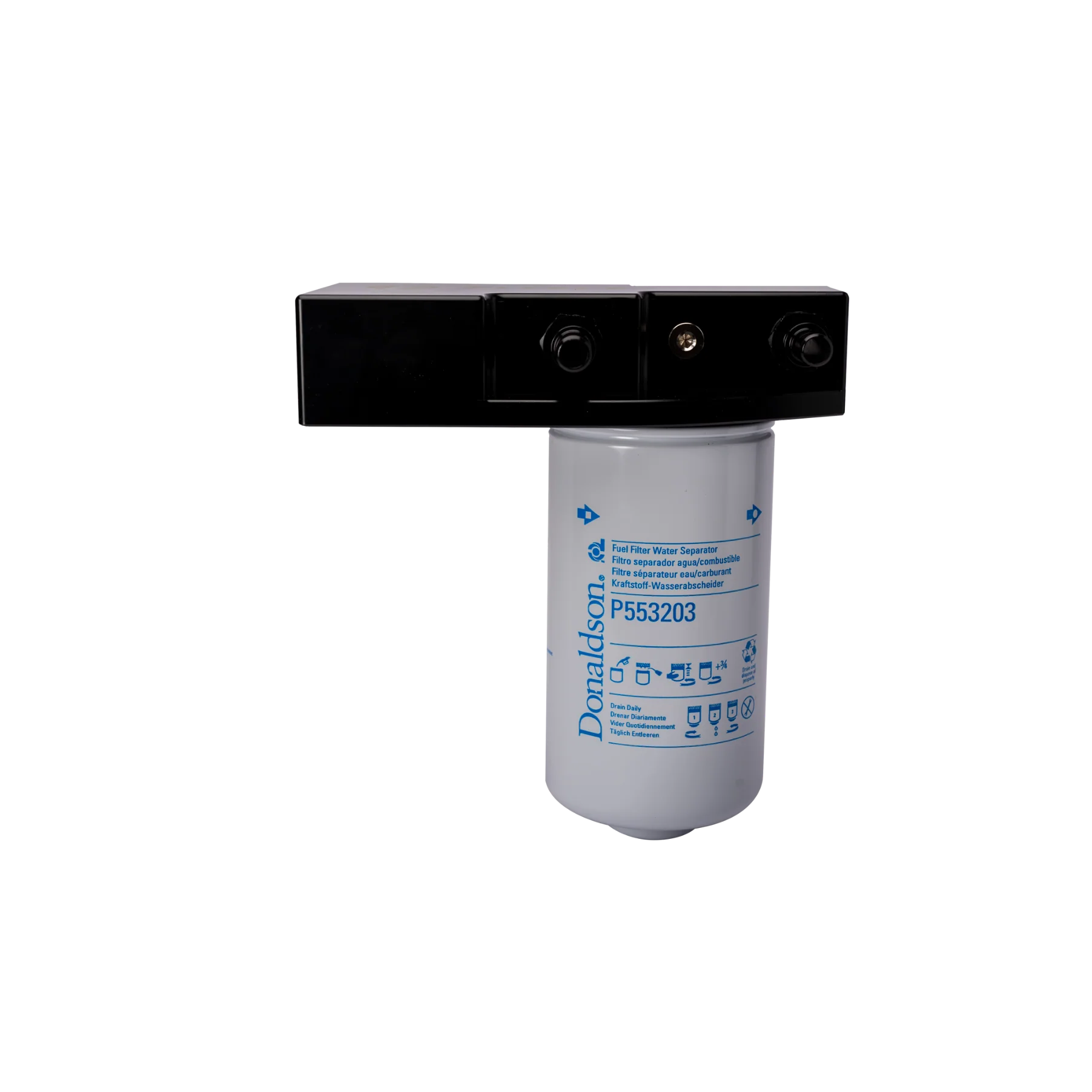

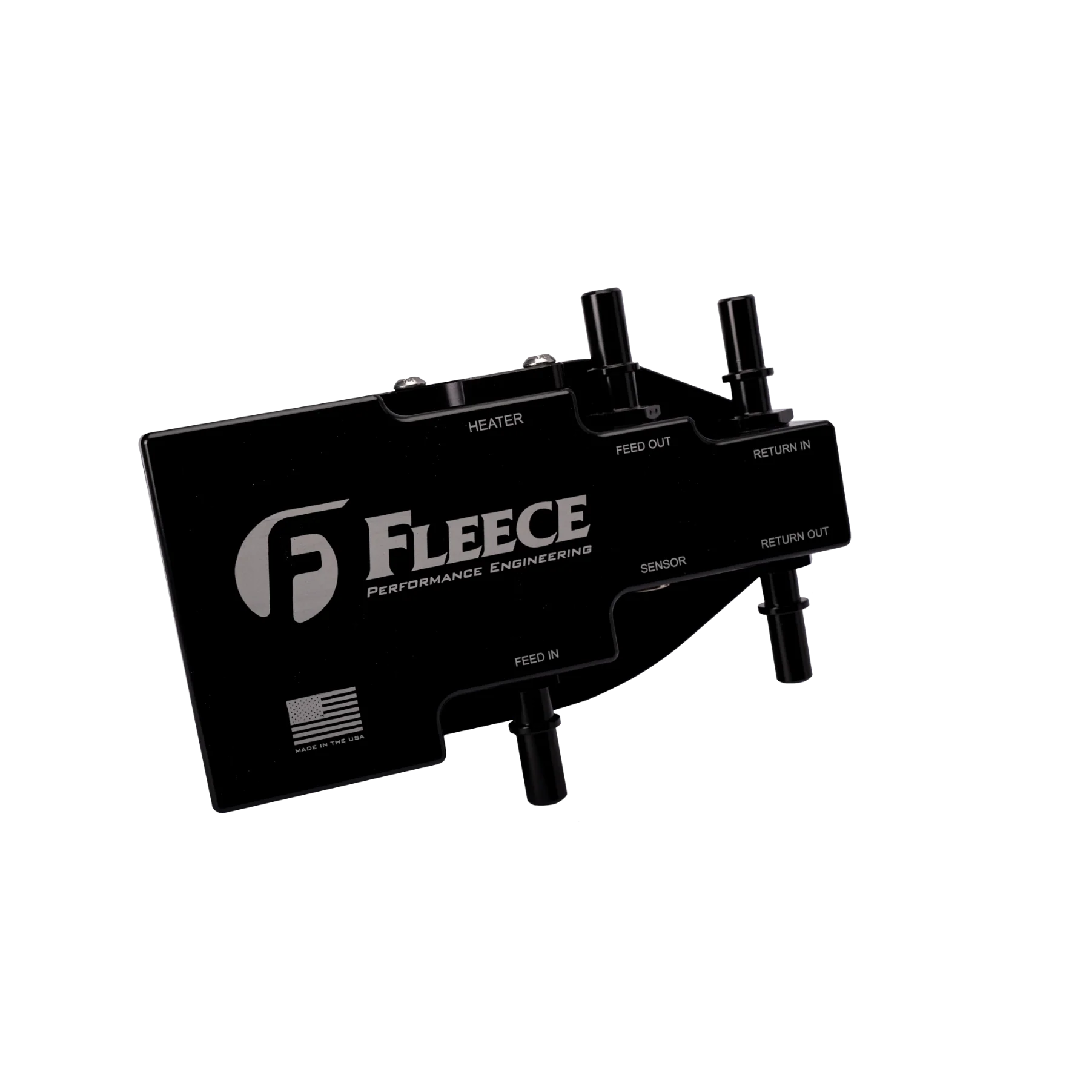

• Filter base with Donaldson (P/N P553203) and provision for optional fuel heater (4-micron rating at 99% efficiency)
• Water-in-fuel sensor
• Chassis wiring harness and WIF sensor extension harness
• Fuel-sending unit tank O-ring
• Mounting hardware

Note

• Operating pressure of: 65-70 psi at idle
• This product has been tested and verified to work with 2011-2016 trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit.
• This product has been confirmed to fit Titan and S&B aftermarket fuel tanks.
• Combine this kit with their replacement under-hood filter base (FPE-FMC-UHFA-1123) and optional fuel heater (FPE-FH-FMC) for the ultimate fuel delivery setup.

Installation

• Click here to view Instructions
