2011-2016 Powerstroke Turbocharger Install Kit (AP0166)

Description

Fits

Year	Make	Model	Engine
2011-2014	Ford	F-250/F-350 (Dyno Cert)	6.7L Powerstroke
2011-2016	Ford	Ford Cab Chassis F-350/F-450/F-550 & F-650 (Chassis Cert)	6.7L Powerstroke

Engineered to OE or equivalent standards, this turbocharger install kit guarantees a secure, leak-free repair and contains all necessary components needed for installation.

Part Number: AP0166

Features

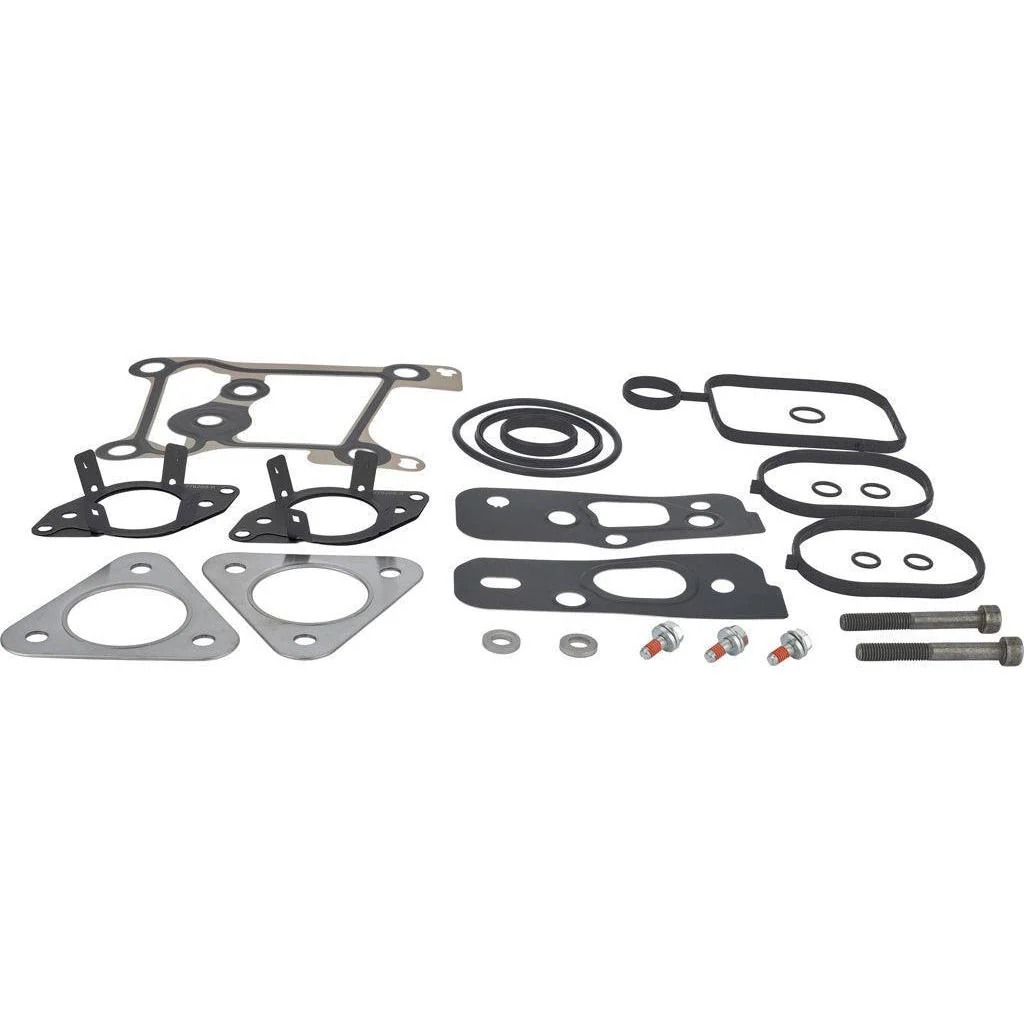

Includes:

• (1)  Pedestal to Block mounting gasket OE#  BC3Z-6587-A
• (1)  Outlet Ducting Seal OE#  BC3Z-8590-D
• (1)  Fluid Seal Ring OE#  BC3Z-8527-N
• (2)  Fluid Seal Ring OE#  BC3Z-8527-D
• (2)  Fluid Seal Ring OE#  BC3Z-8527-E
• (2)  Exhaust Manifold to Up-pipe Gasket OE# BC3Z-6N640-A
• (1)  Intake Manifold Duct Seal OE#  BC3Z-8590-L or TRS1084
• (1)  Intake Manifold Gasket OE#  BC3Z-9439-B
• (1)  Turbo to pedestal mounting kit OE#  BC3Z-6L612-A
• (2)  EGR Bypass Valve Gasket OE#  BC3Z-9E464-F
• (1)  Intake Manifold Gasket OE#  BC3Z-9439-A

Notes

• 2015 and 2016 Cab Chassis need to verify turbocharger part number, as these years included running design changes that went from a ball bearing turbocharger to a journal bearing turbocharger that requires different install components.  This kit only works for the ball bearing turbocharger.
• Kit does NOT include Exhaust Clamps
