2011-2016 Powerstroke Wheel Bearing Assembly (AX515130)
Description
Fits
| Year | Make | Model |
| 2011-2016 | Ford | F-250/F-350 Super Duty w/ 6.7L Powerstroke (4WD) |
Note: Fits 4WD Single Rear Wheel (SRW) Models ONLY!
The Axiom Supply Wheel Bearing and Hub Assembly is built for professionals who demand absolute reliability from their heavy-duty trucks. Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load, delivering tighter steering response and improved braking stability. Whether you are battling the stress of heavy towing, oversized tires, or a lifted suspension setup, Axiom is engineered to stay quiet and controlled under pressure. Axiom units utilize precision tapered roller bearings packed with high-performance grease. Every assembly is outfitted with Grade 10.9 zinc-plated studs and a durable ABS sensor designed to survive heat, mud, and moisture. This is a complete, bolt-in solution for 4WD SRW platforms, arriving with all the hardware needed for a professional installation.
Part Number: AX515130
Features
- Precision tapered roller bearings for smooth, maintenance-free operation
- Proprietary hub design minimizes deflection for better steering and braking
- Premium Grade 10.9 cold-formed, zinc-plated wheel studs
- Durable ABS sensor for reliable signal transmission in harsh conditions
- 8 x M14-1.50 fine thread lug configuration
Specification
- Hub Nut Torque: Multi-step sequence required
- Spindle Bolt Torque: 133 lb-ft
- Caliper Bolt Torque: 166 lb-ft

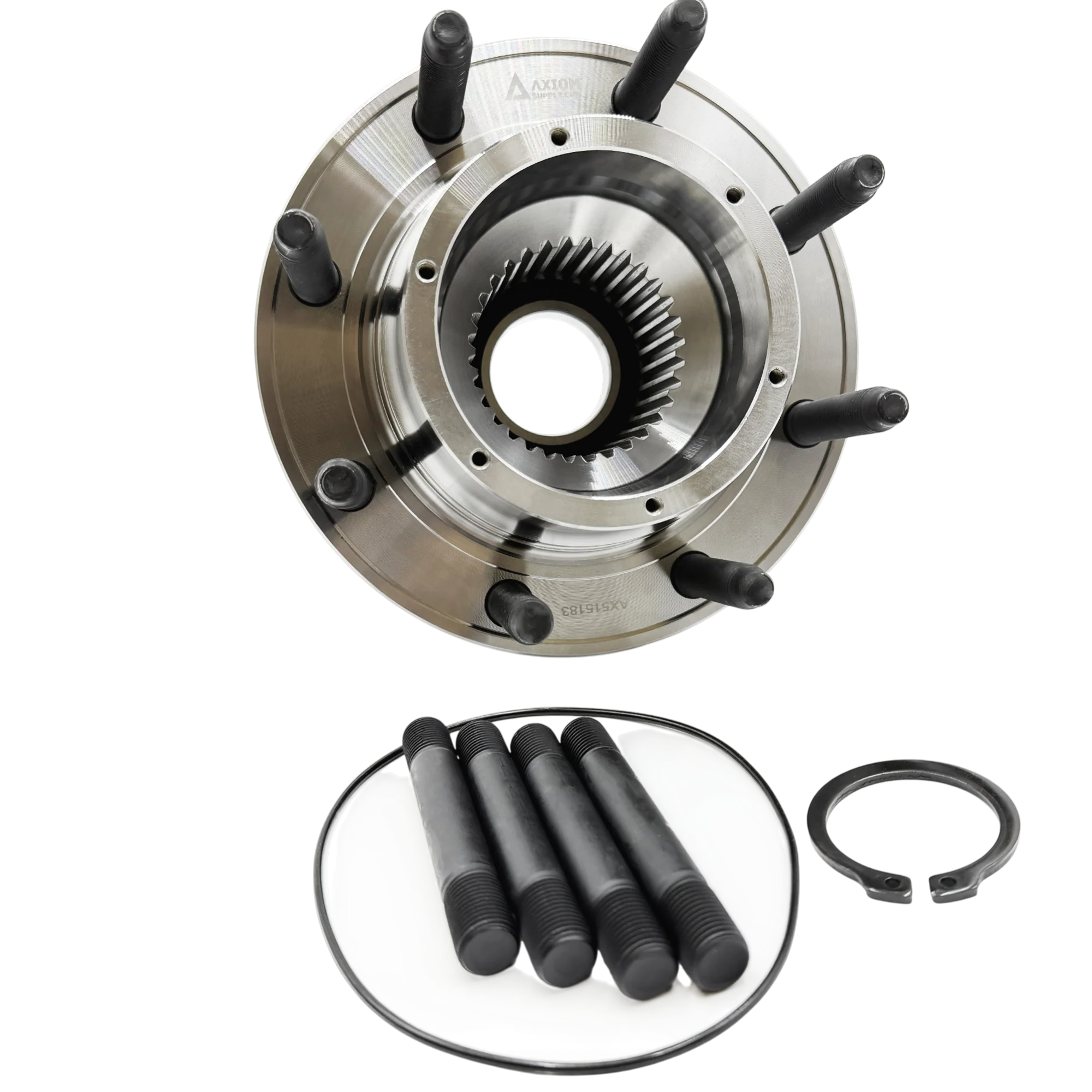

Includes
- 1 x Wheel Bearing & Hub Assembly with integrated ABS wire
- 4 x Mounting Bolts
- 1 x O-Ring
- 1 x Retainer Ring
Notes
- Fits 4WD models only.
- Fits Single Rear Wheel (SRW) models only; NOT for Dual Rear Wheel (DRW).
Installation
- Secure the hub nut by tightening it to 21 ft-lbs (28 Nm) while rotating the wheel clockwise. Then, loosen it by 180 degrees. Next, with the brake disc turning, tighten the nut to 17 ft-lbs (2 Nm).
Warranty
