2011-2019 Duramax 6.5" Lift Coilover Upgrade Kit (BDS735FDSC)

Product image 1

2011-2019 Duramax 6.5" Lift Coilover Upgrade Kit (BDS735FDSC)

Description

Important: This kit is strictly to upgrade to Coilovers specific to the lift height you currently have in your truck.

Fits

Year Make Model Type Lift Location
2011-2019 Chevy / GMC 1 Ton Truck 2WD Diesel 6.5" Front
2011-2019 Chevy / GMC 1 Ton Truck 4WD Diesel 6.5" Front
2011-2019 Chevy / GMC 3/4 Ton Truck 2WD Diesel 6.5" Front
2011-2019 Chevy / GMC 3/4 Ton Truck 4WD Diesel 6.5" Front

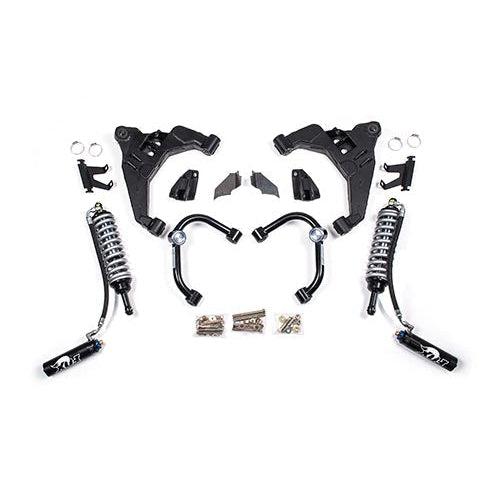

Coilovers aren't just to lower your vehicle! If you're serious about performance then BDS offers this conversion kit for your GMC/ Chevrolet. With high-quality parts, this kit will improve handling at high speeds & overall ride quality. FOX 2.5 Coilovers w/ Remote DSC Adjustment, BDS LSCs to Improve Travel, Fully Boxed & Gusseted HSCs offer Next Level Performance On & Off-road. Compatible with existing 4.5" & 6.5" BDS Lifts Easy Installation.

Part Number: BDS735FDSC

Features
  • 6.5" Lift (Preset)
  • Only Minor Welding for Guessets
  • Fully TIG welded Components
  • Ball joint cups are repositioned for optimal performance allowing a 30% improvement in wheel travel
  •  Moog brand ball joints & factory style rubber bushings for smooth, quiet operation and superior durability
  • FOX's DSC (dual speed compression)
  • 6061-T6 Billet Aluminum mounts
  • 12 adjustment points for high-speed compression
  • 10 adjustment points for low-speed compression
  • Allows you to adjust on trails
  • Replaces the factory torsion bars, the upper and lower control arms are upgraded to improve strength, travel, & accommodate the new coilovers.
  • Superior dampening for the harshest terrains

    Tire Fitment:

    • 6.5” Kit: 37 x 12.50 on 17” x 9” w/ 4-1/2 to 4-5/8” Backspacing
    • 37 x 12.50 on 18” x 9” w/ 4-1/2 to 4-5/8” Backspacing
    • 37 x 12.50 on 20” x 9” w/ 5 to 5.5” Backspacing
    • Larger than 20”, use 20” wheel specs
    Notes
    • For use with 6.5" high clearance lift kits only.
    • Not approved for use with other brand lift kits or as a stand-alone upgrade.
    • This System cannot be set lower than 6.5" as it will cause alignment issues.
    • Stock 20” x 8.5” wheels are not recommended, however, they can be reinstalled if necessary.
    • Stock 17” and 18” wheels will not fit back on the vehicle once this suspension system is installed.
    Installation
    • Click Here For Installation Instructions
    • Difficulty Level (easy 1 - 5 complicated): 4
    Warranty
    • Supplemental Drivetrain Limited Protection - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
    • Free, no cost protection for BDS customers
    • Could save thousands of dollars on possible repairs
    • An easy online registration process
    • Available for most late-model vehicles
    $1,383.84

    Original: $3,953.82

    -65%
    2011-2019 Duramax 6.5" Lift Coilover Upgrade Kit (BDS735FDSC)—

    $3,953.82

    $1,383.84
