2011-2019 Duramax Steering Stabilizer Relocation Kit (510-90935)

Description

Fits

Year	Make	Model	Engine
2011-2019	Chevrolet/GMC	Silverado/Sierra 2500/3500 2WD/4WD	LML, L5P 6.6L Duramax

While the Cognito pitman and idler arm support kit makes steering stabilizers unnecessary (and actually works better), some folks just want both. Here's the deal: they normally clash for space when mounted in the factory location. This relocation kit drops the frame mounting end of the stabilizer down, solving the clearance issue with the Cognito Pitman Arm Support Bracket.

Part Number: 510-90935

Features

• Relocates steering stabilizer frame mount to allow for clearance of Cognito Pitman Idler Arm Support Kit

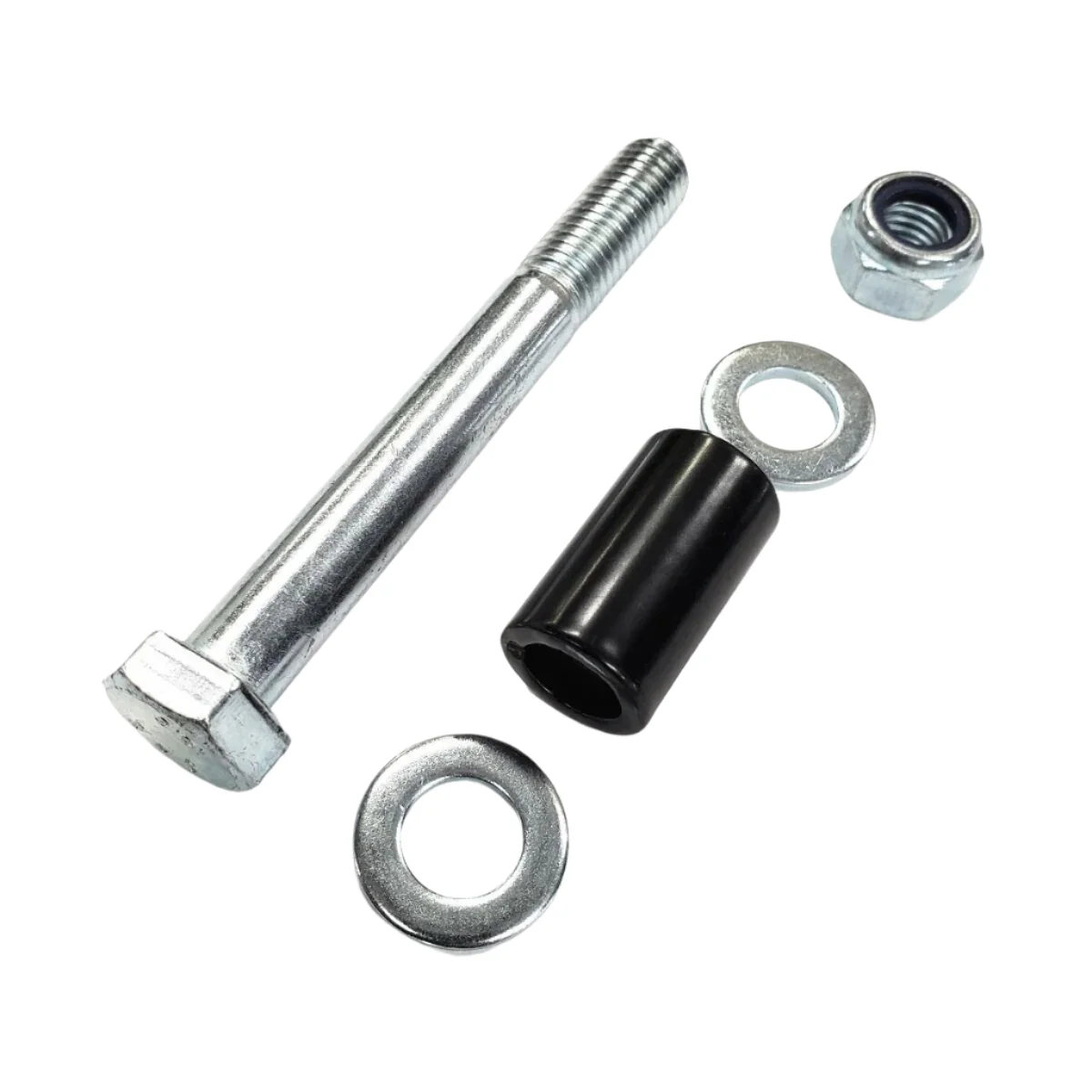

• Includes required relocation hardware

• Made in the USA

Installation

• 30-Minute DIY install time
• Click Here 8160

Additional Info

• OEM steering stabilizers were not available on 2011-2019 trucks. Adding a steering stabilizer requires 2 mounting points, one on the steering center link(right side of truck) and one on the frame (left side of truck). 2011 to present trucks all have the mounting provision on the steering center link, which is the tapered hole in the right side of the steering center link near the idler arm. Regarding the frame mounting provision, this is the clevis (2 tabs sticking out) welded to the frame crossmember, and only the 2011-2014 and some 2015 trucks have this to be able to add on a steering stabilizer.

Additional Fitment

Year	Make	Model	Sub-Model
2011-2019	GMC	Sierra 3500 HD	SLT
2011-2019	GMC	Sierra 3500 HD	SLE
2011-2019	GMC	Sierra 3500 HD	Denali
2015-2019	GMC	Sierra 3500 HD	Base
2011-2019	GMC	Sierra 2500 HD	SLT
2011-2019	GMC	Sierra 2500 HD	SLE
2011-2019	GMC	Sierra 2500 HD	Denali
2015-2019	GMC	Sierra 2500 HD	Base
2011-2019	Chevrolet	Silverado 3500 HD	WT
2011-2019	Chevrolet	Silverado 3500 HD	LTZ
2011-2019	Chevrolet	Silverado 3500 HD	LT
2015-2019	Chevrolet	Silverado 3500 HD	High Country
2011-2019	Chevrolet	Silverado 2500 HD	WT
2011-2019	Chevrolet	Silverado 2500 HD	LTZ
2011-2019	Chevrolet	Silverado 2500 HD	LT
2015-2019	Chevrolet	Silverado 2500 HD	High Country
2011-2018	Chevrolet	Silverado 3500 HD	Base
2013-2018	Chevrolet	Silverado 2500 HD	LS
2011-2017	Chevrolet	Silverado 2500 HD	Base
2011-2014	GMC	Sierra 3500 HD	WT
2011-2014	GMC	Sierra 2500 HD	WT



Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
