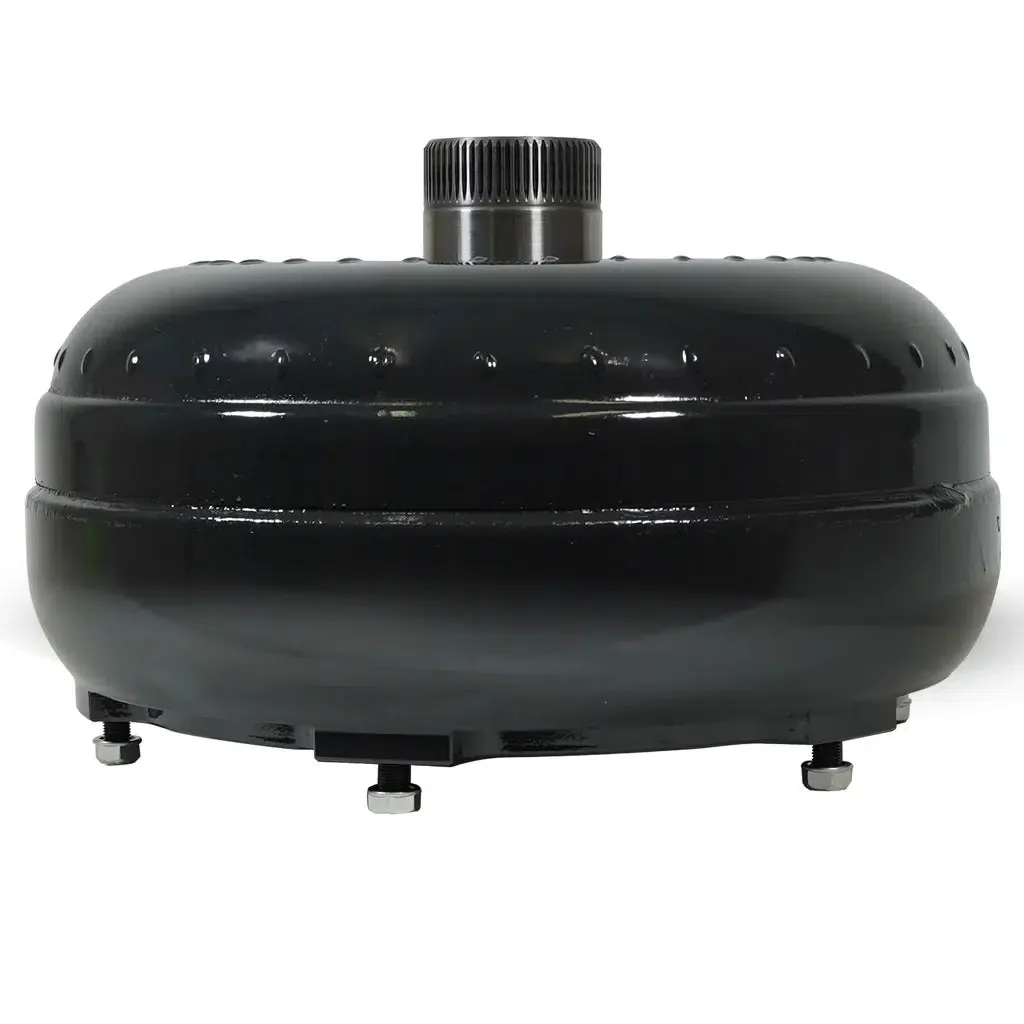

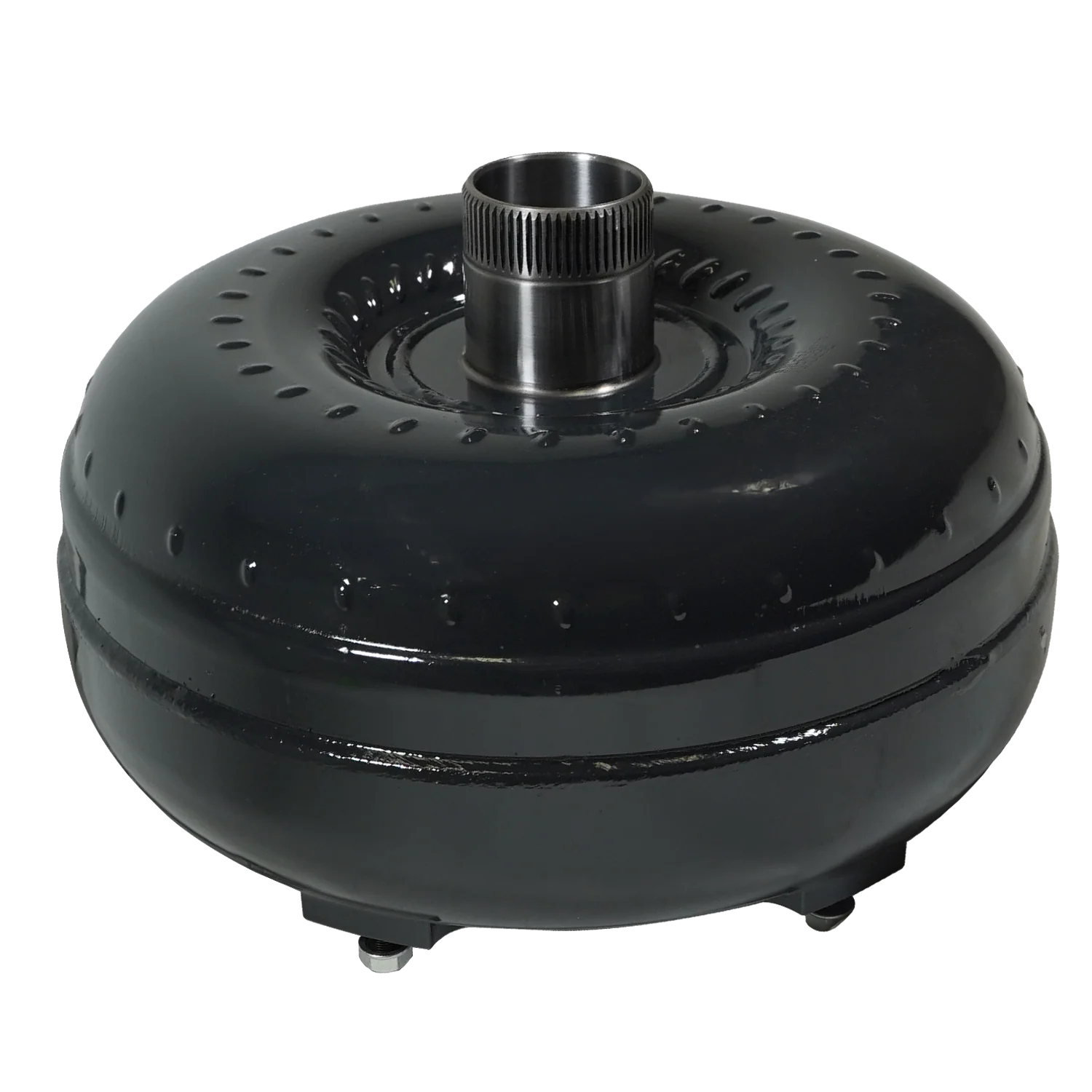

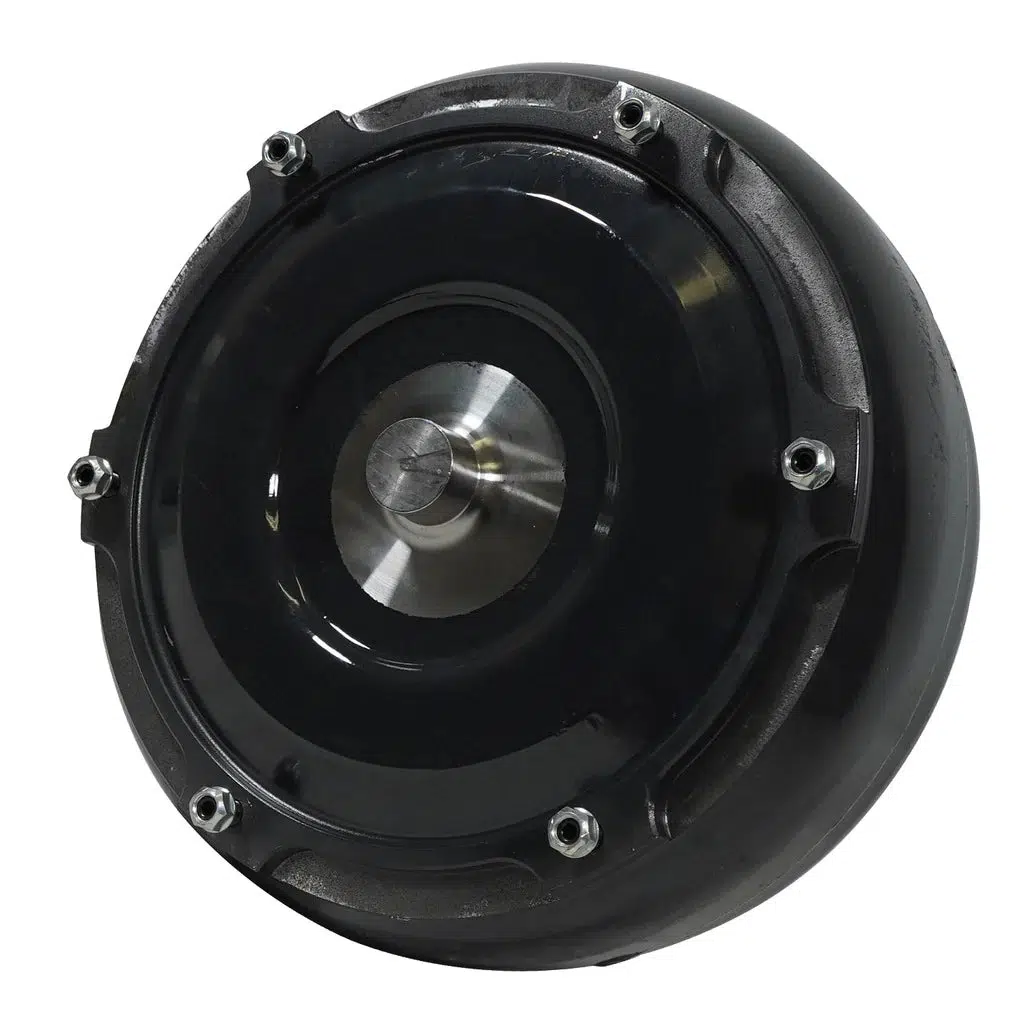

2011-2019 Powerstroke Proforce 4D Torque Converter (1030238)

Description

Fits

Year	Make	Model	Engine
2011-2019	Ford	F-250/F-350/F-450/F-550 Superduty	6.7L Powerstroke

This torque converter is equipped with 4 clutch surfaces designed to handle heavy towing loads and is intended for up to 900+ horsepower. CNC machined forged cover is designed to prevent warping and improper balance while facilitating the increased clutch count without sacrificing strength. In addition to a new cover, BD has designed a custom piston, bearing hub, release springs and backing plate to retain the OEM captured clutch design which delivers the same great drivability 6R140 owners are accustomed to.

Part Number: 1030238

Features

• 23% increased piston area for additional clutch clamping force
• Billet bearing hub, piston and clutch retainer
• Captured clutch design with clutch return springs
• Increased clutch and steel plate count for improved heat dissipation
• Comes with hardware
• Factory furnace-brazed pump and turbine fins
• Four friction surfaces instead of the factory two surfaces
• Stamp forged 1-piece cover

Installation

• 7-Hours

Notes

• Will not fit early 2011 trucks with 8-bolt flex plate – will have to update to 6 bolt flex plate.

Warranty

Parts Only - No race abuse covered

• 36-Months
