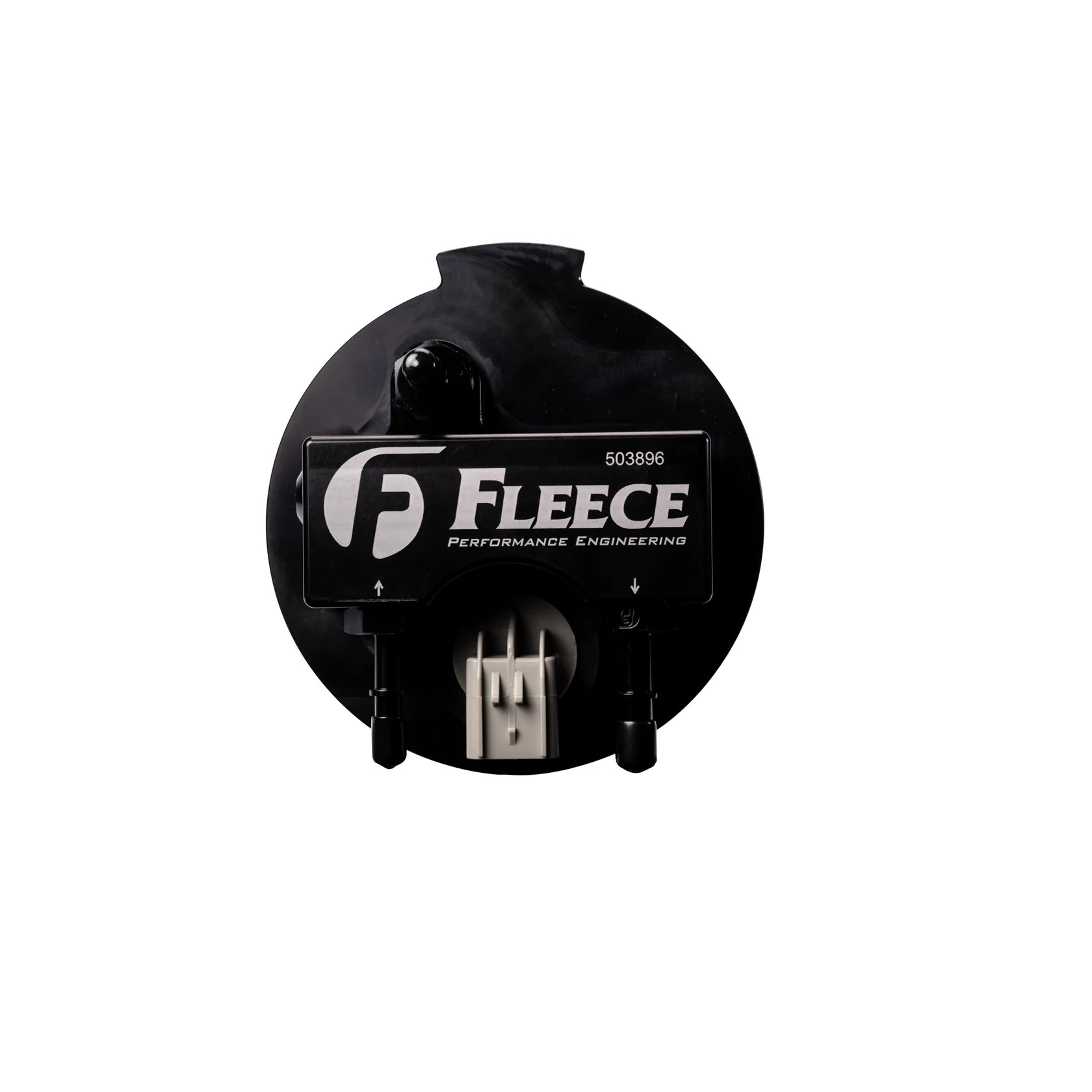

2011-2024 Cummins C&C SureFlo Lift Pump Midship Tank (22 Gal) (FPE-SF-CUMM-1124-CCMS)

Description

Fits

Year	Make	Model	Engine
2011-2024	RAM	4500/5500 C&C	24V 6.7L Cummins

Looking for a way to replace a faulty fuel level sender on your truck with an aftermarket frame-mounted lift pump? Check out SureFlo performance sending units! They provide a clean installation without the hassle of a sump or draw straw.

PROBLEM: For aftermarket pumps outside the fuel tank, you will need to install a draw straw or drill your tank for a sump. These have drawbacks including a ¼ tank issue that can cause pump cavitation from air drawn into the fuel system.

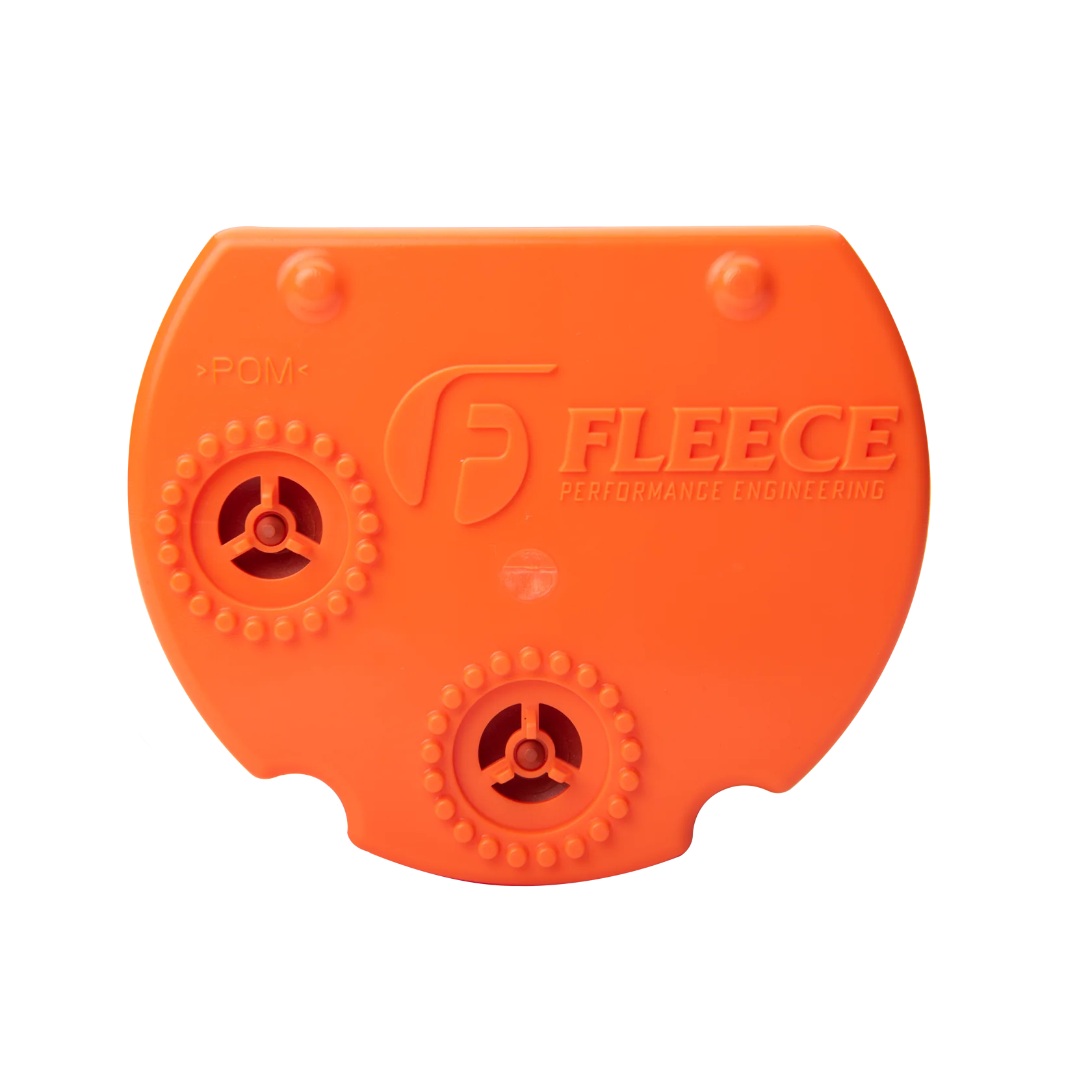

SOLUTION: This SureFlo sending unit is designed to fit in your stock location and connects to aftermarket lift pumps. Factory-style quick disconnects make for an easy installation without needing to cut or drill the tank. Drawing/returning fuel from/to the bucket assembly at the base of the unit guarantees no air in the fuel system and puts an end to the ¼ tank struggles. Plus, one-way check valves make for smooth fuel flow at lower levels.

Part Number: FPE-SF-CUMM-1124-CCMS

Features

• OEM
• No Modifications Required

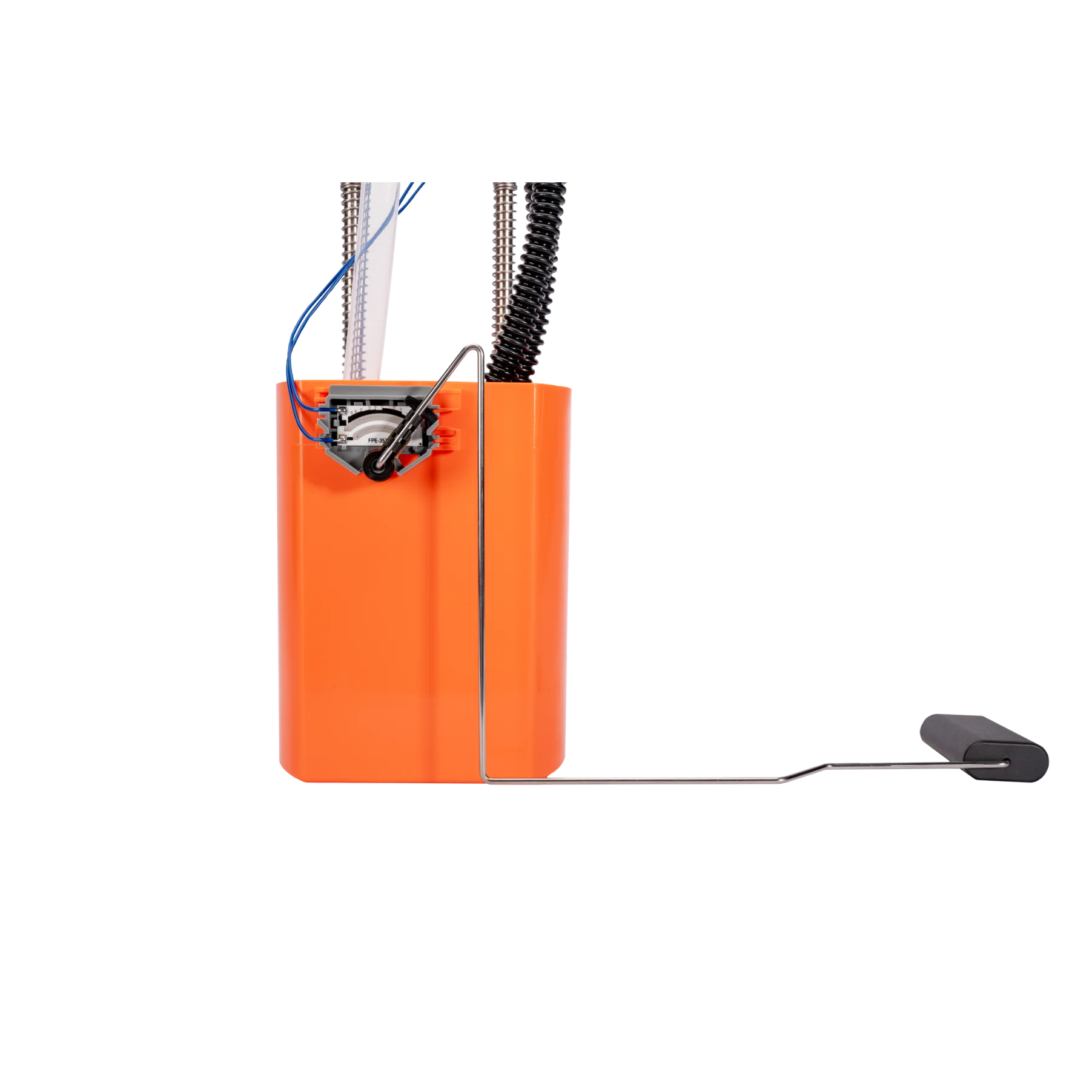

• New Fuel Level Electronics & Fuel Float

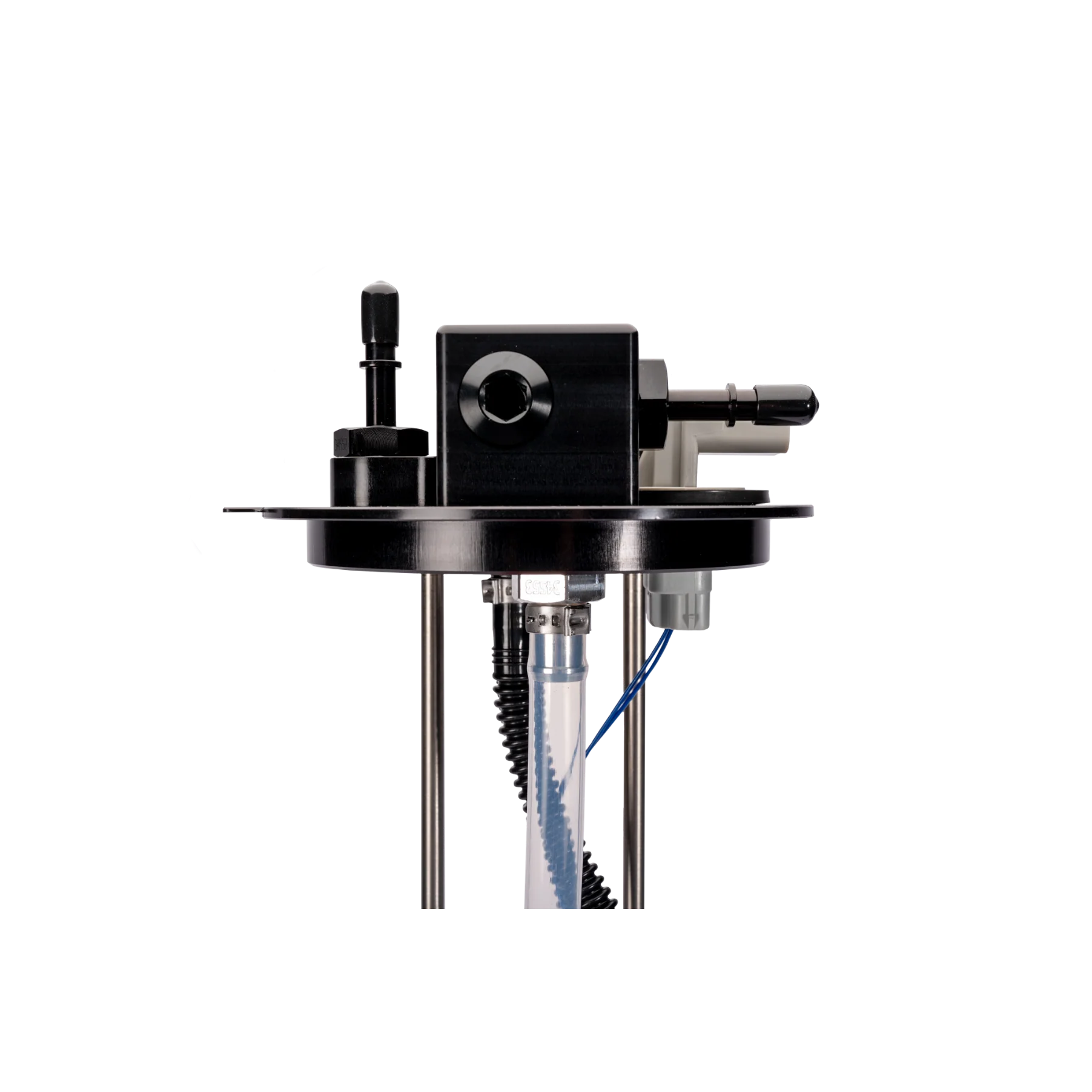

• Heavy Duty Billet Aluminum Cap
• Universal -8 AN Ports for Professionally Plumbing a Custom Fuel Setup
• New O-ring or Flange Seal


Notes

• This product is specifically intended for use only in Ram cab and chassis 22 gallon mid-ship tank applications that originally utlized OEM lift pump part number 68064422AB
• SureFlo performance sending units are designed for use in conjunction with an aftermarket externally mounted fuel pump. The SureFlo DOES NOT contain a fuel pump.

Warranty

Parts Only

• 1-Year Limited Warranty
