2011-2026 Powerstroke Engine Mounted Filter Assembly (FPE-FMC-UHFA-1123)

Description

Fits

Year	Make	Model
2011-2026	Ford	F-Series (F250/350/450/550) w/ 6.7L Powerstroke

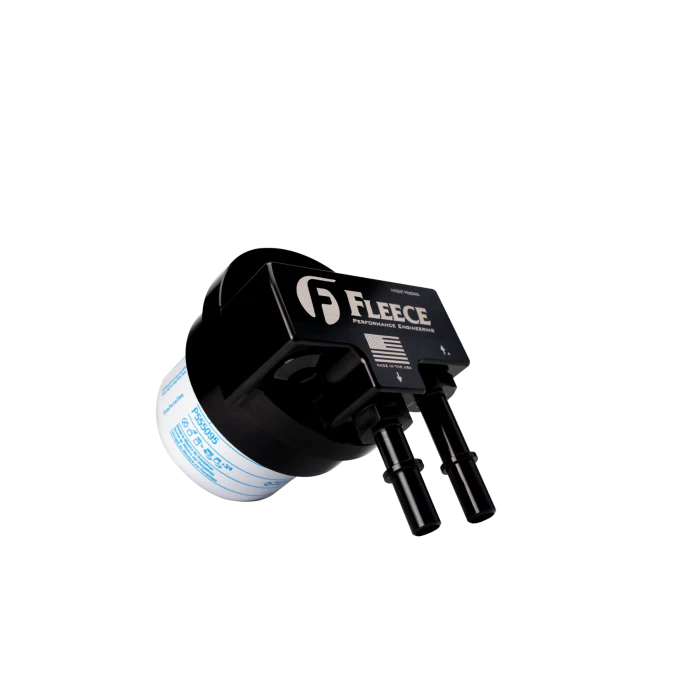

The all-new Fleece Performance Engine Mounted filter assembly will replace the failure-prone plastic OE filters with a billet aluminum cap assembly and billet aluminum quick disconnect fittings which will eliminate the risk of a cracked filter.

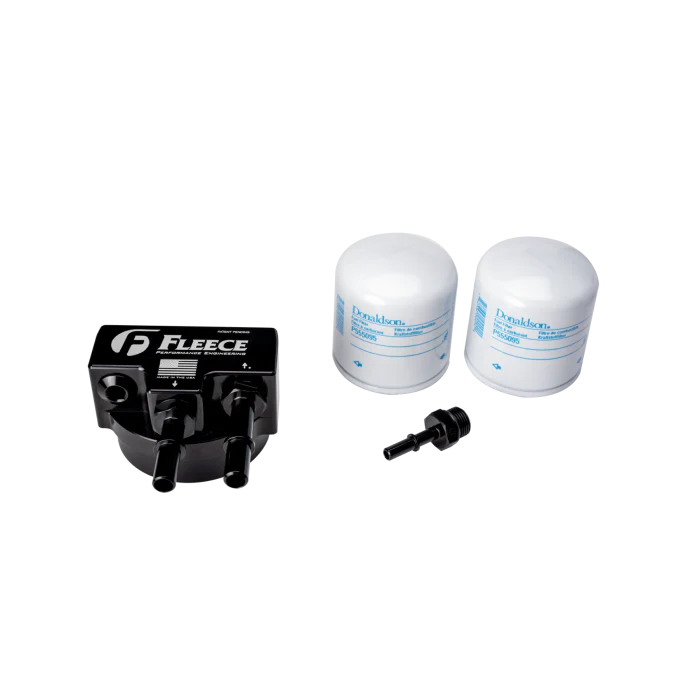

This drop-in replacement filter assembly locks directly into the stock filter location and utilizes a replaceable spin-on Donaldson filter that is easily serviceable. The kit also includes an extra Donaldson fuel filter, further extending the time before you need to purchase an additional filter.

Features

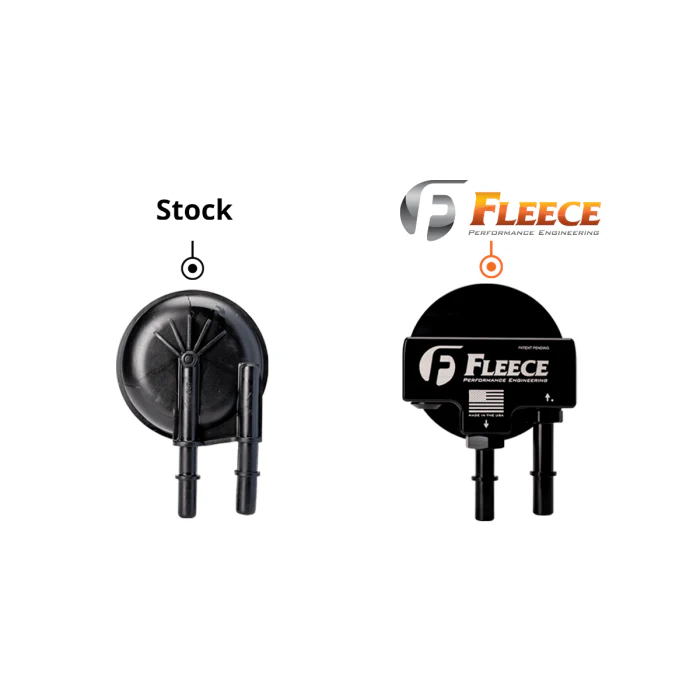

• Drop-in replacement for the factory under hood filter
• Heavy-duty anodized billet aluminum cap
• Heavy-duty anodized billet aluminum quick-disconnect fittings
• Steel adapter fitting for the filter
• Extra Donaldson P555095 filter included with the kit (9 micron rating at 99% efficiency)

Note

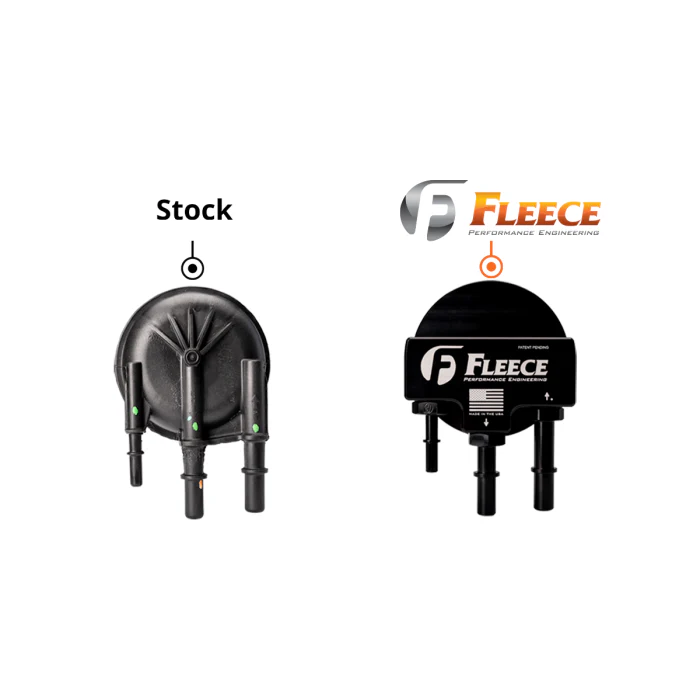

• Fits 2011-2026 F250/350/450/550 with 6.7L Powerstroke. The 2011-2016 model trucks use only one inlet and one outlet fitting. For 2017-2026 trucks, an additional quick disconnect fitting is provided for the required additional fuel return.
• This product fits 2011-2026 trucks equipped with an S&S Diesel Motorsport DCR conversion kit or the S&S Diesel Motorsport CP4 Disaster Prevention Kit.
• Replaces the under hood factory filter in Motorcraft Kits FD-4615 and FD-4625AA that contain manufacturer part numbers HC3Z9N184C and BC3Z9N184B.
• Kit includes the following Fleece Performance components: FPE-34552-A, FPE-34550-A, FPE-34781-A, FPE-FF-M16-ADPT, FPE-SP-3416.
• *Patent Pending

Instructions

• Click here to view the Instructions
