2011-2024 Powerstroke CCV Reroute Kit (SPE-S100110)

Description

Fits

Year	Make	Model
2011-2024	Ford F-Series	6.7L Powerstroke



Prevent oil droplets from re-entering the intake system, reducing oil deposits in the engine. The OEM crankcase vent system (CCV) allows the gas to escape; however, due to stricter emission standards, the gases are now recirculated into a closed system introducing them back into the intake system, and when the oil in the truck heats up, condensation occurs. The reintroduction of oil vapor can cause valve gumming, intake sludge, and a reduction of engine power and performance.

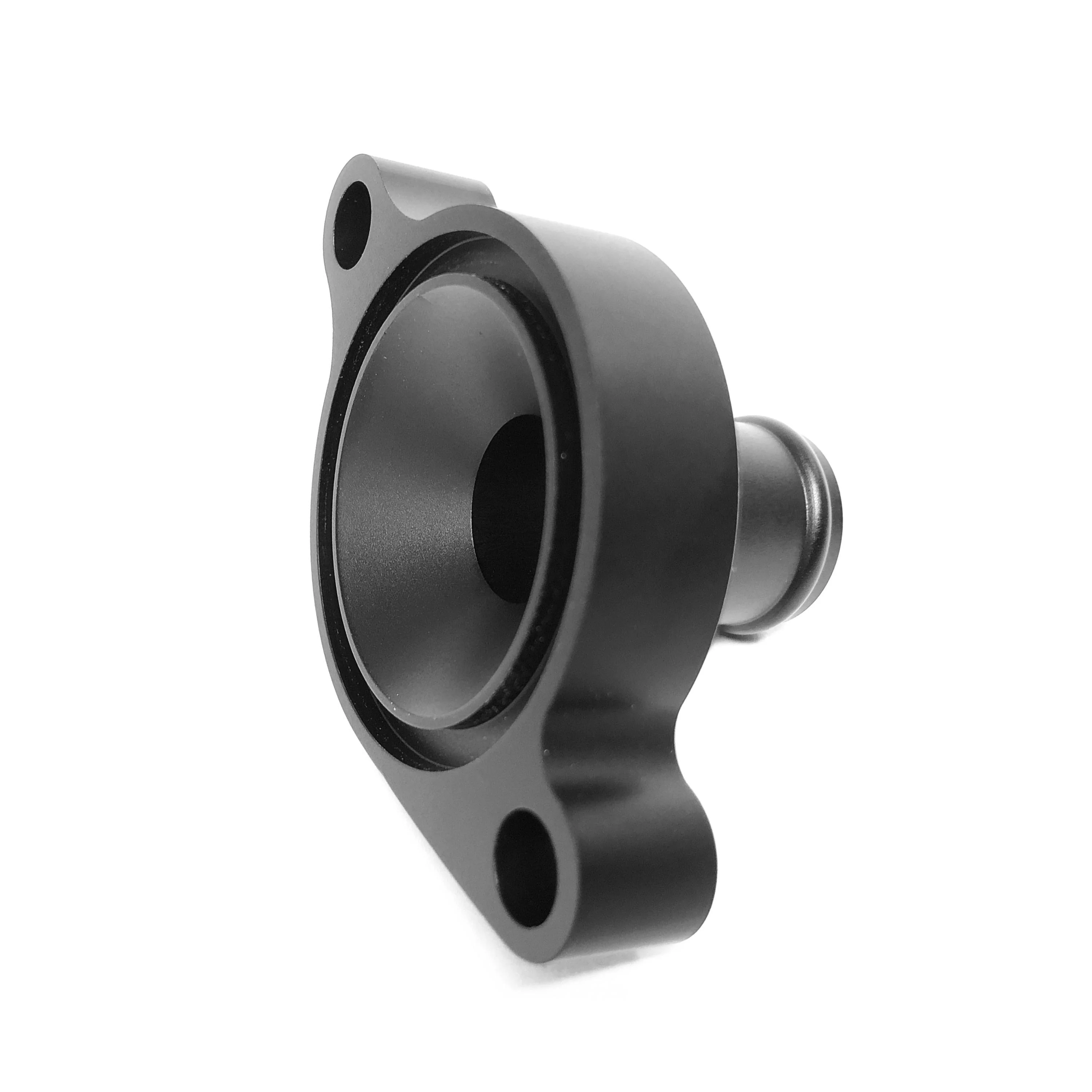

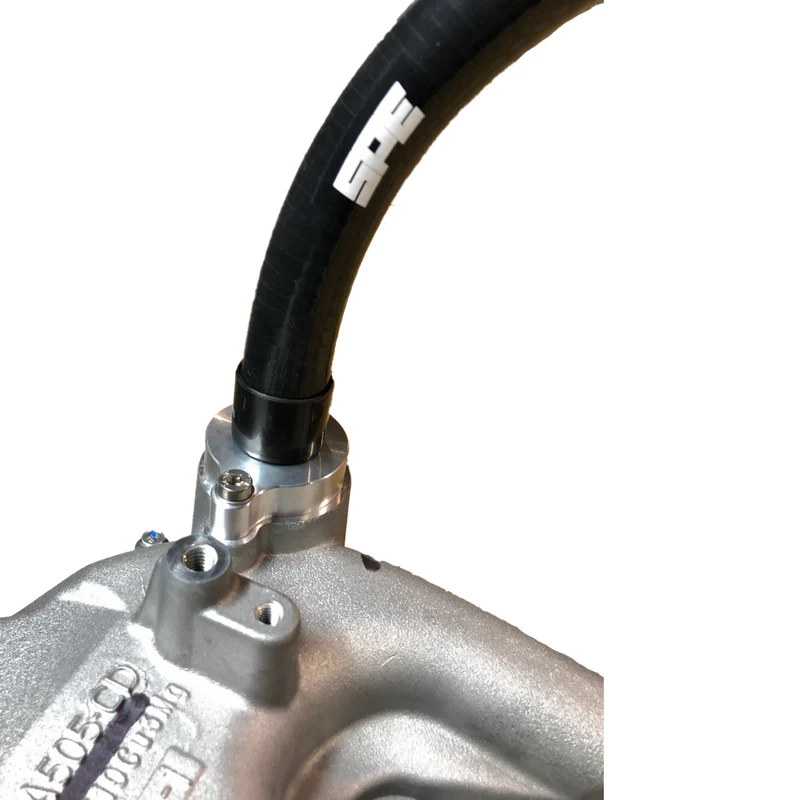

The SPE CCV Reroute Kit vents crankcase pressure by utilizing a venturi-style design that eliminates the need for a restrictive baffle and is intended to catch oil before the hose resulting in virtually no oil loss. The 3/4" 100% silicone reinforced hose has a streamlined fitment, routing over the brake booster, allowing better pressure flow and no tight angles.

Part Number: SPE-S100110

Superseded Part Number: SPE67CCV

Features

• Vents crankcase blow by decreasing oil deposits in the engine
• No boot soak, intake gumming, etc. increases the longevity of parts
• Eliminates the need for the crankcase box on the top of the engine
• Venturi-style design eliminates the need for restrictive baffles
• Virtually no oil loss
• Streamline routing with no angles provides better pressure flow & no oil dripping
• Includes 3/4" 100% silicone reinforced hose designed for oil applications
• Black Anodized components for better durability
