2011-2026 Powerstroke Upper Radiator Hose (SPE-S100164)

Description

Fits

Year	Make	Model
2011-2024	Ford F-Series	6.7L Powerstroke

Note: Will fit cab & chassis models

A direct replacement for the factory radiator hose allows you to clean up the engine bay further and eliminate connections prone to leaking. Constructed from 5-ply polyester reinforced silicone material that withstands higher temperatures and pressures, these hoses are designed to outlast and outperform brittle factory rubber hoses.

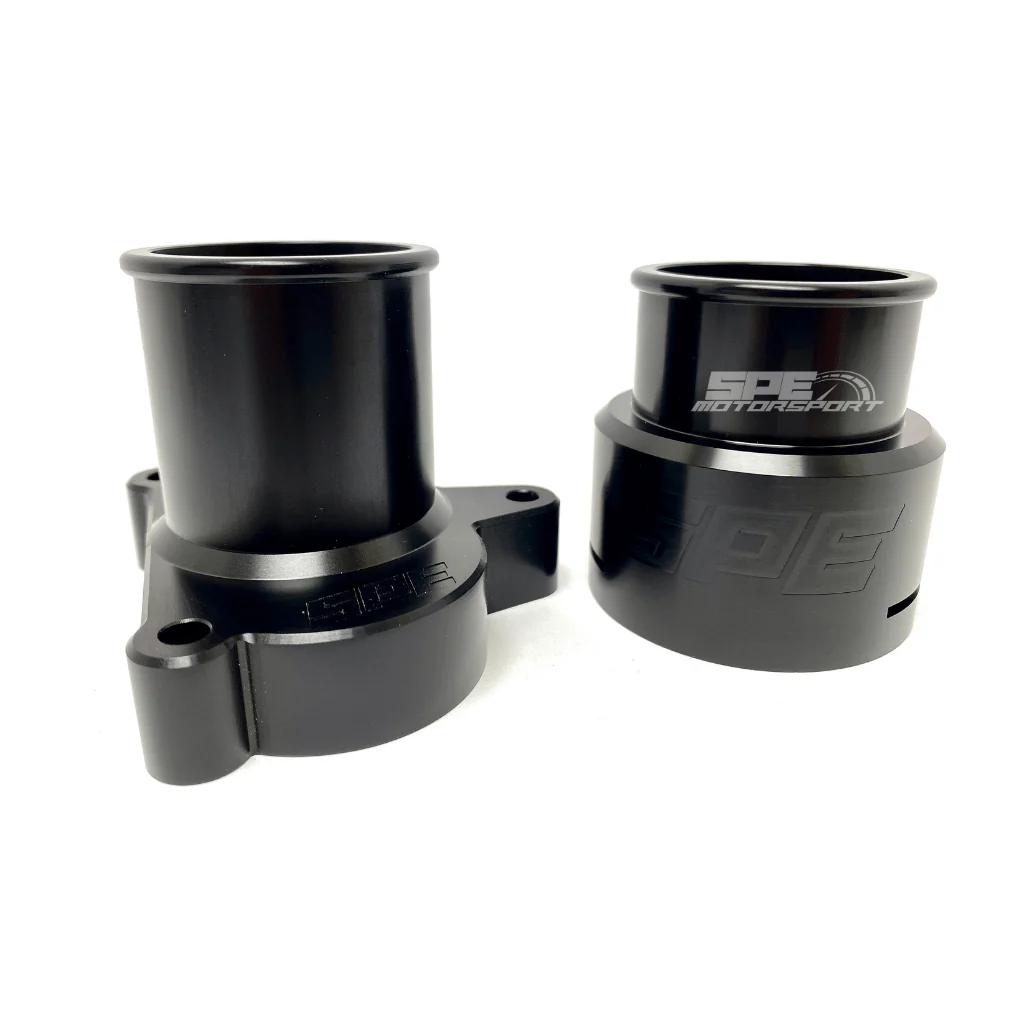

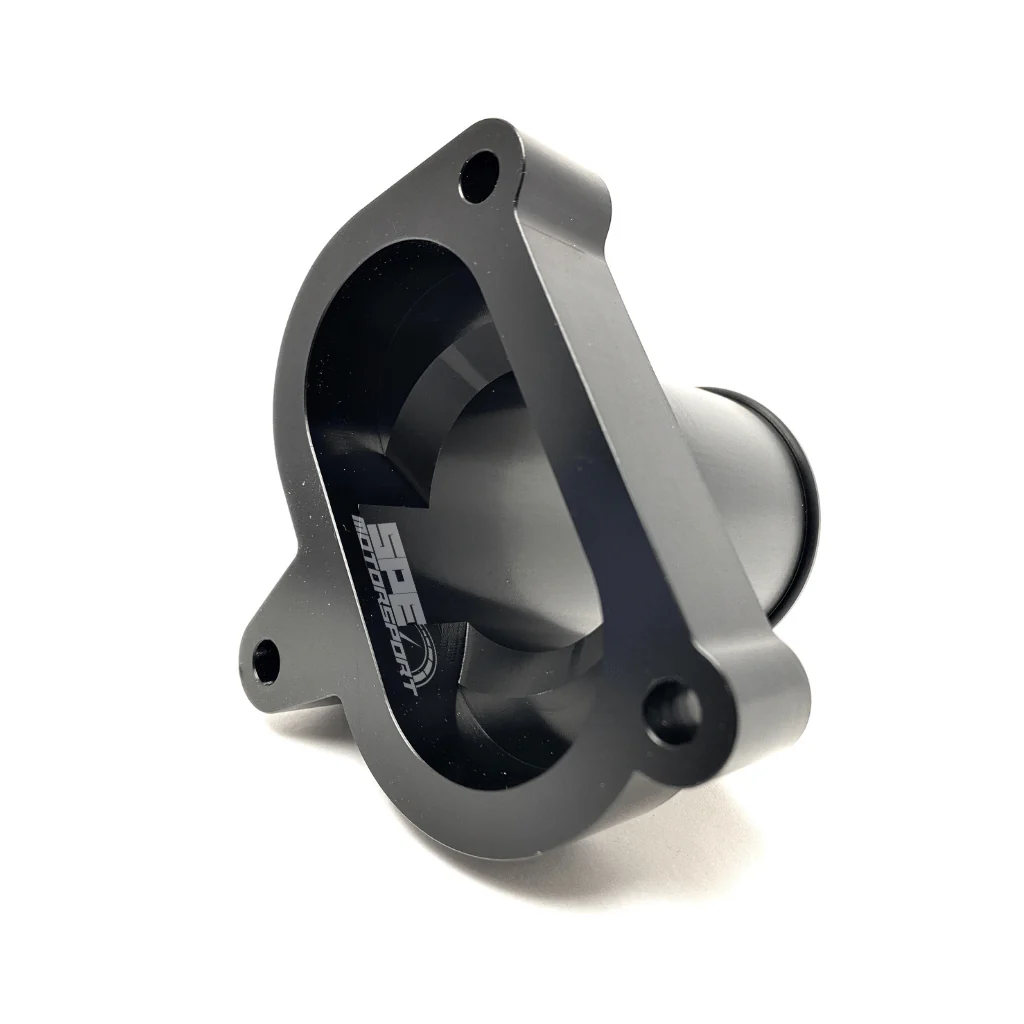

Featuring a billet CNC aluminum radiator adapter and a billet CNC aluminum thermostat housing, both with a black anodizing to complement most engine bays. This also prevents any potential for leaks and has a direct connection from the billet thermostat housing to the silicone hose, thus eliminating the quick connection for a reliable seal.

Part Number: SPE-S100164

Features

• Simple, quick installation
• 5-ply polyester reinforced silicone material that withstands higher temperatures and pressure
• Billet aluminum engine and radiator connects for a fast and easy install to stock or aftermarket factory replacement radiators
• Eliminates quick connect on the engine side of the radiator hose, which is prone to leaking
• Designed to outlast and outperform brittle factory rubber hoses

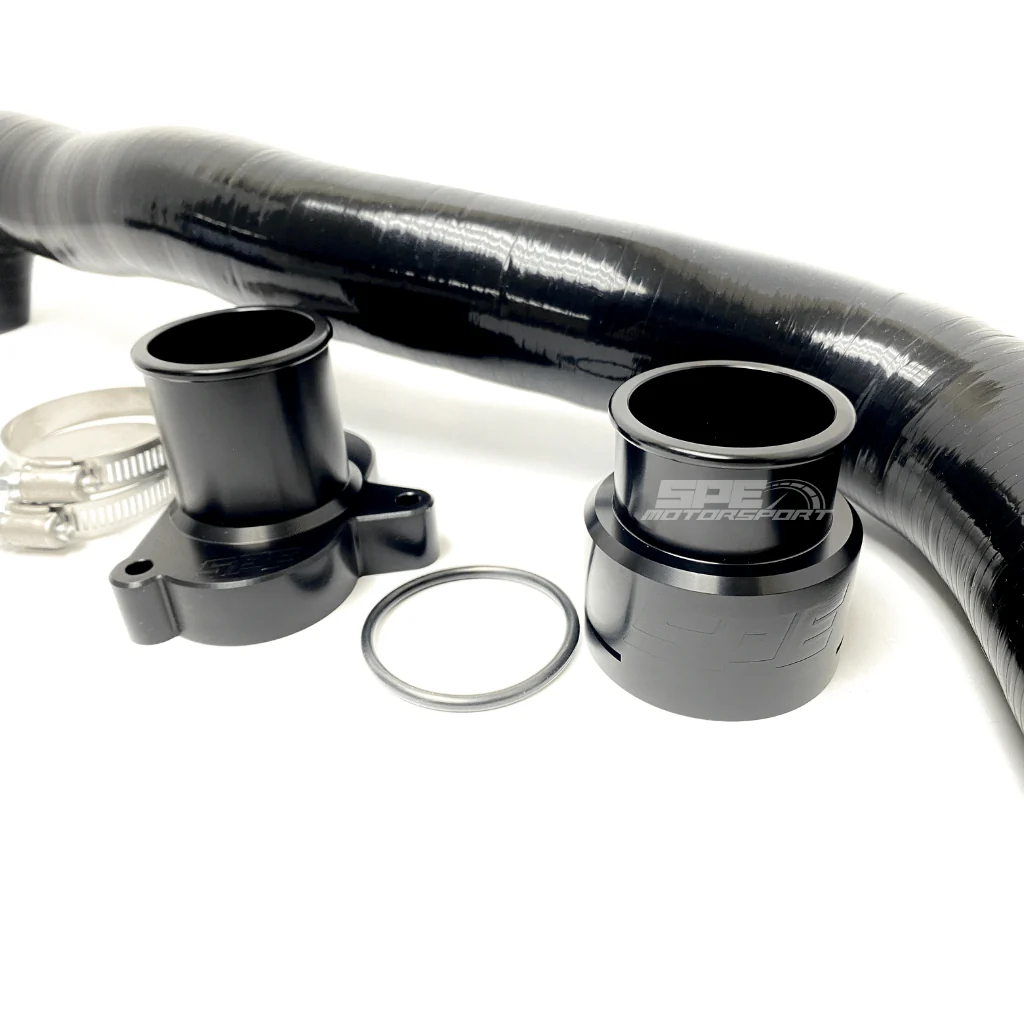

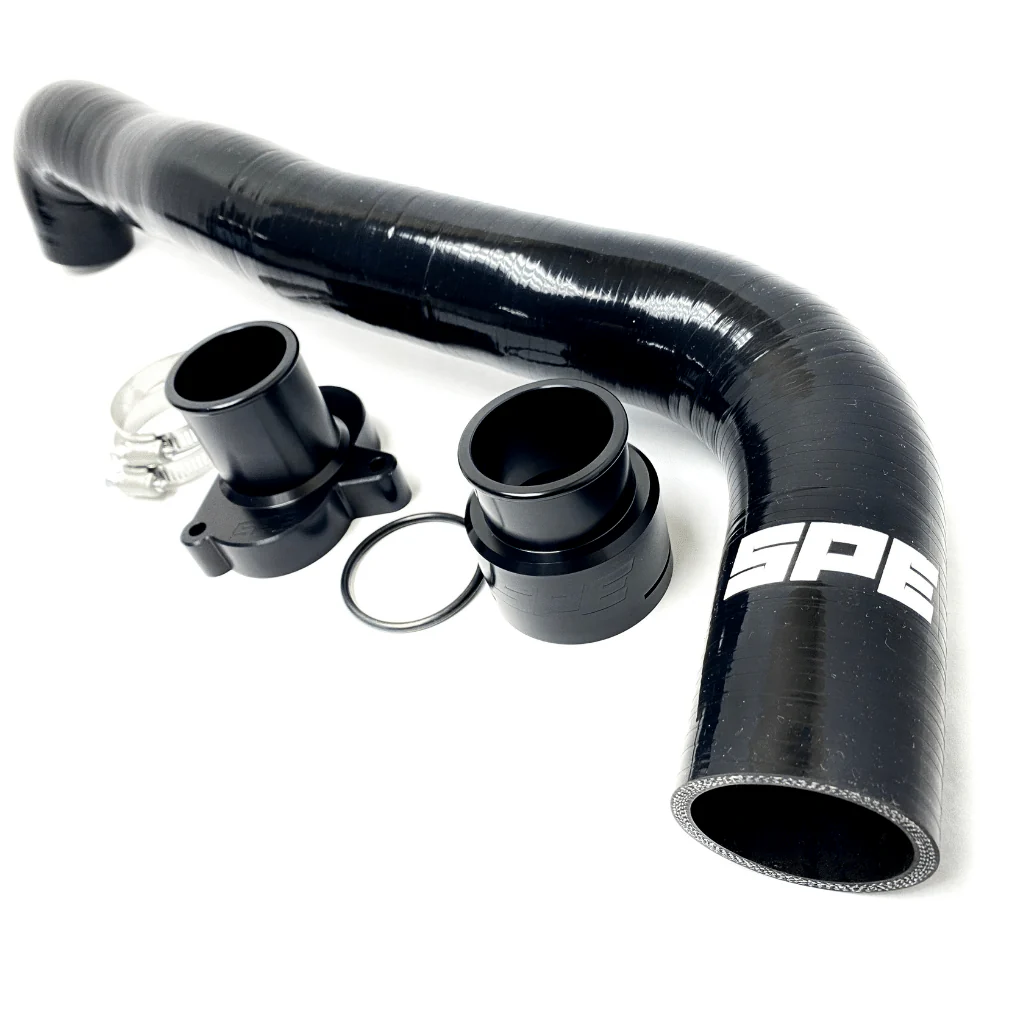

Includes:

• Billet Aluminum Radiator Adapter
• Billet Aluminum Thermostat Housing
• 5-ply Polyester Reinforced Silicone Hose
• Hose Clamps
• O-Ring

Notes

• Some 20/ 21 model year trucks may have a T assembly in the radiator hose. If your truck has it, trim roughly 2" from the hose and install it in the factory location. You can use the clamps as a guide to trim the hose. Place the clamp where you would like to cut. Using a razor blade, cut around the hose using the edge of the clamp as a guide.
