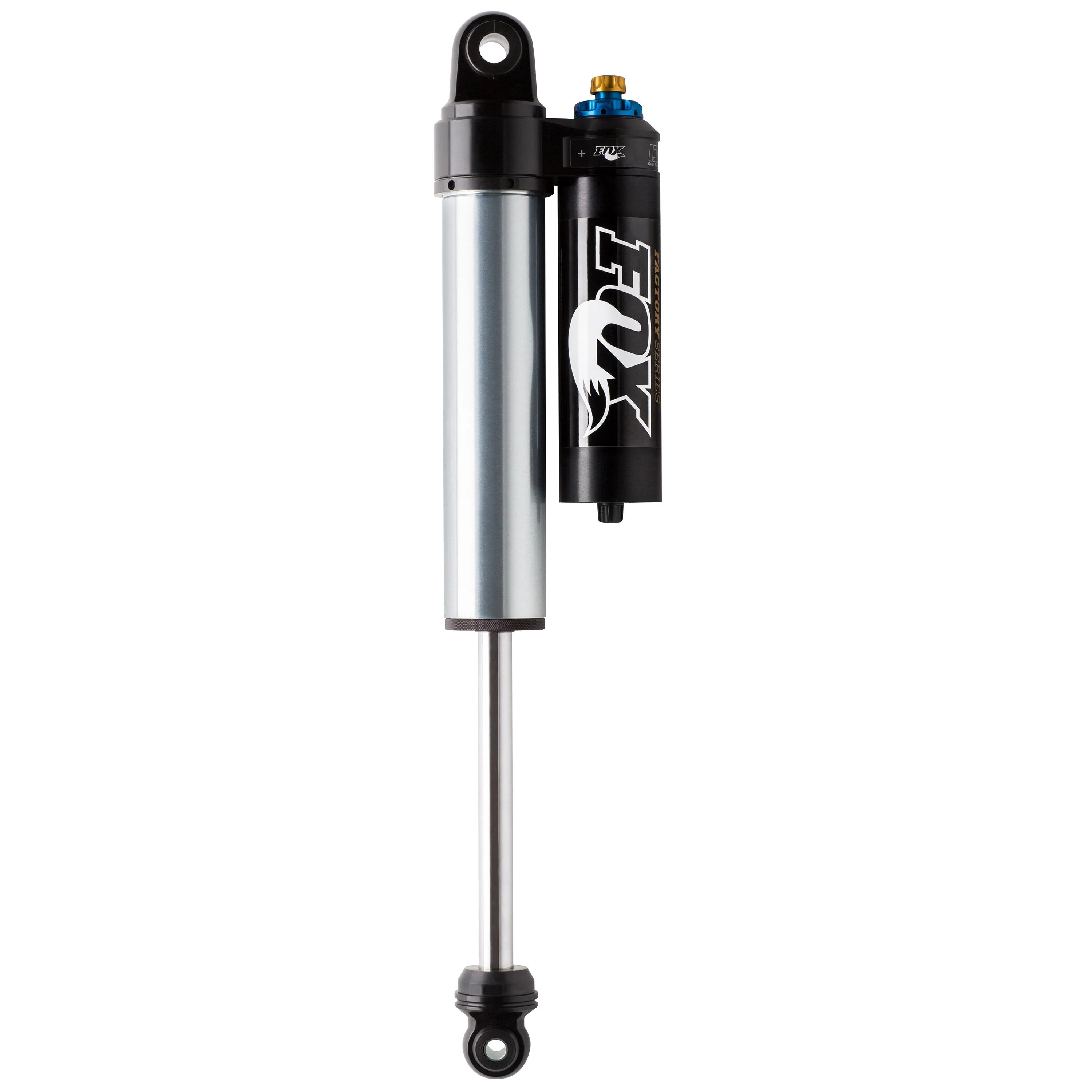

2012-2018 Ranger 2.5 Factory Race 0-1.5" Lift Rear Shock (883-26-001)

Description

Fits

Year	Make	Model
2012 - 2018	Ford	Ranger



Performance Race Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from the Off-Road race shocks; they've been thoroughly perfected in the most brutal conditions. These shocks provide improved damping in any terrain; Experience the incredible performance and precise control the Race Series 2.5 Reservoir shocks deliver.

Part Number: 883-26-001

Features

• Finned External Reservoir System Dissipates Heat Fast
• Quick Switch Compression And Rebound Adjusters
• Live Valve Terrain Adaptive Technology
• 2.5" smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow Piston design
• Application-specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 24.66"
• Compressed Length: 15.7"
• Top Mount: EB2
• Bottom Mount: ES4
• Travel: 8.96"
• Rear Lift Height: 0-1.5"
