2014-2025 Cummins Alpha HD Pro S Air Suspension Kit (HP10206-J-S)

Description

Fits

Year	Make	Model	Engine
2014-2025	Dodge Ram	2500 2WD/4WD	6.7L Cummins

Note: Will NOT fit with factory optional air-equipped vehicles. Will fit both Gas/Diesel applications.

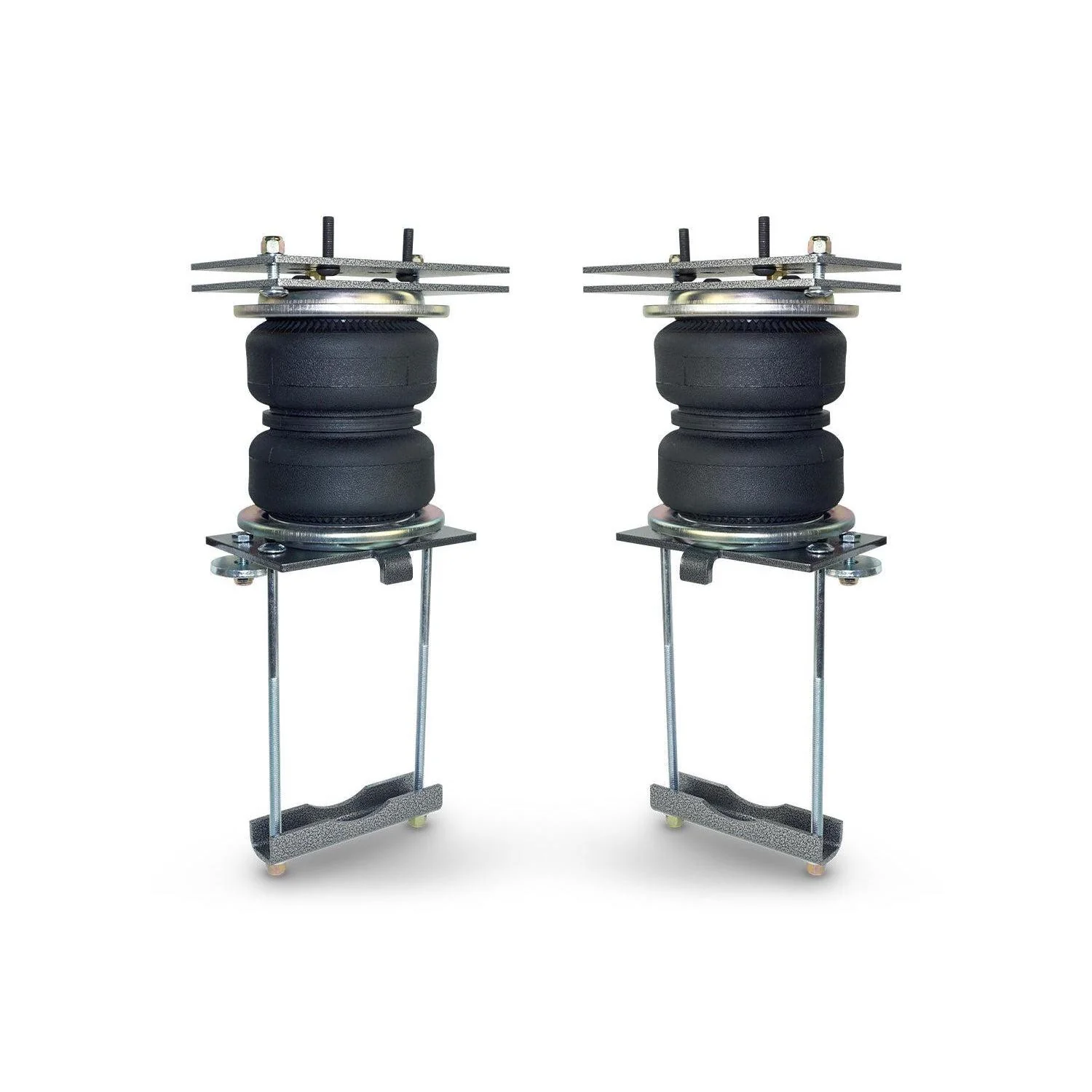

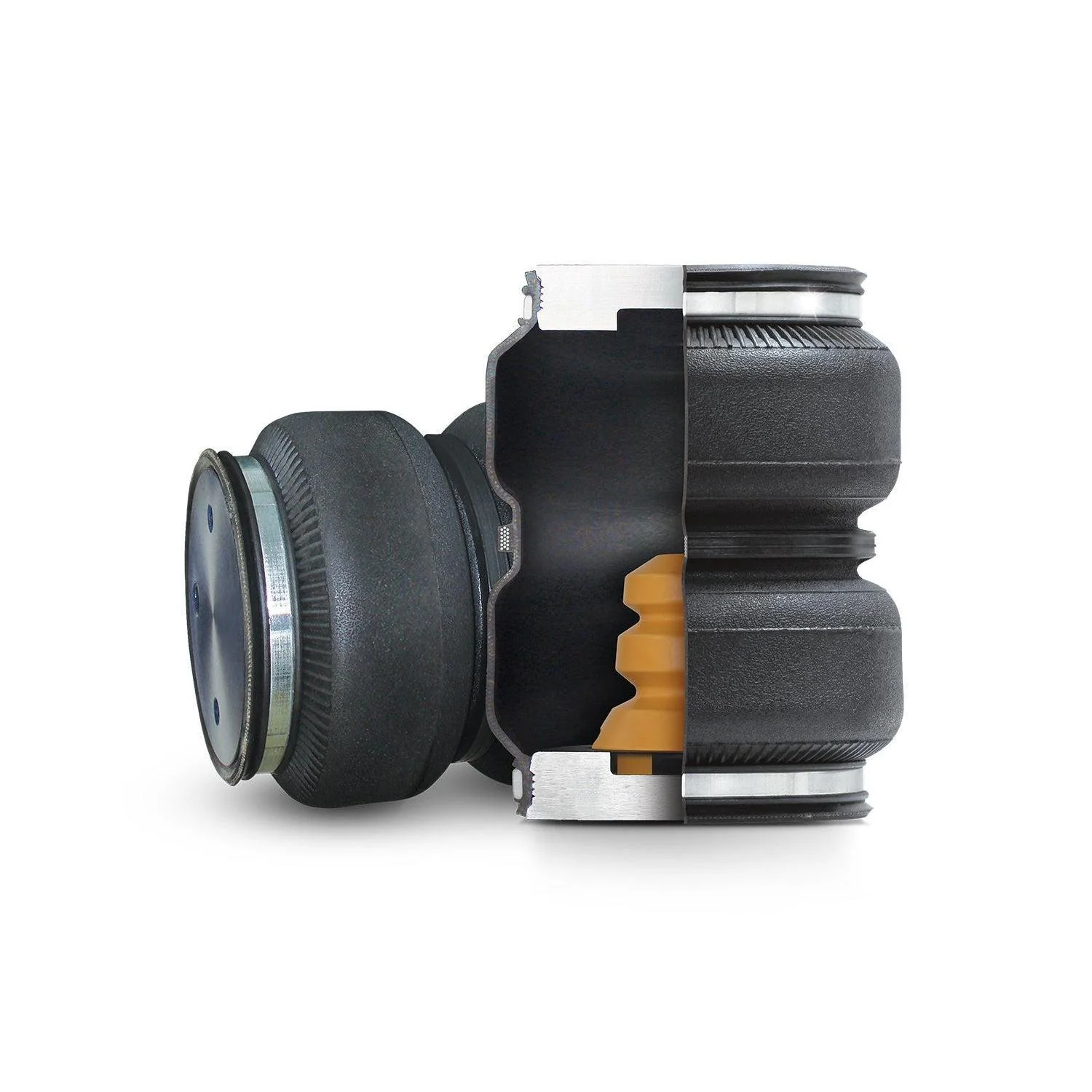

The ALPHA HD PRO S Air Suspension Kit eliminates truck sag, sway, and bottoming out. Built with corrosion-resistant end caps and 20 support wires for durability, it includes a polyurethane bumper inside the bag to prevent damage. Designed to maintain ride comfort even without air, this kit offers a reliable solution for heavy loads and towing. Available with or without the internal bump stop.

Part Number: HP10206-J-S

Features

• 5,000 lbs of load leveling capacity
• 2-hour install time
• Lifetime warranty
• Can be run at 0 psi

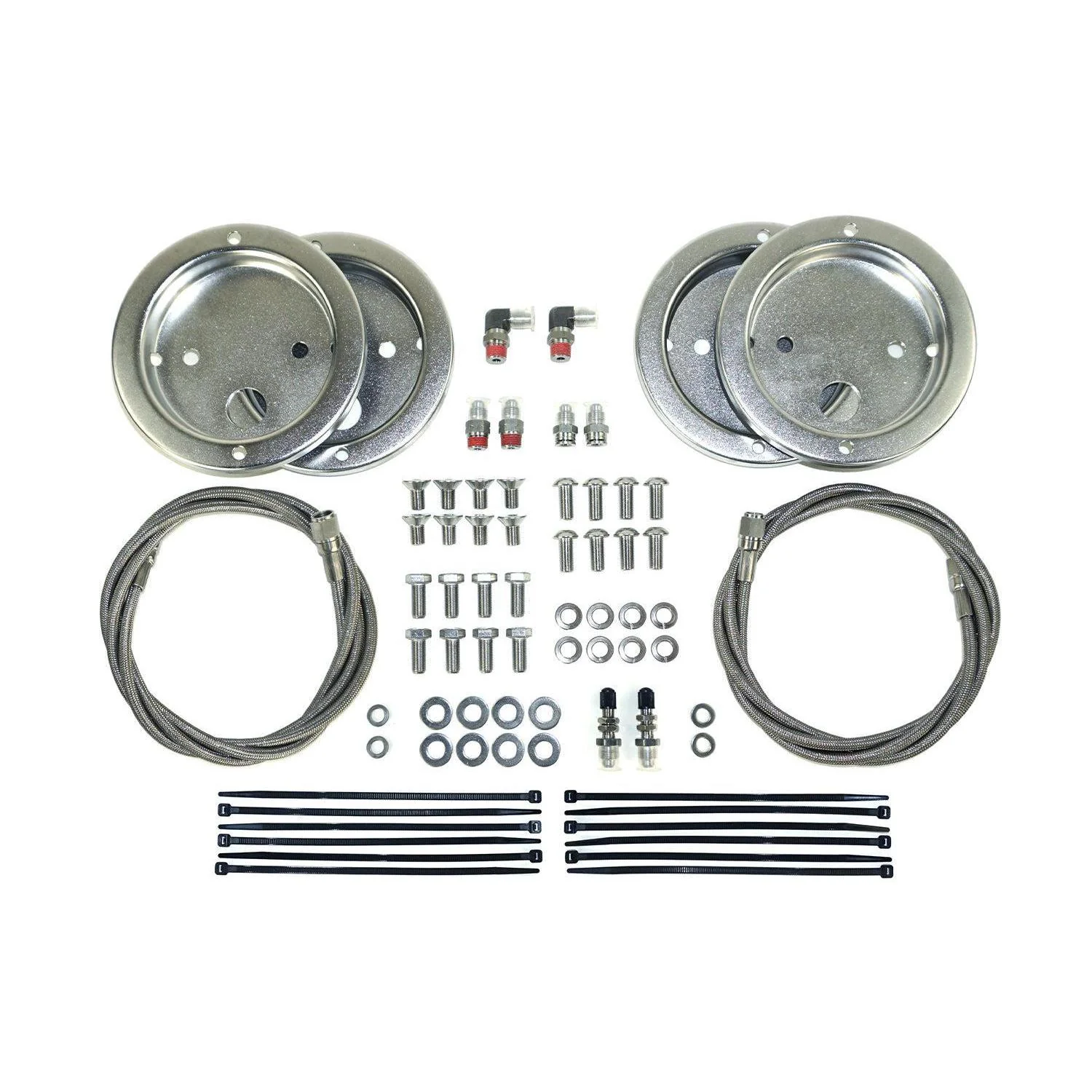

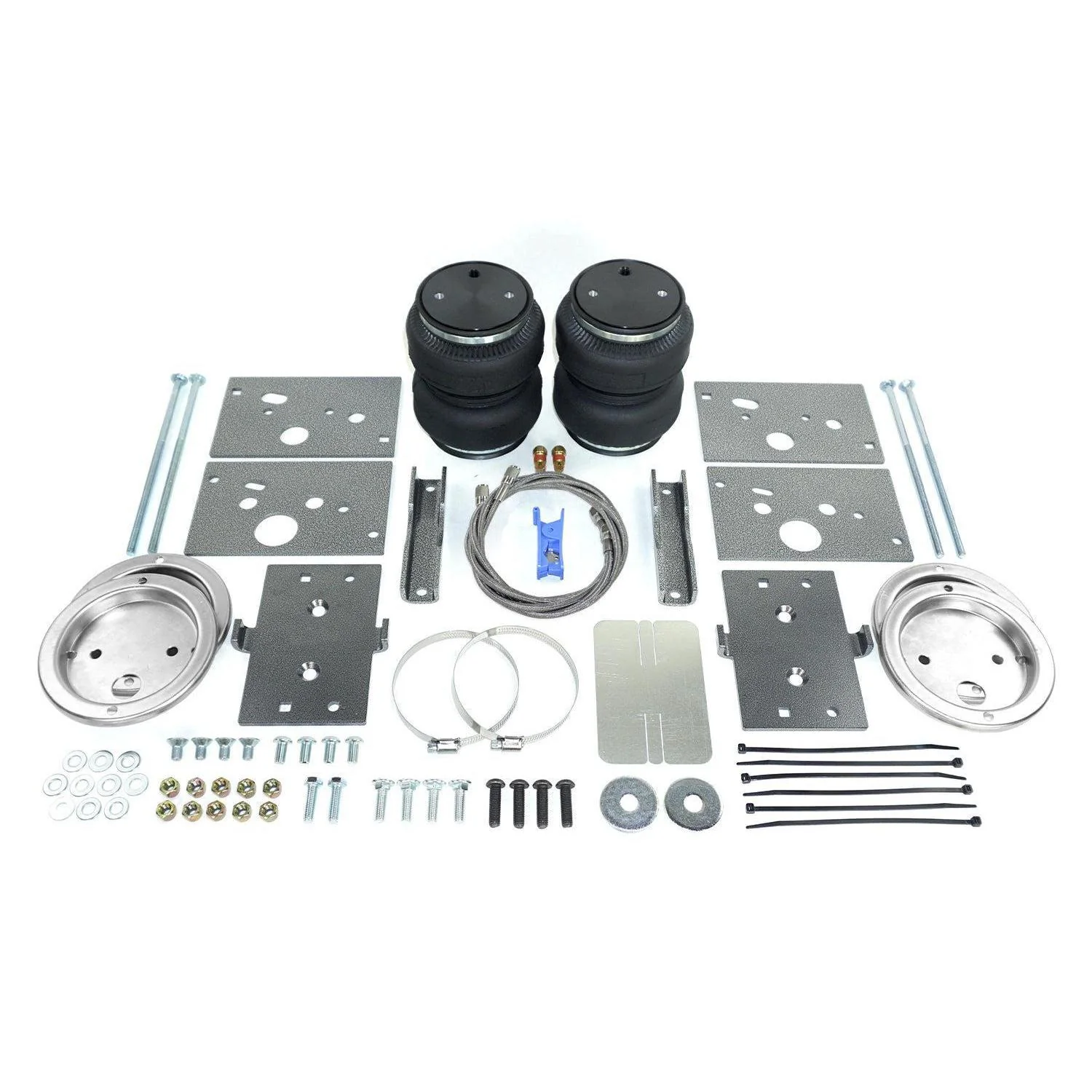

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

Installation

• Click Here
• Click Here - Stainless Steel Hardware
• Application Guide

Notes

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Additional Info

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these airbags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off-roading, air bags without bump stops are recommended. Consider the HP10206 ALPHA HD air bag.

Warranty

Parts Only

• Click Here
