2015-2021 Tundra 2" SST Lift Kit (69-5420)

Description

Fits

Year	Make	Model
2015-2021	Toyota	Tundra TRD Pro



Due to ReadyLift's ever-popular 4" SST Lift Kit, they've identified a consumer desire to engineer a similar kit for the Toyota platform. As the TRD Pro's already come from the factory with 2" of lift, this 2" Rear SST Lift Kit provides you with everything needed to safely, properly, and effectively lift your Tundra without sacrificing ride quality, handling, or putting stress on other suspension components. Featuring DOM steel tube upper Control Arms with extended-duty ball joints, these retain OEM ball joint angles while providing necessary strut/coil over clearance during suspension droop cycling.

Part Number: 69-5420

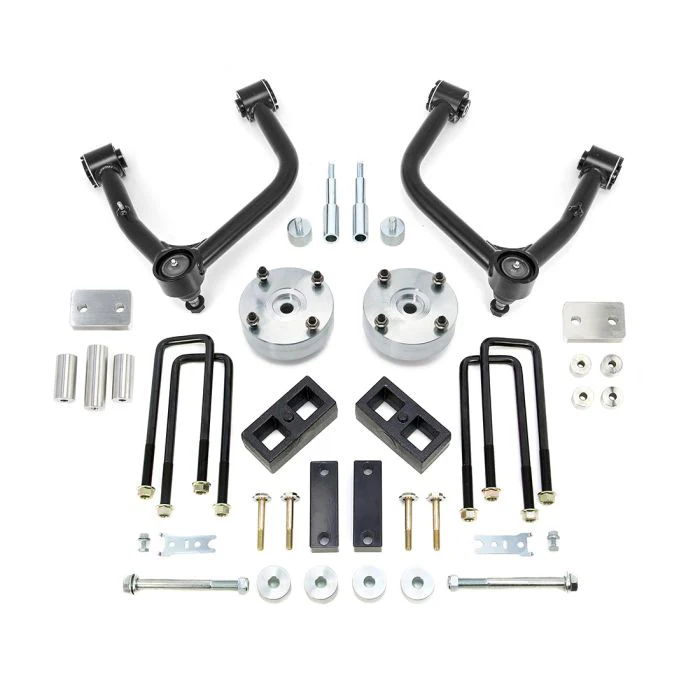

Features

• Strong DOM powder-coated tube steel upper Control Arms with new ball joints and bushings
• CNC machined billet aluminum top hat replacement spacers designed to provide 2" of lift without compromising the factory 2" lift
• Differential drop brackets which lowers the differential on 4WD models. This keeps the near-factory CV angle specifications that Toyota built into these great trucks
• Powder-coated sway bar frame mount spacers to keep your sway bar working properly
• Skid Plate Spacers are provided to adjust the TRD Pro skid plate down when using differential drop brackets
• E-coated finish on the strut extensions, rear blocks and u-bolts
• Includes shock stem extensions to extend the mounting length of the factory Bilstein rear shocks

Additional Info

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 for no rub on a 9" wide wheel with +12 offset
• 17" - 35X12.5R17
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22

Notes

• For use only on 2015-2021 Tundra TRD Pro w/ Bilstein/Fox TRD Pro shocks

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
