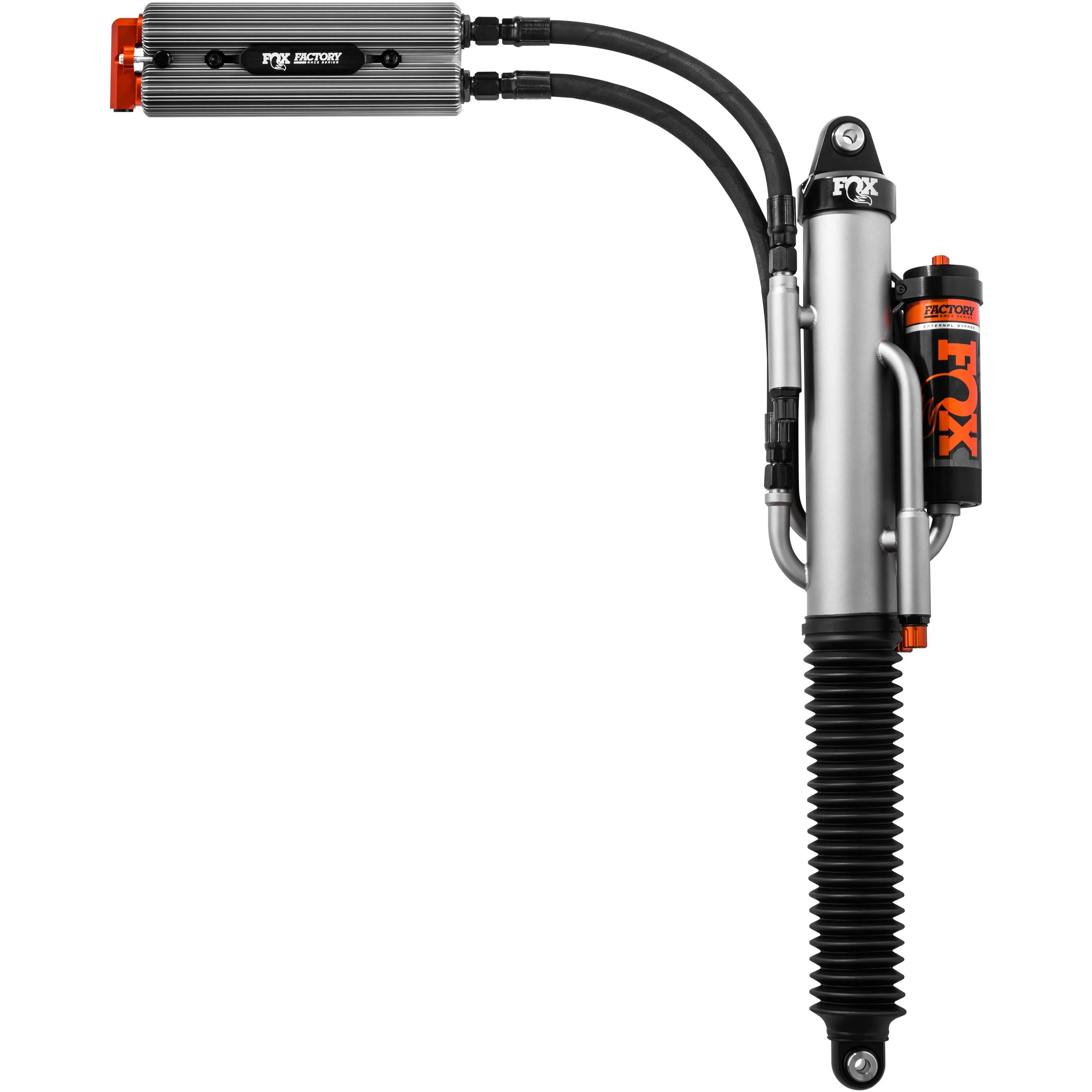

2017-2018 Raptor 3.0 Race Series 0-1" Lift External Bypass Rear Coilover (883-09-141)

Description

Fits

Year	Make	Model
2017 - 2018	Ford	F-150 Raptor



Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).

This kit delivers the next level of off-road performance without sacrificing everyday ride quality.

Part Number: 883-09-141

Features

• Durable Zinc Plated Seamless Alloy Body
• Quick Adjust Bypass Knobs For Easy Adjustments
• External Reservoir System Dissipates Heat Fast
• 3.0" steel Body, proprietary coating for improved durability
• Hard anodized impact extruded aluminum finned remote reservoir with New Recirculating Reservoir Bridge
• Hard anodized CNC-machined 6061-T6 billet aluminum
• 7/8" 17-4 H900 hard chrome plated stainless steel shaft
• Hard anodized 6061-T6 billet aluminum high-flow race Piston
• Valving Specific for Gen 2 Raptor to maximize performance and comfort

Specs:

• Extended Length: 31.15"
• Compressed Length: 18.88"
• Top Mount: Eyelet
• Bottom Mount: Eyelet

• Travel: 12.27"
• Rear Lift Height: 0-1"
