2017-2019 Powerstroke DRW 4" 4-Link Lift Kit (BDS1577H)

Description

Click here to customize this Kit

Fits

Year	Make	Model	Engine
2017-2019	Ford	F350 Super Duty DRW	6.7L Powerstroke



BDS Suspension expands its listings for the Powerstroke diesel trucks with new 4" 4-link conversion systems. Designed to improve the looks and performance of your Ford Super Duty, these new kits join existing radius arm variants to offer improved strength and handling on/off-road. This kit includes everything necessary to correctly lift them for improved off-road capability with room for larger tires while improving overall vehicle handling.

Part Number: BDS1577H

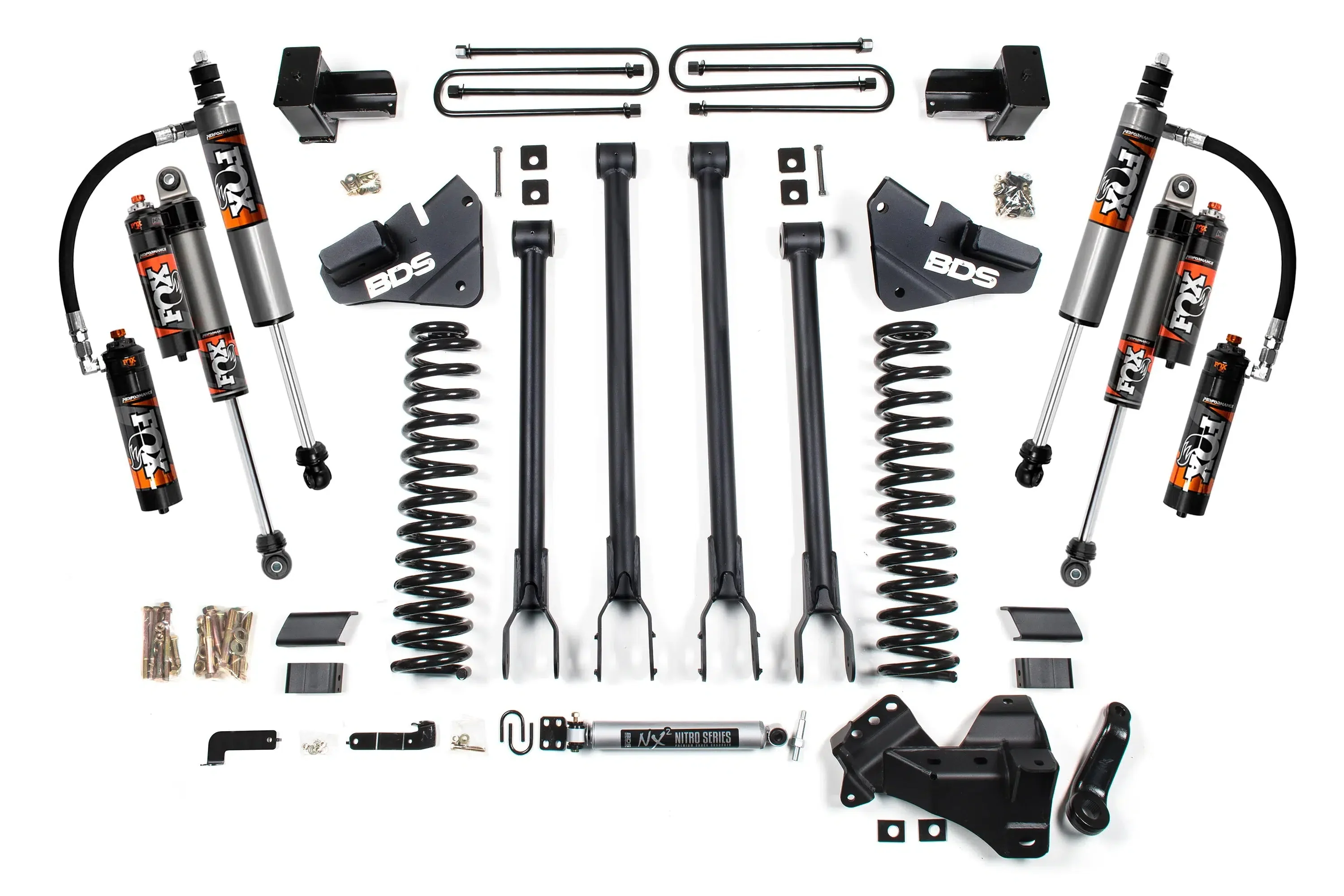

Features

• Diesel Specific 4" Pro-Ride coil springs
• Forged Drop Pitman arm
• Bump stop extensions to limit suspension compression
• Sway bar drop brackets
• Brake line relocation brackets
• HD Track bar bracket to correct steering
• 1/4" steel 4-link conversion for improved strength/handling
• Replacement rear lift blocks to level out the stance
• Allows fitment of up to 37" Tires
• NX2 gas shocks

Tire & Wheel Combinations:

• 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
• 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
• 37 x 12.50 w/ 20 x 9 and 4.5" - 5"

Notes

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups
• Installation requires a torque wrench capable of 405 ft-lbs


Installation

• Click Here For Installation Instructions
• Difficulty: 4 (where 1 = easiest and 5 = complicated)
