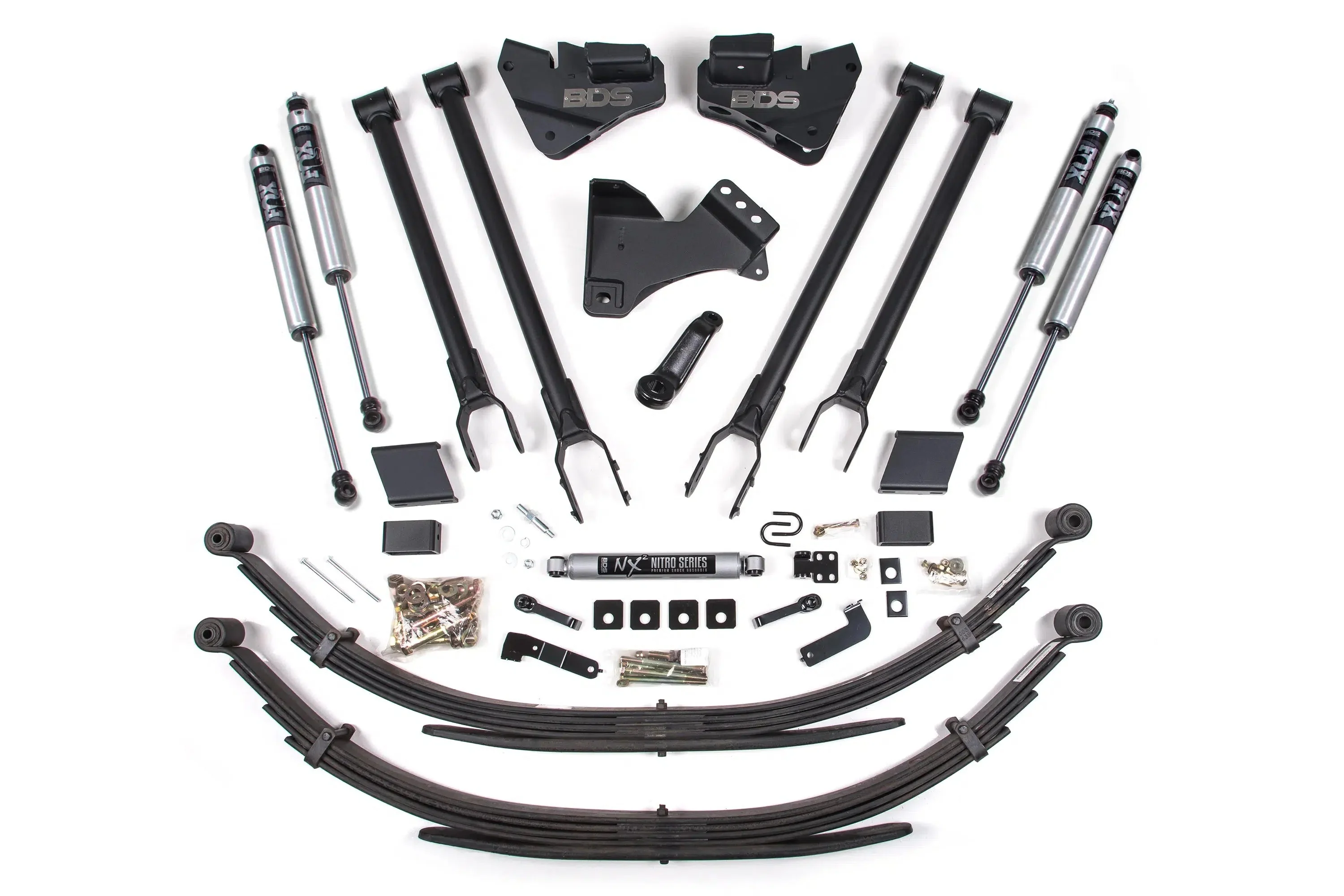

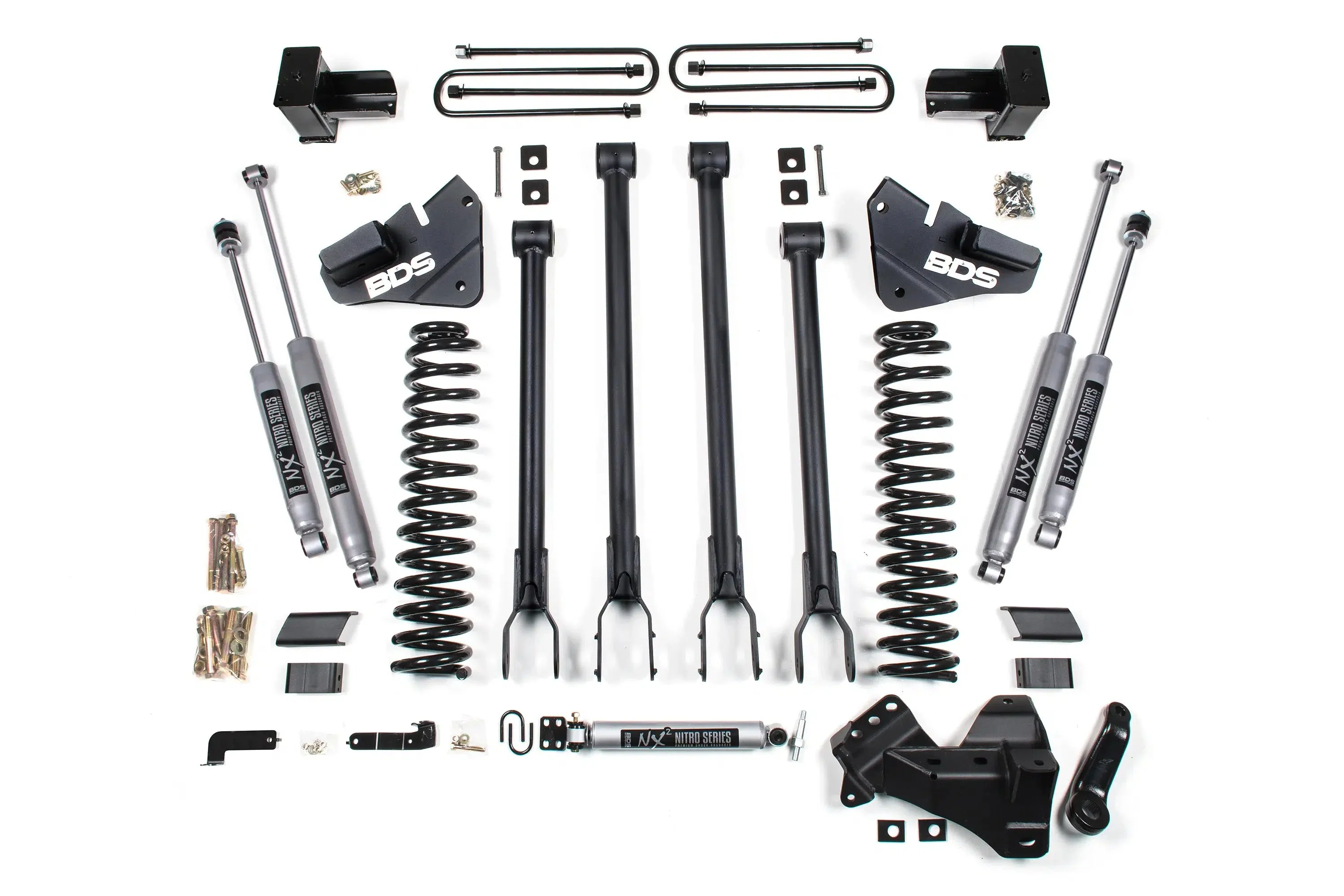

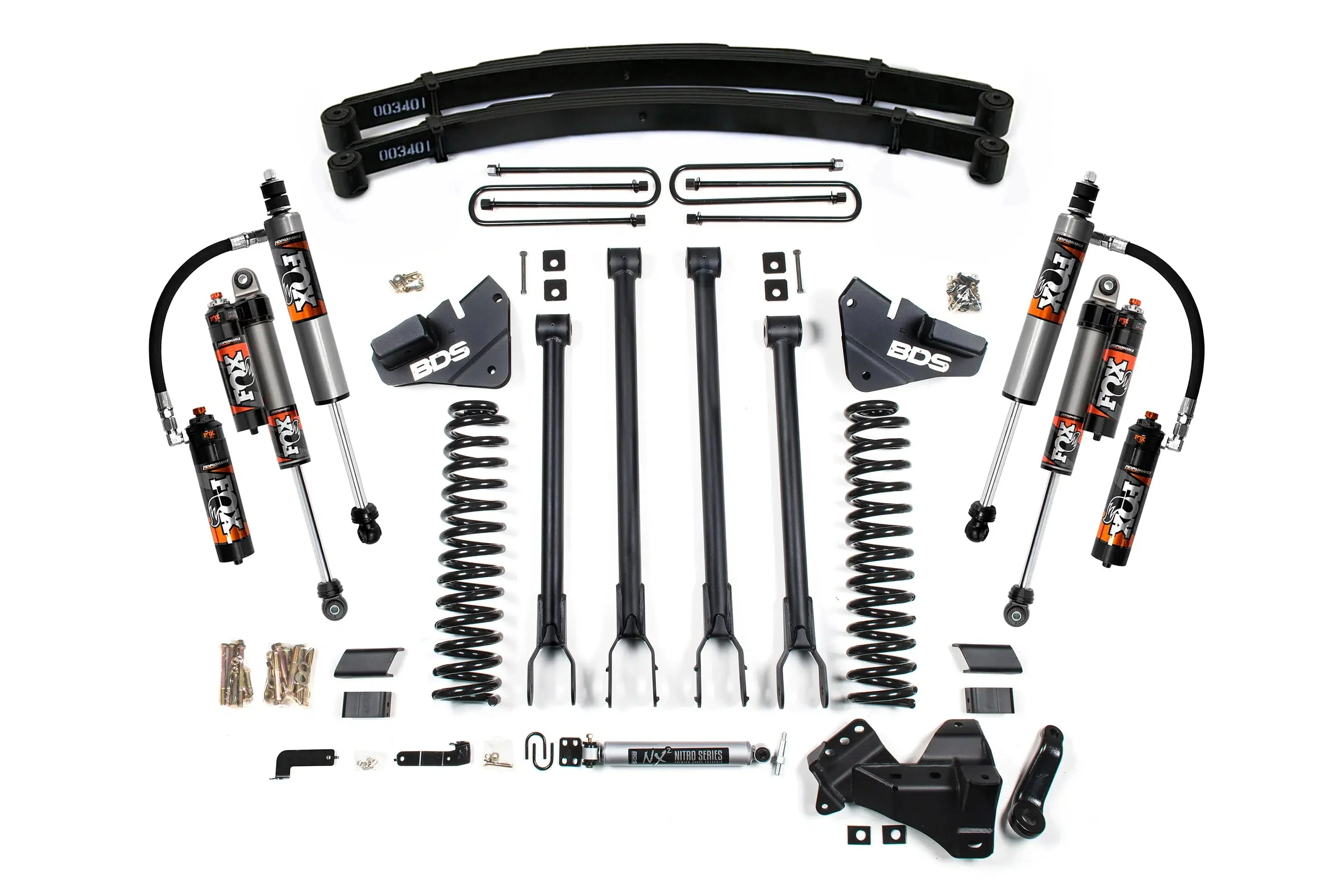

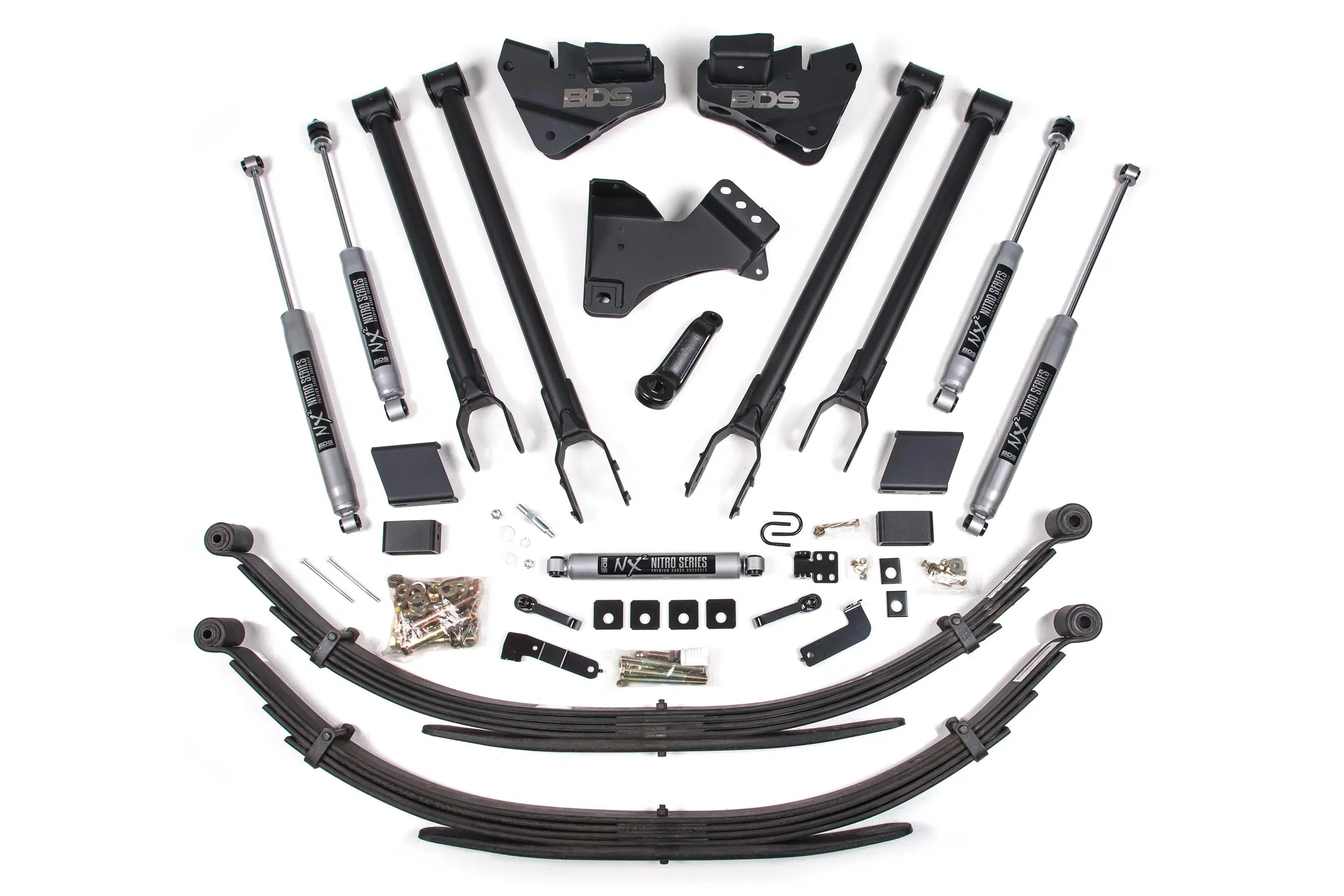

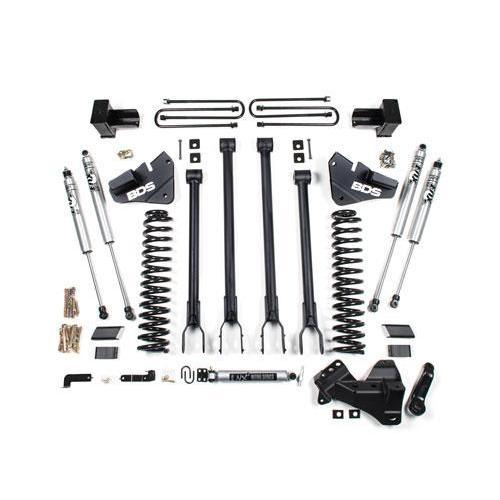

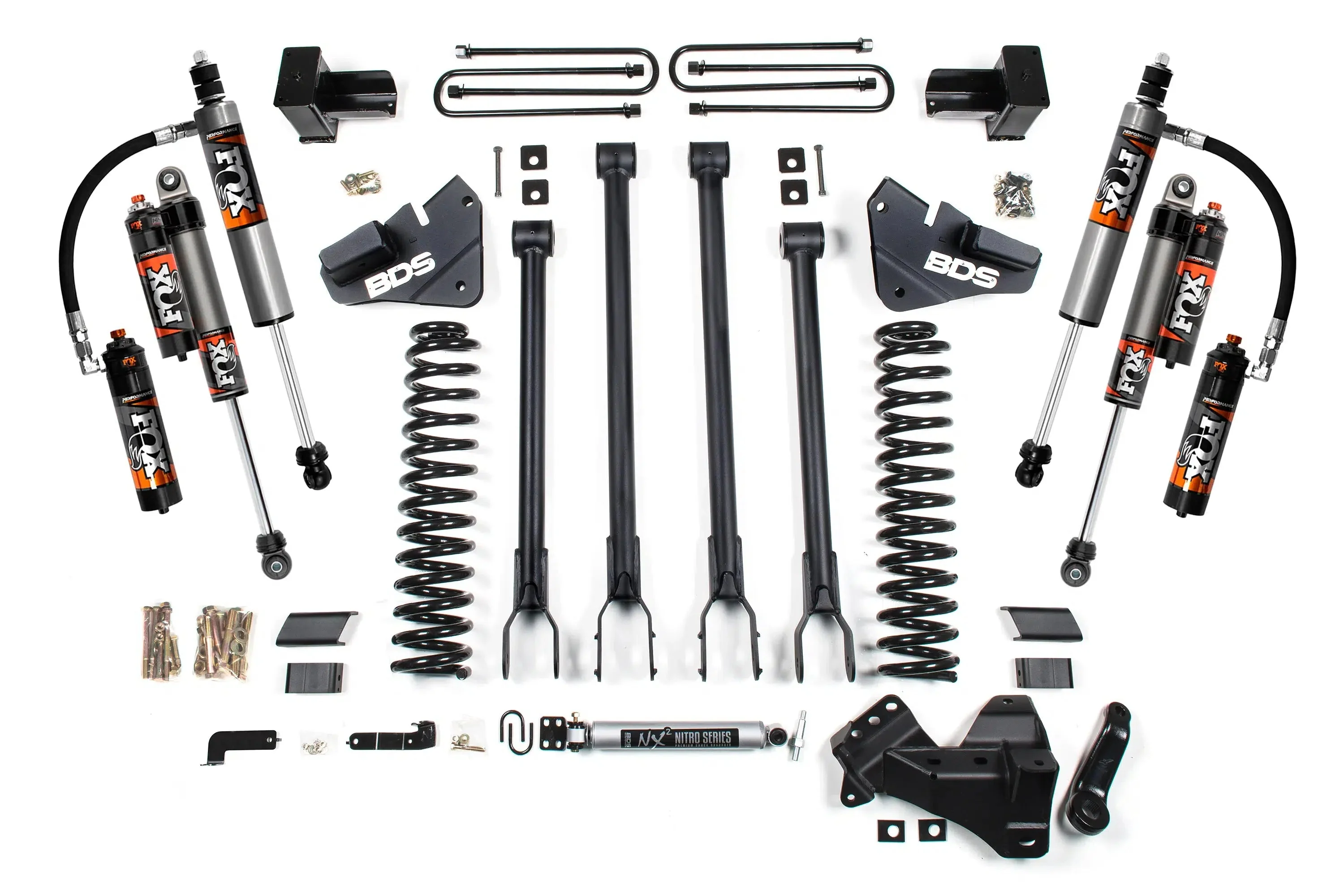

2017-2019 Powerstroke 4" 4-Link Lift Kit (BDS1537H)
Description
Click here to customize this Kit
Fits
| Year | Make | Model |
| 2017-2019 | Ford | F250/F350 Super Duty w/ 6.7L Powerstroke |
Take your new Super Duty to the next level with the tried & true BDS 4-link conversion system. A big upgrade for your truck, these high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel. In the rear of these 4" systems, BDS offers multiple lift options for both the OE 2-leaf main spring pack & OE 3-leaf main spring pack equipped trucks. With BDS NX2 Series shocks to compliment the front setup for all-around impressive performance.
Part Number: BDS1537H
Features
- 4-Link front suspension design that replaces the factory radius arms.
- Upper & lower 4-link control arms are made from heavy wall 2" OD DOM steel tubing.
- Massive 2-1/2" greaseable polyurethane bushings create the connection at the new frame mount while the opposite clevis end mounts to the OE rubber bushings at the axle.
- The combination of a replacement track bar bracket & dropped pitman arm decrease steering operating angles and centers the axle.
- A replacement single steering stabilizer
- Sway bar drop brackets & brake line relocation hardware compensate for the added ride height
- Full replacement coil springs
- A transfer case indexing kit is included to alleviate front driveline angles & allow correct operation of the 4wd system at all speeds.
- The indexing kit includes an indexing plate with hardware
- Full replacement HD transmission crossmember.
- Rear lift options include a block kit for factory 3-leaf main springs or block/add-a-leaf kit for factory 2-leaf main springs. A third option is a full set of replacement glide-ride leaf springs that directly replace both style factory spring sets for a smooth, level ride.
Tire & Wheel Combinations:
- 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 20 x 9 and 4.5" - 5"
Notes
- Front exhaust modification may be required to clear the front driveshaft (Gas Only)
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- If your truck is equipped with a factory rear sway bar add: 123005
Installation
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Original: $1,656.57
-65%$1,656.57
$579.80Product Information
